Introduzione

If you need to remove the cover over the hard drive and memory sticks this guide will show you how.

  1. EehGlSRxSWjAGTSq
    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

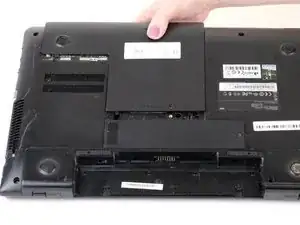

  2. 3Wd1KpC3AD3qZLpV
    • Slide the cover 1/4" towards the front of the laptop.

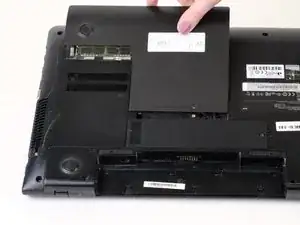

  3. PwQGHKLYDGufoAP3
    • Then, lift the cover off.

Conclusione

To reassemble your device, follow these instructions in reverse order.
