Samsung NP510R5E-A01UB Battery Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

5 - 10 minuti

Introduzione

The battery is the power source for the device, without it the device is useless. This guide will help you replace it properly.

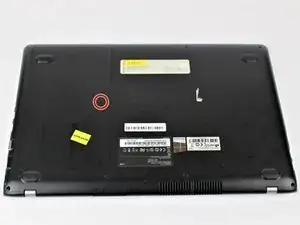

  1. UpkBwJOmUVrhQM3o

    • Make sure the device is powered off before beginning.

    • Using the Phillips #0 screwdriver, remove the 6.5mm long screw in the area circled.

  2. WKDtNPTo4t4NYupx

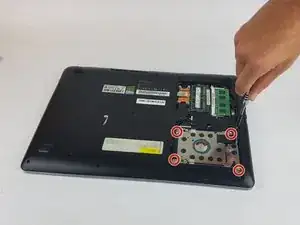

    • With the cover removed, unscrew all four of the 4.75mm long screws using the Phillips #0 screwdriver.

  3. sJUAKvHuBfmBJZC6
    sJUAKvHuBfmBJZC6
    owNDkFPnIPjHDHuG

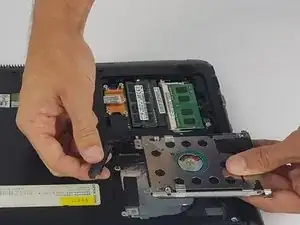

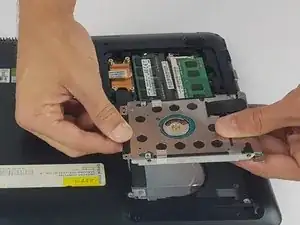

    • Unplug the connector from the hard drive by pulling straight out.

    Black bullet. Installing and setting up new hard drive?

    Watis Ekthuvapranee -

  4. H1EDsE2IBxUUjRqs
    H1EDsE2IBxUUjRqs
    DxPsnJXIxsbsK4LW
    HuqvSLYBGVXR245K

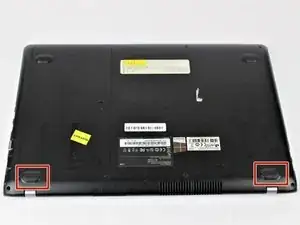

    • Remove the two rubber feet with arrows by them on the back side to uncover two screws.

    • Unscrew the four silver 4.4mm long screws near the hard drive.

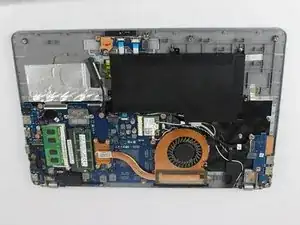

    • Unscrew the remaining nine black 6.5mm long screws. Then remove the back casing using a pry tool if needed.

  5. XUwVsPWT1oVsYggc
    XUwVsPWT1oVsYggc
    kmjFPtXFWQWgU44S
    pvCSYrPjN52xqZnT

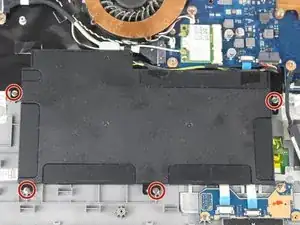

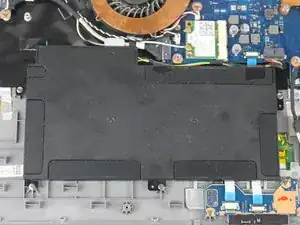

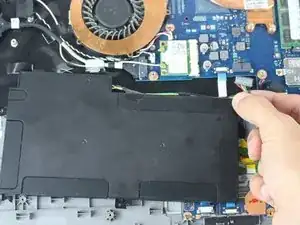

    • Use the screwdriver to remove the four 3.5mm long screws holding the battery in place. Then carefully pull the battery's connector cable out to remove the battery.

    Got one black dot there.

    Watis Ekthuvapranee -

Conclusione

To reassemble your device, follow these instructions in reverse order.
