Introduzione

This guide will give a step by step walk through on how to remove the back panel of the laptop. Before replacing the back cover make sure the device is unplugged and turned off as a safety step.

  1. epEOoEwGnN1YBbYC
    epEOoEwGnN1YBbYC
    MrDuct3lZfHsfKa1

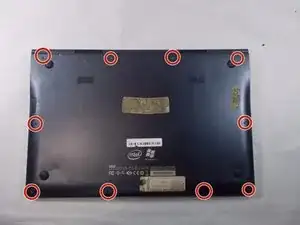

    • First turn the computer over so you are looking at the back panel.

    • Next locate all ten Phillips #0 3.5mm screws on the back panel that are securing it down.

  2. 2O3aYhAFgIRn23cg

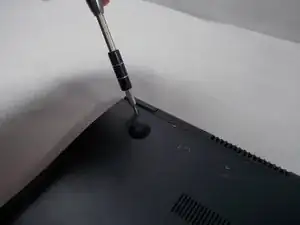

    • Next remove all 3.5mm Phillips #0 screws shown in the previous step.

  3. uUdsETAIu5tq5VBS
    uUdsETAIu5tq5VBS
    HW6PV5bL4dOCFm1R

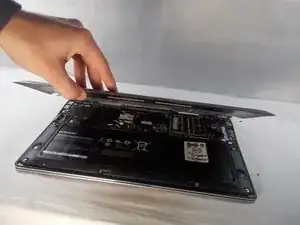

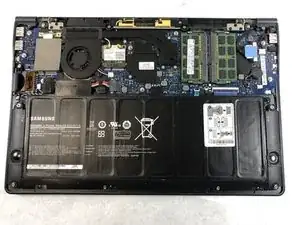

    • After all screws are removed, lift up the back panel as shown.

Conclusione

To reassemble your device, follow these instructions in reverse order.
