Samsung S760 Front and Back Case Replacement Guide

Scritto Da: David Sepulveda
  • Commenti: 1
Samsung S760 Front and Back Case Replacement Guide

Difficoltà

Moderate

Passi

5

Tempo Necessario

5 minuti

Introduzione

How to remove the front and back cases of the device

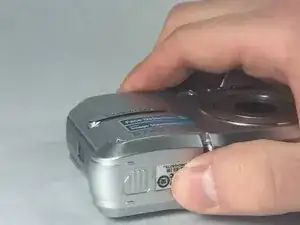

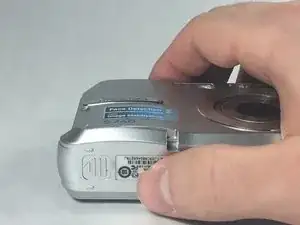

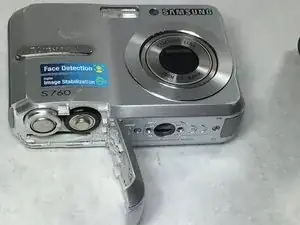

  1. NOOZO6RYDpGXQjPj
    NOOZO6RYDpGXQjPj
    mLoqktAWipPKsgWG
    BKvmxXpKgDpNmdLj

    • Placing your thumb on the battery cover, push outwards, away from the camera in the direction the arrow is pointing. If done correctly when it's completely unhooked, the latch will open.

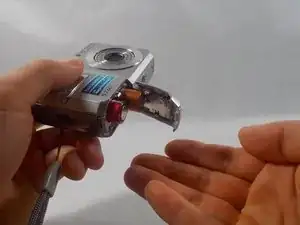

  2. oDFEpog42d4tHiKR
    oDFEpog42d4tHiKR
    2slY2GyZNtpeKcWM

    • Tip the camera as to gently slide the batteries out of the camera.

    hello

    This camera which battery is use

    Saidali R -

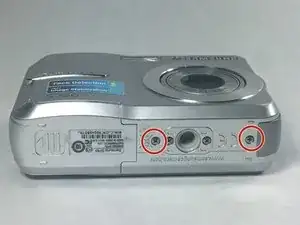

  3. W3Zr2hdBrJ5vlQhY
    W3Zr2hdBrJ5vlQhY
    DEinWESufBSYXLTN
    MT5roF3lIUgWN352

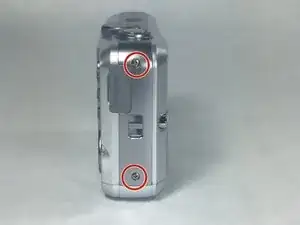

    • All screws in this camera are removed using the Phillip Screwdriver #000 bit. Also, all dimensions included refer to screw lengths.

    • Locate and remove the six 4mm screws on the sides of the camera.

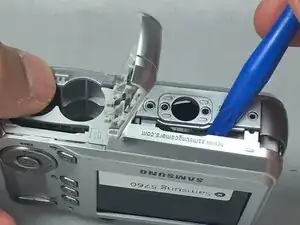

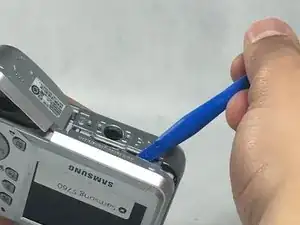

  4. DFqDAb5GBSyAcTXC
    DFqDAb5GBSyAcTXC
    C1oIAaxSosO12Vlv

    • Use the plastic opening tool to pry open the back case, following alongside the edge of the case if need be.

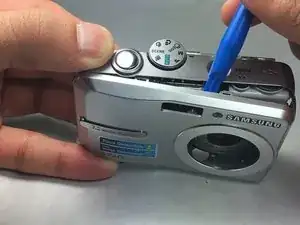

  5. GKALXMA6SVEE6JKk

    • Once the back case is removed, use the plastic opening tool to gently pry off the front case.

Conclusione

This will be used as a prerequisite to other guides. To reassemble your device, follow these instructions in reverse order.
