Samsung SPH-A500 Front LCD Display Replacement

Scritto Da: Derek Panger
  • Commenti: 0
Samsung SPH-A500 Front LCD Display Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

30 minuti

Introduzione

Breaking down the phone to replace the LCD screen.

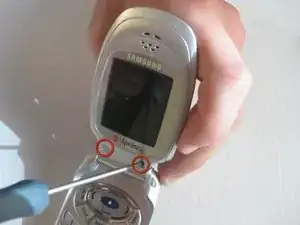

  1. 33RUGTXXKwFCIteK

    • Flip open the phone, remove the two rubber covers under the LCD screen.

    • Remove the two screws using a small Philips screwdriver.

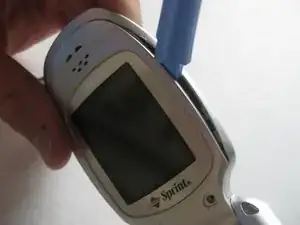

  2. ppxVjbNHD3ybKQUi

    • Using a plastic opening tool, pry open the back cover of the LCD screen.

    • Note: Some force may be required.

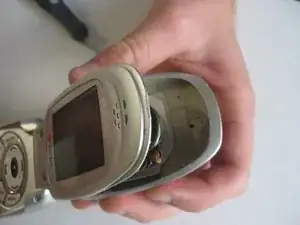

  3. GbCFU3NkOfCo5Nk1

    • Completely separate the back cover from the rest of the phone.

    • Close the phone.

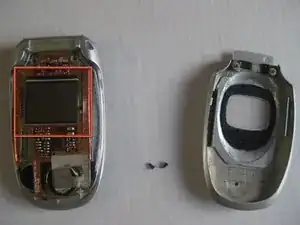

  4. SPdfCflCKr1OXZBa

    • The LCD screen is big, rectangular screen in the center of the logic board.

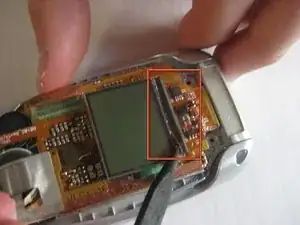

  5. bPwyA66XAeWEmJJX

    • Remove the glue and black tape that is attached to the LCD screen

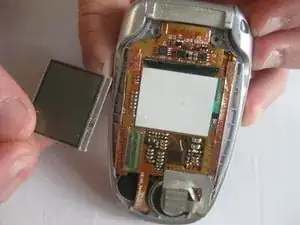

  6. EOZIWSTbUH5WFiID

    • Remove Broken LCD Screen.

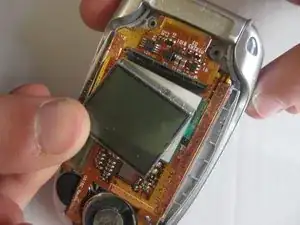

  7. yCJGVSxENURx6WGg

    • Attach the New LCD Screen, with wire point up and out to the black connector.

    • Note: Super Glue may be required to permanently attach LCD to the black connector

Conclusione

To reassemble your device, follow these instructions in reverse order.
