Samsung SPH-A500 Keypad Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

15 minuti

Introduzione

Repair guide on how to replace the keypad in a Samsung SPH-A500.

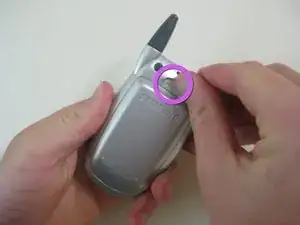

  1. EfjPIjVnMTMfwqpL

    • Turn phone over

    • Push the gray tab above the battery forward to remove the battery.

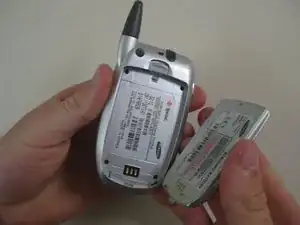

  2. 4FLmQGKnoD5P2rBE

    • Remove the battery from the phone, which will reveal four screws at the corners of the phone.

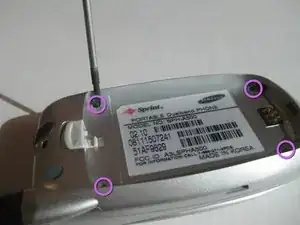

  3. otLFT5MPh1XxeUnl

    • Remove all four screws using a small Philips screwdriver.

    • Note: The screws do not need to be completely removed from the case, as long as they are unscrewed.

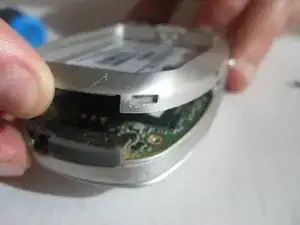

  4. K3Kjio6bNIVSEGwd

    • Remove back cover by carefully prying it open.

    • Note: Some force may be required.

  5. c6eUnm5jDUUe1LKO

    • Pull the side tabs outward while simultaneously lifting up the circuit board.

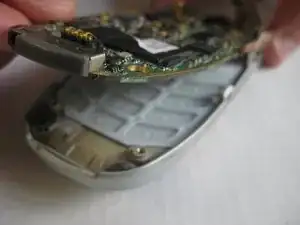

  6. kwiYXyjFKylxOBZJ

    • Lift circuit board from the bottom of the phone.

    • WARNING: DO NOT completely remove circuit board from the phone, since it is still attached at the top of the phone.

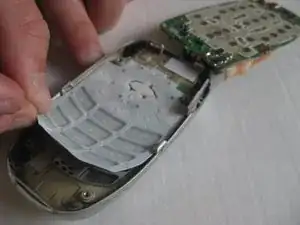

  7. TrBLuLE6EFLZ61eN

    • Flip the circuit board around the top of the phone.

    • Lift the rubber keypad off.

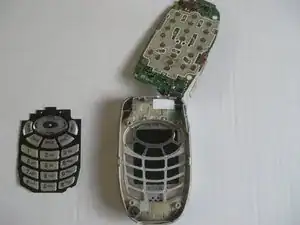

  8. r4MrmNE1GdrBJEjH

    • Replace the keypad.

Conclusione

To reassemble your device, follow these instructions in reverse order.
