Samsung T139 Pad Buttons Replacement

Scritto Da: Reagan May
  • Commenti: 0
Samsung T139 Pad Buttons Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

10 - 15 minuti

Introduzione

Use this guide to replace a worn out button pad on your Samsung T139.

  1. gxubgCTUAhLSoCeY
    gxubgCTUAhLSoCeY
    VyEoyPEsZ1qLJgFt
    ZLcwFCJg5DXsWFUb

    • Power off your phone before beginning disassembly

    • Apply pressure to the back cover and slide towards the base

  2. SWEDBMYQusS1HNeO
    SWEDBMYQusS1HNeO
    vTaFdhB1GH6lFKDk

    • With a plastic opening tool, lift and remove the battery

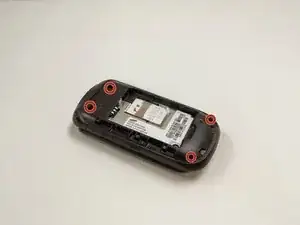

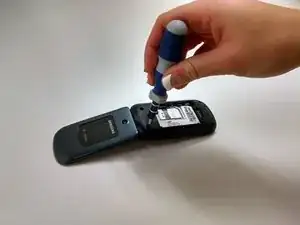

  3. BAYXh3FgGHdE2IOp
    BAYXh3FgGHdE2IOp
    mnmggbWwmSx3EudD

    • Remove the four Phillips 1.0mm #0 screws

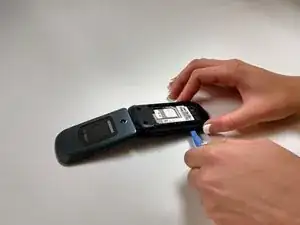

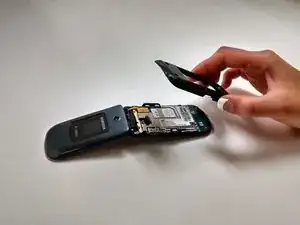

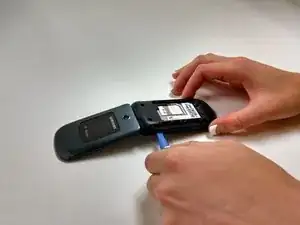

  4. BQIUAXjlkUyPJdy2
    BQIUAXjlkUyPJdy2
    Hh16RwRGCLY4Z5Ee
    qvCTZVjyGCQSq6BO

    • Using the plastic opening tool, work around the edge of the black plastic cover until it pops off

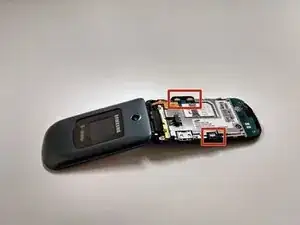

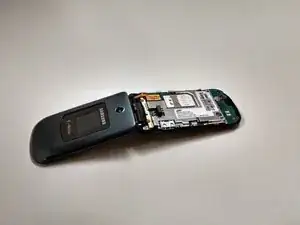

  5. VuHH4rWDVsKjjUIO
    VuHH4rWDVsKjjUIO
    TkHGx4ZBMPQdIGkZ

    • Remove side buttons by lifting them off the board

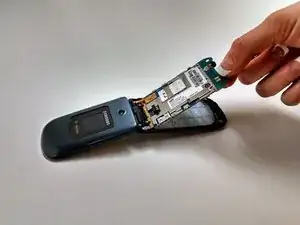

  6. HpMyvxC2ViXRwu6M

    • Lift circuit board up gently

    • Be careful to not pull ribbon cord apart when removing

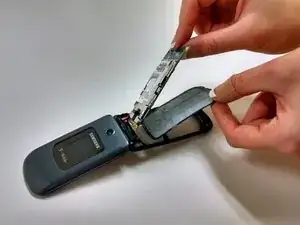

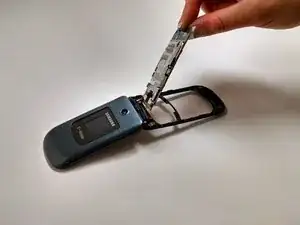

  7. QAX65iQyZDAEbZ3j
    QAX65iQyZDAEbZ3j
    ZjguwhivlDyQJa5H

    • Lift away button pad

Conclusione

To reassemble your device, follow these instructions in reverse order.
