Samsung UBD-K8500 Circuit Board Replacement

Scritto Da: Syeda Zainab
  • Commenti: 0
Samsung UBD-K8500 Circuit Board Replacement

Difficoltà

Very easy

Passi

6

Tempo Necessario

10 - 20 minuti

Introduzione

This guide will help you replace the circuit board for the Samsung UBD-K8500. If your circuit board becomes faulty after exposure to heat, an impact, power surges or overloads, access this guide to replace the defective circuit board. A fragmented connection from the motherboard to the daughter board may cause glitches and errors in reading discs.

  1. Z51FWrA6FHNKHlVU
    Z51FWrA6FHNKHlVU
    nxLgpk4DFxYjoUdd

    • Remove the six 10 mm screws from the back of the unit using a Phillips #0 screwdriver.

  2. M1N4CXO1K246QLFf
    M1N4CXO1K246QLFf
    Wf1eLJ1drhOgfktx

    • Carefully lift up the top panel.

    • There is a cables that must be disconnected before completely removing the panel.

    • Detach the cable connecting the top panel to the motherboard.

    • Take the top off and set it to the side.

  3. ePgSrReMRWdyYZQU

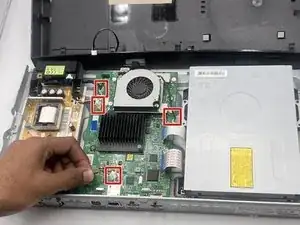

    • Using your fingers, carefully pinch the clipping part of the four connectors and gently pull them out of their sockets.

  4. BVugOLJghGjQESVt
    BVugOLJghGjQESVt
    kBy3GxGNNT2ZHefN

    • Gently pull out the two blue tabs of the ribbon connectors.

  5. PivRS6QTtoMtIsZn
    PivRS6QTtoMtIsZn
    NVjqRqGvWrSNsqoH

    • Remove the three 7 mm screws from the circuit board using a Phillips #0 screwdriver.

  6. SqsTXWBRbFuJurUq
    SqsTXWBRbFuJurUq
    XAX6jJG4ioiUAWwZ

    • Gently pull out the circuit board.

Conclusione

To reassemble your device, follow these instructions in reverse order.
