Samsung UBD-K8500 Processor Cooling Fan Replacement

Difficoltà

Very easy

Passi

5

Tempo Necessario

5 - 15 minuti

Introduzione

This guide will help you replace the processor cooling fan for the Samsung UBD-K8500. A faulty cooling fan can lead to an overheating device causing hardware and short circuit problems.

  1. Z51FWrA6FHNKHlVU
    Z51FWrA6FHNKHlVU
    nxLgpk4DFxYjoUdd

    • Remove the six 10 mm screws from the back of the unit using a Phillips #0 screwdriver.

  2. M1N4CXO1K246QLFf
    M1N4CXO1K246QLFf
    Wf1eLJ1drhOgfktx

    • Carefully lift up the top panel.

    • There is a cables that must be disconnected before completely removing the panel.

    • Detach the cable connecting the top panel to the motherboard.

    • Take the top off and set it to the side.

  3. UScPuL1nf1jHSykP

    • Carefully detach the cable from the fan to the circuit board by pulling on the cable connecting the fan to the circuit board.

  4. UqkIhmntXFfnAPfC
    UqkIhmntXFfnAPfC
    6O6sLg2jlZ3qOWt6
    WOJDqpfZ4PcATBGj

    • Remove both 10 mm screws from the fan using a Phillips #0 screwdriver.

  5. k4aWwrxZIr4H1W35
    k4aWwrxZIr4H1W35
    DMrIjZPHPtHZIVX1
    pluJWqeAiodgAcKZ

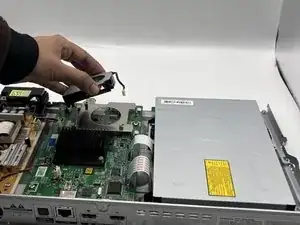

    • Remove the fan from the Blu-ray player.

Conclusione

To reassemble your device, follow these instructions in reverse order.
