Dexter 750W Pendular Button Replacement Corded Jigsaw

Scritto Da: Céline Chemineau
  • Commenti: 0
Dexter 750W Pendular Button Replacement Corded Jigsaw

Difficoltà

Easy

Passi

9

Tempo Necessario

5 minuti

Introduzione

This guide will show you how to replace the pendular button on your tool.

  1. xVb2BuHDEwS12Fjs

    • Before you begin, remember to disconnect the mains plug.

  2. gWTKuPQWVYOpatEU

    • Remove the vacuum adapter from the back of the device.

  3. tt5yAa1W2UViWnwL
    tt5yAa1W2UViWnwL
    VYeasTVDYkHfpJuQ

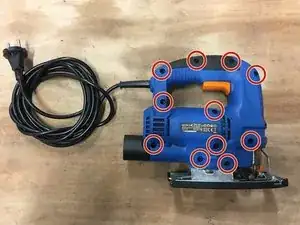

    • Using a screwdriver or screwdriver, unscrew and open the device.

    • Unlock the tray by lifting the lever.

  4. Using pliers remove the blade roller.

    • Using pliers remove the blade roller.

  5. Remove the steel bar and remove the orange button.

    • Remove the steel bar and remove the orange button.

  6. Xx6Y3CAWWfDbWXRx

    • Be careful when removing the orange button not to lose the ball and the spring.

  7. uAnYrjtphNJDJkmo
    uAnYrjtphNJDJkmo
    phVKIjlYTpp5fAQM

    • Replace the ball and spring on the new button.

    • Put it back in the machine.

  8. BVjQ5V2pejH2GI63

    • Replace the blade roller.

  9. NZwo5qhOaHVDBBS2

    • Close and screw the device.

Conclusione

To reassemble perform steps in reverse
