Introduzione
This guide is meant to help a user remove the hinges on a Sennheiser headset that may be faulty and/or worn down. This is a moderately simple guide as there are no components to be removed, just 9 screws to be removed. The only tools needed are a #000 Phillips screwdriver and a T6 Torx screwdriver.
-
-
Remove the four 8mm screws on the ear cup using a #000 Phillips screwdriver to reveal the motherboard.
-
-
-
On one half of the ear cup that was previously removed, there will be located a motherboard. On the other half there will be a coupler holding the cup to the hinge and allowing it to move in a 360 degree manner. Remove this coupler by unscrewing the 10mm screw with the same #000 Phillips screwdriver.
-
-
-
On the leather part of the headset, four 6mm Torx screws need to be removed using a T6H Torx screwdriver.
-
-
-

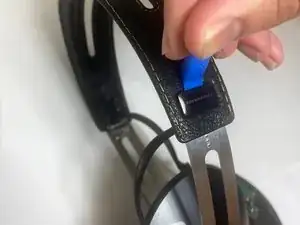

On the other side of the 6mm torx screws, there is a nameplate that needs to be pried off using a pry tool.
-
To reassemble your device, follow these instructions in reverse order.
The hinges must be removed from BOTH sides of the headphones for even one side to come out. They are attached together.
