Sharper Image SBT5002 Speaker Replacement

Scritto Da: Linda Freund
  • Commenti: 0
Sharper Image SBT5002 Speaker Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

30 minuti

Introduzione

Speakers rely on precisely placed components to convert electronic signals into sound waves. Touching the speaker by pushing or pulling can cause the speaker components to deform. As a result, the speaker will no longer produce an accurate sound. Replacing the speaker is the best repair for speaker damage.

  1. pGivYjBaKLqBLDCo
    pGivYjBaKLqBLDCo
    TvhdBLhmDZIHpk3o

    • Unplug the speaker before doing any work on it.

    • Use a #0 Phillips screwdriver to remove the eight 13mm Phillips head screws from the back panel.

  2. CZH1BqaeB36OiyNV

    • Remove the back panel.

  3. 2pS2cFIHvJTD2aQG

    • Remove the snap cable that connects the speaker to the circuit board.

  4. 54OABTCYD6X6HTRT
    54OABTCYD6X6HTRT
    CWMHMGtj2DGSG3PO

    • Use a tap hammer and a punch to release the 4 posts that hold the front panel in place.

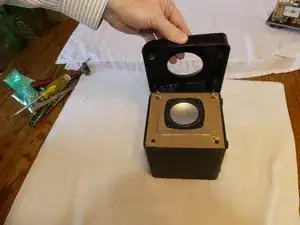

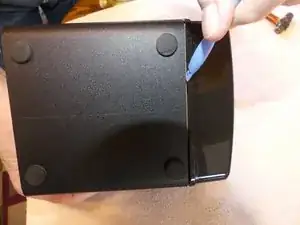

  5. k1oTK4XXnGGLcptn
    k1oTK4XXnGGLcptn
    PEFBO3FgJ2WmNMPn

    • Use a plastic opening tool or spudger to pry off the front panel.

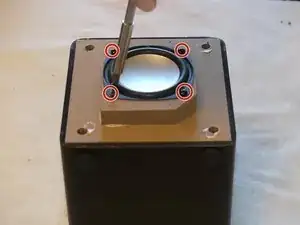

  6. nPOIxdCl26REhZSK

    • Use a#4 Phillips screwdriver to remove the four 9.5mm screws that secure the subwoofer to the woofer box.

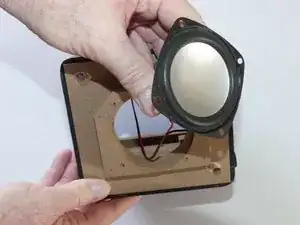

  7. V21fBWePkIZNGSQn

    • Remove the defective speaker.

Conclusione

To reassemble your device, follow these instructions in reverse order.
