Smontaggio Fairphone 3

Scritto Da: Tobias Isakeit
Pubblicato: 11/09/19
  • Commenti: 54

Smontaggio Fairphone 3

Pubblicato: 11/09/19

Smontaggio

Introduzione

"Tutte le cose buone arrivano a tre alla volta" deve essere stato il concetto dell'azienda sociale olandese quando hanno previsto di realizzare il Fairphone 3, il loro nuovo dispositivo mobile realizzato in modo etico e che propone uno schema modulare che rende facili le riparazioni. Il Fairphone 2 del 2015 aveva già portato in alto l'asticella della riparabilità degli smartphone; solo uno smontaggio ci dirà se il suo successore porta ancora più in alto questa asticella, mentre altri grandi costruttori continuò offrire telefoni sigillati con la colla e sempre più difficili da riparare.

Seguici su Twitter, Facebook e Instagram, oppure iscriviti alla nostra collaudata newsletter per rimanere aggiornato con le ultime notizie dal mondo della riparazione.

  1. nBLlYPdxX1BuO4RJ
    nBLlYPdxX1BuO4RJ
    3t3WoyrrGCVOXsFy
    PECTxLkFdxDVWEoG

    • È la bellezza interiore quella che conta, ma ce ne occuperemo tra breve. Per prima cosa, guardiamo le specifiche di questo smartphone:

    • Display IPS da 5,65" con risoluzione 1080 × 2160

    • SoC Qualcomm Snapdragon 632

    • 4 GB di RAM e 64 GB di memoria interna

    • Fotocamera posteriore da 12 MP ƒ/1.8 e fotocamera anteriore da 8 MP ƒ/2.0

    • Batteria da 3.060 mAh

    • Sensore impronte digitali e jack cuffie

    • Un grande grazie al Fraunhofer Institute for Reliability and Microintegration IZM, che ci ha fornito quest'immagine a raggi X del Fairphone 3.

    Finde ich toll,

    schliesse mich gerne den Danksagungen an.

    LG

    wowo

    wo wo -

  2. 3sfTNGQ3SwNQUkL3
    3sfTNGQ3SwNQUkL3
    EocFK5rYOfNRAWXj
    1C6XwGhLlNpMTLgR

    • La linea genealogica dei Fairphone (da sinistra a destra): Primus, Secundus e Tertius, come avrebbero detto gli antichi romani se avessero potuto contare gli smartphone.

    • Da notare l'evoluzione non solo nelle dimensioni e nello stile, ma anche nella tecnologia: l'ultimo sviluppo propone una porta USB-C invece del vecchio connettore micro USB, oltre al sensore impronte digitali sul retro per una maggiore comodità.

    • Ma quanto è più grande? Il Fairohone 3 misura 158×71,8×9,89 mm e pesa 189 g.

  3. XeqIPmL6irPGUWfF
    XeqIPmL6irPGUWfF
    r1vbar6pJWCmdWTj

    • Iniziamo semplicemente rimuovendo la cover posteriore: non è necessario alcun attrezzo.

    • Questo è senz'altro un miglioramento rispetto all'involucro tipo paraurti del Fairphone 2 e anche alla versione 'slim' in due parti che l'ha sostituito a metà del ciclo produttivo.

    • Se hai nostalgia della protezione offerta dal paraurti, non ti preoccupare: è incluso nella confezione.

    I can't find this bumper in any review or unboxing. Can you add a picture of it and check if it's really included?

    Nacht Elfje -

    Hi Nacht Elfje, you can check out the bumper on the official Fairphone 3 website. See at the “In the box” section.

    Tobias Isakeit -

    This reminds me of the Galaxy S phones up to the S5! This isn't the only way to allow for a removable battery though! Manufacturers could use screws or even do something like the Samsung Wave (that still looks really nice!). There was also the LG G5 which had a unique mechanism.

    Fingers crossed that manufacturers stop using glass backs on phones and start going back to sanity and practicality. :p

    Edit: oh and add sustainability to my last sentence

    Raccoon -

  4. xfyyDeXQCMQnBVdL
    xfyyDeXQCMQnBVdL
    3A4cZ16DIBdpVXiq

    • Anche la rimozione della batteria è facile come lo è Android 9: si solleva usando l'incavo nella parte inferiore.

    • Con i suoi contatti incassati e un più robusto involucro di plastica, questo è un ben protetto ritorno al passato che siamo lieti di ritrovare.

    • Con i suoi 11,781 Wh (3.060 mAh a 3,85 V), questo contenitore di energia non è il più grande di oggi. Dovrebbe comunque bastare per tutto il giorno; se non fosse così, potrai semplicemente portarti dietro una batteria di ricambio e scambiarla.

    • Batte quanto a capacità il Google Pixel 3a (11,55 Wh) ma resta sotto l'iPhone Xs Max (12,08 Wh), per non parlare dello Shift 6m (16,3 Wh).

    • La parte inferiore della batteria riporta un messaggio di incoraggiamento e apprezzamento per i progressi fatti finora: "Well done. You're what progress looks like." Parlando di progresso, è ora di avanzare con lo smontaggio. Avanti tutta!

  5. NiLOIoPCZSw5sLAp
    NiLOIoPCZSw5sLAp
    WW6DNwFaZxDLFQWG
    1EyLCfZSKIoSX4Oy

    • Fairphone ha deciso di abbandonare l'elegante meccanismo di blocco del display della versione precedente, preferendo delle viti a croce standard #00.

    • Fairphone fornisce perfino un piccolo cacciavite, ma ci perdoneranno, ci auguriamo, se preferiamo l'impugnatura più ampia e quindi più comoda del nostro Kit cacciavite Mako.

    • Rimosse le viti, sblocchiamo lo schermo dalla scocca. Scopriamo così lo stesso connettore pogo pin oltre alla configurazione a breakout board, cioè con una scheda stampata intermedia, già vista nel Fairphone 2.

    • Da notare la mappa della Repubblica Democratica del Congo in questo punto per illustrare la provenienza conflict-free di minerali come tantalio, stagno, tungsteno e oro.

  6. LUYPhe34RYQwtMU2
    LUYPhe34RYQwtMU2
    pGSZKorwqK3rlYAA

    • Se i moduli del Fairphone 2 utilizzano tutti i connettori pogo pin, quelli del Fairphone 3 sono passati a normali zoccoli a pressione facilmente accessibili.

    • Una semplice azione di leva con lo spudger e i moduli sono liberi.

    • È di aiuto l'etichettatura dei connettori e dei moduli, ma i pezzi del puzzle si allineano facilmente anche se non fai caso alle scritte.

  7. itOvR2EPkiXFp2Jn
    itOvR2EPkiXFp2Jn
    mrmN4NjIsLb2WFI5

    • Il Fairphone 3 arriva con questa famiglia di moduli:

    • Il modulo superiore, il modulo fotocamera e il modulo inferiore sono tutti qui, in modo molto simile al Fairphone 2.

    • L'altoparlante ora si guadagna il suo proprio modulo chiuso (invece di essere una parte del modulo inferiore), e si connette alla parte posteriore dello stesso modulo.

    • Se speri di aggiornare il tuo Fairphone 2 con questi moduli, abbiamo cattive notizie per te. I moduli e le loro parti interne non sono compatibili. Ma i loro involucri, dicono, sono prodotti con policarbonato riciclato al 50%, quindi almeno c'è un po' di riuso!

  8. 3ertx5ImGZN5cfAK
    3ertx5ImGZN5cfAK
    5FeDVVtVOq3u5Aew
    nDtPWTJIm5JAanI6

    • Non contenti di avere soltanto rimosso i moduli, tiriamo fuori il nostro cacciavite Torx T5 e un plettro di apertura e andiamo oltre con lo smontaggio.

    • Iniziando dal modulo superiore:

    • Sia la fotocamera da selfie da 8 MP ƒ2.0 sia l'altoparlante voce sono rimovibili.

    • Il jack cuffie, così come accade per i sensori di prossimità e di luce ambiente, è saldato sulla breakout board.

    • Il modulo fotocamera supporta una fotocamera modulare da 12 MP ƒ1.8 con sensore Sony IMX363 Exmor RS. I LED del flash sono saldati sulla breakout board.

    • Il modulo inferiore contiene il motore di vibrazione, una porta USB-C saldata e il microfono.

    • Il modulo altoparlante, con i suoi due contatti, è il più solitario delle parti attaccate al modulo inferiore.

  9. OXbTPfPgk1R2L2cx
    OXbTPfPgk1R2L2cx
    RXVqfOKYw1byuPMu
    AVMCJmcssaT1fwhB

    • Rimossa la scheda madre, scopriamo una piccola serie di contatti a molla che connettono al sensore impronte digitali, ai pulsanti del volume e dell'accensione e ad alcune antenne.

    • Dopo aver tolto la schermatura scopriamo:

    • SoC Qualcomm Snapdragon 632

    • 64 GB di memoria eMMC Samsung KMRH60014A-B614

    • Modulo RF front end Qorvo QM57508 RF

    • Ricetrasmettitore RF Qualcomm WTR3925

    • Modulo Wi-Fi Qualcomm WCN3680B

    To remove the motherboard you need to unscrew two black screws with a 5 point screwdriver. I almost bent the metal cover of the motherboard before noticing that.

    VooBee -

    Yeah. That should be mentioned in the main text.

    Gordon Wilson -

    These aren’t complete steps for disassembly. It’s a tear down, not a repair guide.

    Jason Zak -

    Moin! Konntet ihr die Positionen des Gyroskops und des Lagesensors ausfindig machen? Diese haben bei meinem FP3 nach Wasserschaden den Geist aufgegeben, ich muss ggf. die zugehörigen Module tauschen. Vielen Dank!

    Jan vdB -

    Moin, leider konnten wir die beiden Bauteile nicht genau identifizieren. Wahrscheinlich sitzen die auf dem Motherboard und keinem der einzelnen Module. Eventuell bekommst du von Fairphone direkt eine Nachricht wenn du ihnen schreibst.

    Tobias Isakeit -

    Bonjour, il doit y avoir une confusion, la puce en orange “LPDDR3 KMRH60014A-B614 Samsung de 64 Go” doit être de la eMMC et non de la LPDDR3 qui correspond à de la RAM.

    Justin -

    Thanks for the tip, we've corrected it

    Tobias Isakeit -

    Do you happen to know which wireless connection the antenna in the upper right corner of the frame next to the rear camera is for? WiFi, Bluetooth, mobile 2G/3G/4G? My frame is broken in that corner and as such the antenna is cut. Now it'd be good to know which connection it might affect and see if it does have a negative effect in real life at all... Thanks!

    Tobse Ri. -

    how do you undo the "spring contacts" for the shields?

    coffeedog23 -

  10. cwNrFXDRoQPeWLC6
    cwNrFXDRoQPeWLC6
    n6YBHoWVNpR6taKK

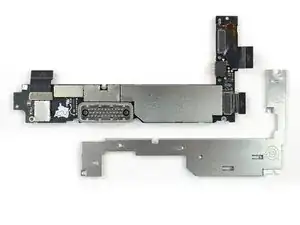

    • Sulla faccia anteriore della scheda madre troviamo:

    • Flex RF Qorvo QM56022

    • IC gestione alimentazione Qualcomm PMI632

    • IC gestione alimentazione Qualcomm PM8953

    • Codec audio Qualcomm WCD9326

    • Amplificatore audio Awinic AW88980

    • NXP Q31A1

  11. WA55a1QhM3Uocx2K

    • E questo è quanto per il Fairphone 3, scomposto fino alle viti e ai componenti singoli. Riassumiamo le nostre scoperte:

    • Il nuovo involucro è facile da aprire e mette in mostra la trasparenza del progetto.

    • Il design ancora più modulare rende l'interno del telefono molto ordinato ed è richiesto un altro strato di smontaggio per riparare i componenti individuali.

    • Il rimontaggio di questo telefono non dovrebbe proprio essere un problema e noi siamo fiduciosi sul fatto che funzionerà ancora.

    • Vediamo che cosa significa questo in termini di riparabilità…

    Estimado/a Señor/a,

    Solicito autorización para utilizar la fotografía del paso 11 en una publicación. En caso afirmativo, indíquenme por favor cómo debo citar su autoría. Muchas gracias y un saludo cordial,

    Pere Renom

    cogitoergomitto@gmail.com

    Pere Renom -

    Puede dirigirse a esta página para obtener más información al respecto. Cualquier duda que tenga, no dude en comunicarse conmigo.

    Mariana Roca -

    Permitimos el uso no comercial de nuestras imágenes con crédito. ¡Ejemplos de cómo acreditar incluyen "fuente:iFixit" o "imagen cortesía de ifixit.com" o alguna combinación!

    Mariana Roca -

    where is the gps module??? Many Thanks

    Michael -

  12. RX3vPifZkS3NJRjH

    • Il Fairphone 3 si guadagna il punteggio di 10 su 10 nella nostra scala di riparabilità (10 è il più facile da riparare):

    • Il design dà la priorità a componenti chiave come la batteria e lo schermo, che sono accessibili senza strumenti o al massimo con un comune cacciavite a croce Phillips.

    • All'interno del telefono ci sono "indizi" visuali che aiutano nello smontaggio e sostituzione di parti e moduli.

    • La sostituzione di moduli completi è molto facile. È possibile anche arrivare alle parti interne dei moduli stessi usando un cacciavite Torx.

    • Le guide di sostituzione e i pezzi di ricambio sono disponibili nel sito web del produttore.

    • La maggior parte dei componenti all'interno dei moduli sono sostituibili individualmente benché alcuni siano saldati.
