Smontaggio Intel NUC5i7RYH

Scritto Da: Jasen Friedle
  • Commenti: 24
Smontaggio Intel NUC5i7RYH

Difficoltà

Facile

Passi

7

Tempo Necessario

10 minuti

Introduzione

Questa guida ti mostrerà come smontare un Intel NUC5i7RYH o modelli simili.

  1. hgXNBMAWQIkPYfwJ
    hgXNBMAWQIkPYfwJ
    OBQaKMO1bvbkfHOv

    • Appoggia il NUC a testa in giù ed inizia ad usare un cacciavite a croce Phillips per svitare le viti inferiori sulla porta della copertura inferiore.

    • Queste viti sono tenute ferme con dei blocchi, quindi non cadranno quando girerai la copertura.

  2. NdMLjaBVhnHOusBW
    NdMLjaBVhnHOusBW
    xONCQDwGCofTfYNq
    CXFgNTIoSPaSXjYG

    • Solleva la porta e tieni d'occhio i cavi che si collegano alla scheda madre del NUC. Questi sono i cavi dell'alloggio del disco rigido da 2,5".

    • Scollega attentamente i cavi dalla scheda madre e metti la staffa da parte.

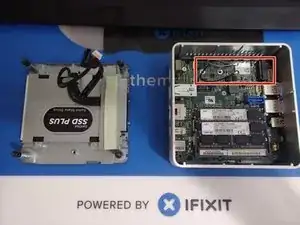

    • Nell'ultima immagine viene evidenziato l'alloggio per l'SSD. Qui è dove puoi installare l'SSD utilizzando una vite per tenerlo fermo.

  3. 4BVSk21aYoAZQKWj
    4BVSk21aYoAZQKWj
    qk66WoKXRT4DWBuh
    MelM6pIAJCpTVQgn

    • Svita le 4 viti argento che tengono ferma la staffa del disco rigido. La copertura in metallo con il pad termico nel riquadro rosso verrà via: questa è utile se hai un SSD installato, in quanto lo isola dal metallo.

    • Sfila attentamente l'HDD o l'SSD dalla sua copertura.

  4. FPkUyVtsYXNJVmLG
    FPkUyVtsYXNJVmLG
    TFkTNp3LnO2liJ6P
    C24bSvjc6QZX2jqD

    • La rimozione della RAM su queste unità è come su un normale portatile: piega leggermente i bracci su entrambi i lati del banco e lascialo sollevare prima di sfilarlo dalla sua presa.

    • Se ci sono due banchi di RAM, ripeti questa procedura per il banco inferiore sottostante.

  5. RK1QJHgW3wMIa2qI
    RK1QJHgW3wMIa2qI
    4qIxSBDCk6GkDLfs
    YwWIh3WHTBdbNV6o

    • La scheda madre è tenuta ferma da due viti a croce Phillips nere, che si trovano a sinistra.

    • Assicurati di scollegare i cavi dell'antenna dalla scheda wireless prima di rimuovere la scheda madre.

    • Prendi la porta ethernet e solleva la scheda dalla copertura.

    I’m trying to disassemble an NUC 54250WYKH (released 2013), due to a now hopelessly broken fan. Removing the mother board has been proven to be very hard.I’m suspecting that it is just “stuck” to the top or that the headphone jack/IR receiver part is stuck.

    After removing the two screws above: is it just a matter of applying a bit of force?

    Linus -

    Hi Linus,

    The motherboard in my NUC lifts out without much force at all, so try and make sure none of the connectors are catching on the case.

    Jasen Friedle -

    I also have the NUC 54250WYKH and I am unable to remove the motherboard. It looks like the motherboard is held in place by something in addition to the 2 screws.

    lamsan -

    Does it budge at all? There’s a chance the I/O ports are catching on the case of the NUC when lifting the motherboard up.

    Jasen Friedle -

    Easy to destroy the antenna cable connector if you haven’t done it before. A warning may be in order.

    wyldbill -

    After trying to brute force the Motherboard out, i tried to remove the black plastic cover for the jackstick. You have to press the plastic from inside and out. There is a “holder" you need to press from its metalframe. After i got the cover out, I could see the jackstick that was behind the cover, was sticking further out the metal case, therefore holding the motherboard., As it got stuck on the metal frame.

    Then getting it out from the opposite side (LAN and power side) was easy.

    This was in the D54250wykh.

    Sadly I cannot add pictures of it in this comment.

    Muggi -

  6. HSGFlmVoDsfLPhL1
    HSGFlmVoDsfLPhL1
    5XtrrBFpLwcjTDcA
    4FjEIcQVNlG11v2M

    • La scheda madre dovrebbe sollevarsi fuori dalla copertura.

    • Per rimuovere la ventola, svita le due viti a croce Phillips che la tengono ferma. Può essere scollegata dalla scheda madre.

    Thank you for this tutorial - it was lifesaver for us.

    Our NUC was overheating and after we disassembled motherboard and cleaned tons of dust in fan NUC is working propery again.

    Thans a lot :)

    BR, Alan

    Alan Poldrugac -

  7. OAdvN22KZCRPp1VK

    • Questa unità è relativamente facile da smontare e rimontare. Buona fortuna!

    I work on notebooks for a living and getting that motherboard back in the NUC was the most frustrating, profanity laced efforts I’ve ever had. The case is just too tight a fit. Wish I had just blown it out with compressed air and run the other direction.

    gridglory -

    The case is a tight fit. It's easiest if you put the front side all the way down and in place and push down on the top of the ethernet port to reseat the motherboard.

    Sierra Guru -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
