Smontaggio Logitech G502 Hero

Scritto Da: spslizer

Commenti: 31

Difficoltà

Moderato

Passi

Tempo Necessario

1 ora

Introduzione

Questa guida ti mostrerà come smontare in modo sicuro un mouse Logitech G502 Hero in preparazione alla sostituzione dei componenti interni del mouse per la riparazione o il rinnovamento.

Strumenti

Passo 1

Per far sì che non dia fastidio, arrotola il cavo USB usando la fascetta in velcro integrata.
Se la fascetta in velcro del cavo è danneggiata o manca, puoi usare una normale fascetta.

Passo 2

Rimuovi la copertura dei pesetti da sotto il mouse sollevandola dal piedino del mouse.
Puoi rimuovere i pesetti se vuoi, ma non è necessario per lo smontaggio.

Passo 3

Usando una pistola termica (impostata al minimo), scalda i tre piedini del mouse, ciascuno per diversi secondi.
Infila un plettro sotto i piedini del mouse e l'adesivo sottostante.
Se fatto correttamente, dovresti poter rimuovere i piedini del mouse con l'adesivo ancora attaccato.
Se l'adesivo non viene via con i piedini, puoi grattarlo via con uno spudger.

Passo 4

Svita le quattro viti a croce Phillips che tengono insieme le due metà del mouse.

the top screw is actually more to the right and wrongly marked in the picture

Dennis Schwertel -

Passo 5

Infila la parte piatta di uno spudger in plastica nella zona indicata tra la copertura superiore e quella inferiore.
Le due metà del mouse si separeranno quasi del tutto con una minima forza.
Non cercare ancora di separare le metà.

Passo 6

Infila la parte piatta di uno spudger in plastica tra la copertura superiore e quella inferiore nella parte sinistra del mouse, accanto al tasto sinistro.
Le coperture superiore ed inferiore si separeranno completamente, permettendoti di sollevare quella superiore.
Stai attento a non rompere i ganci in plastica che tengono insieme le due metà.

Passo 7

Usando la parte piatta di uno spudger, solleva attentamente entrambi i lati del blocco che tiene fermo il cavo a nastro.
Una volta rilasciato il blocco, il cavo a nastro dovrebbe rimuoversi facilmente dal connettore.
Non fare troppa forza mentre rilasci il blocco, altrimenti potresti danneggiare il connettore.

Passo 8

Rimuovi la scheda laterale tirandola all'infuori per accedere al connettore del cavo a nastro.
Usando la stessa tecnica usata per il connettore del cavo a nastro del sensore Hero, rilascia il blocco del cavo.
Rimuovi il cavo a nastro con la scheda laterale.

Passo 9

Il gruppo della rotella è tenuto fermo da una barra di bloccaggio, che deve essere rimossa.
Usando la punta di uno spudger in plastica, spingi la barra di bloccaggio fuori dal lato destro.
Dopo aver fatto ciò, puoi rimuovere la barra di bloccaggio.

Passo 10

Rimuovi il gruppo della rotella dal mouse.
Ci sono due piccole molle per il click della rotella; queste sono molto piccole e si possono perdere molto facilmente.

Passo 11

Svita le quattro viti a croce Phillips vicino alla parte anteriore del mouse.
Svita la vite a croce Phillips vicino alla presa del cavo a nastro del sensore Hero.
Puoi ora rimuovere il supporto per il gruppo della rotella.

Passo 12

Usando la parte piatta di uno spudger in plastica, scollega la presa del cavo USB dalla scheda madre spingendo fuori il maschio della presa.
Dopo aver creato una piccola fessura grande abbastanza, puoi usare la punta di uno spudger per spingere fuori la presa.
Rimuovi la scheda madre dalla copertura inferiore del mouse.

Passo 13

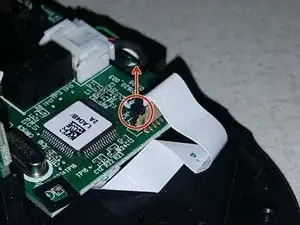

Dopo aver rimosso la scheda madre, hai scoperto la scheda del sensore Hero.
Svita le due viti a croce Phillips che tengono ferma la scheda Hero.
Usando delle pinzette, rimuovi attentamente i due distanziali in nylon dai perni.
Rimuovi la scheda del sensore Hero.

Passo 14

Inizia rimuovendo il pezzo di plastica trasparente sopra l'allentatore del cavo.
Dopo aver rimosso il pezzo di plastica trasparente, il cavo può essere rimosso dall'allentatore e dalla copertura inferiore.

Passo 15

Ecco tutti i componenti interni per riferimento
Viti a croce Phillips
Molle della rotella
Distanziali in nylon del sensore Hero
Cavi a nastro della scheda laterale e della scheda del sensore Hero
Gruppo della rotella
Supporto per la rotella e barra di bloccaggio

Conclusione

Sostituisci le parti necessarie e quindi segui queste istruzioni in ordine inverso per rimontarlo.
