Smontaggio MacBook Pro 13" Touch Bar versione 2017

Scritto Da: Blake Klein
Pubblicato: 08/06/17
  • Commenti: 35

Smontaggio MacBook Pro 13" Touch Bar versione 2017

Pubblicato: 08/06/17

Smontaggio

Introduzione

L'amore è nel MacBook nell'Air e abbiamo un MacBook Pro 13" Touch Bar 2017 nuovo di zecca di cui innamorarci. Che cosa c'è di nuovo o di riciclato in questo killer successore del MacBook Air? Dovremo smontarlo per scoprirlo.

Sposa la nostra causa o più semplicemente seguici su Instagram, Twitter o Facebook.

  1. dDaLjBMfFORrML6L
    dDaLjBMfFORrML6L
    bS5MxGUPH5C4QaDU

    • Ti piace il profumo di questo nuovo Mac, ma quanto è nuovo in realtà questo Pro? Dai un'annusata a a queste specifiche:

    • Display "Retina" IPS da 13,3" retroilluminato a LED con risoluzione 2560 × 1600 (227 dpi), colore wide gamut P3

    • Processore dual-core Intel Core i5 Kaby Lake da 3,1 GHz (fino a 3,5 GHz con Turbo Boost).

    • 8 gb di SDRAM LPDDR3 da 2133 MHz

    • SSD con interfaccia PCIe da 256 GB

    • Grafica integrata Intel Iris Plus Graphics 650

    • Quattro porte Thunderbolt 3 (USB-C) e presa cuffie da 3,5 mm

    • Wi-Fi 802.11ac e Bluetooth 4.2

  2. CDPnXt3AxNejf2GL
    CDPnXt3AxNejf2GL
    xE4Yp4OdTJi6NS2F
    ydEWHyEN2EWYZbaw

    • Grazie alle nostre precedenti esperienze, ci lanciamo subito nell'odiosa manovra ventosa-fai leva-scorri e apriamo immediatamente senza indugio questo piccolo coso.

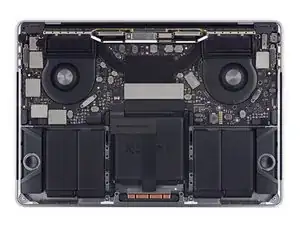

    • Una volta che l'ostrica è stata aperta e la perla è stata portata alla luce, rimaniamo colpiti da seri deja vu.

    • Confrontate il MacBook Pro 13" Touch Bar 2017 (il secondo)...

    • ...con il MacBook Pro 13" Touch Bar 2016 (il terzo).

    • Tutto sembra estremamente simile, fino alla batteria da 49,2 Wh.

    • L'unica differenza che notiamo è la finitura delle ventole. Sembra che quest'anno l'aria di novità abbia investito solo l'iMac 4K.

  3. weOoHyyHD2c2TTb6
    weOoHyyHD2c2TTb6
    NarKemP5uHIdcOIE

    • Troviamo delle manette all'interno e le trasformiamo in un paio di baffi a manubrio. Ecco i segreti dentro a questo notebook:

    • Processore Intel Core i5-7267U con Intel Iris Plus Graphics 650

    • Controller Thunderbolt™ 3 Intel® JHL6540

    • 64 GB di memoria flash NAND SanDisk SDRQKBDC4 064G (x2 per un totale di 128 GB su questa faccia della scheda)

    • DRAM LPDDR3 Samsung K4E6E304EB-EGCG (4 x 2 GB per 8 GB totali)

    • Texas Instruments SN650839 72C27RNGI e controller SMC TI/Stellaris LM4FS1EH (codice sostitutivo per TM4EA231)

    • H9CKNNN4GTATMR-NTH

    • Modulo Wi-Fi Murata/Apple 339S00056

    how did you remove the heatsink?

    Christian Echavez -

  4. O35tnkRCOfDKhJuY

    • Sul lato opposto troviamo:

    • 2x 64 GB di memoria flash NAND SanDisk SDRQKBDC4 (come nell'SSD rimovibile della Escape Edition 2016)—che portano il totale a 256 GB

    • APL1023 343S00736 (probabilmente il chip personalizzato Apple T1 che si accoppia con la Touch Bar) e (Apple?) 338S00193-A1 17148HDK

    • 2x Texas Instruments TI CD3215C00 68C7QKW G1

    • Intersil 95828 HRTZ X708FGK

    • Switch differenziale HDMI DisplayPort 2:1/1:2 6.0 Gbps Texas Instruments HD3SS215

    • Memoria flash seriale Macronix MX25L6473EZNI-10G

    • Controller NFC NXP 66V10, contenente Secure Element 008 e NXP PN549 (come già visto nell'iPhone 6s)

  5. OWOKSvDEEQqWReDE

  6. oeGOMVnqniSNknOW

    • Punteggio di riparabilità del MacBook Pro da 13" con Touch Bar: 1 su 10 (10 è il più facile da riparare)

    • Si può rimuovere il trackpad senza aver prima tolto la batteria.

    • Il gruppo batteria è completamente, e molto solidamente, incollato al case; questo complica la sostituzione.

    • Le viti di tipo proprietario pentalobe continuano a rendere inutilmente difficile l'apertura del dispositivo.

    • Il processore, la RAM e anche la memoria flash sono saldati alla scheda logica.

    • Il Touch Bar aggiunge un secondo schermo che si può danneggiare ed è anche questo difficile da sostituire.

    • Il sensore Touch ID funziona anche da pulsante di accensione ed è accoppiato con il chip T1 sulla scheda logica. La riparazione di un interruttore guasto può richiedere l'aiuto diretto di Apple oppure una nuova scheda logica.
