Smontaggio Samsung galaxy A12

Scritto Da: Ulric
  • Commenti: 7
Smontaggio Samsung galaxy A12

Difficoltà

Facile

Passi

7

Tempo Necessario

10 - 25 minuti

Introduzione

Questa guida è stata realizzata nella speranza di poter aiutare a riparare il Samsung Galaxy A12.

  1. RLLISpS1fBegOk15

    • Rimuovi prima il vassoio della SIM

    ce n'est pas collé mais vaut mieux chauffer le plastique (sèche cheveux) pour retirer le couvercle surtout les coins...

    Jose Goncalves -

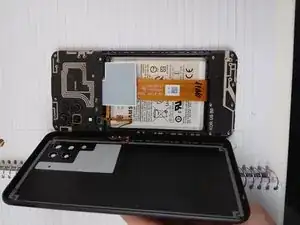

  2. yOdCHZ4VVoCbxpoT
    yOdCHZ4VVoCbxpoT
    Lty6YSPuAckpAoSs

    • Togli il retro di plastica

    • Scollega il cavo flessibile del pulsante di blocco

    The back cover was a little tricky, I found the top left was the part of the case that I got to open first, then you can run a plastic tool around all the sides.

    KevinG -

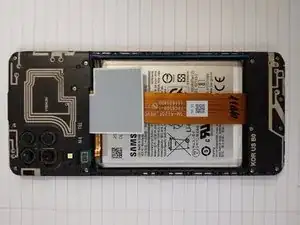

  3. DbTtcD2IDLDUQQDC
    DbTtcD2IDLDUQQDC
    g6xPFGLyX4wU1UYU

    • Rimuovi le viti

    • Sono tutte della stessa misura

  4. xfrlonx5CyReHEeF

    • Rimuovi le coperture in plastica

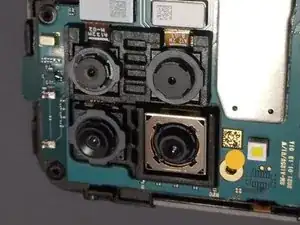

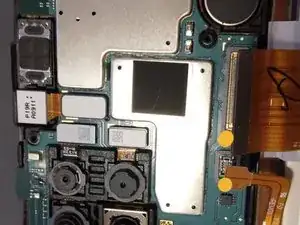

  5. crlr4UEEPuLQtFAD
    crlr4UEEPuLQtFAD
    ZJFYWHb5BOGJlEPv
    St5V5bpnSBSQwAiG

    • Sgancia i cavi flessibili, iniziando dal più piccolo

    • Svita la vite di messa a terra

    • Scollega l'antenna

    • Estrai la scheda principale dallo slot del vassoio SIM con uno spudger

  6. PJ5uCShFVe5QBVmJ

    • Stacca il cavo flessibile

    • Solleva il pannello con facilità, prestando attenzione all'adesivo

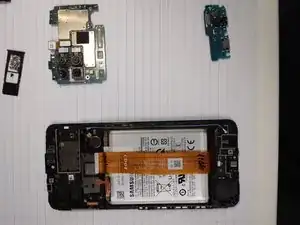

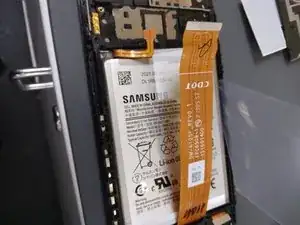

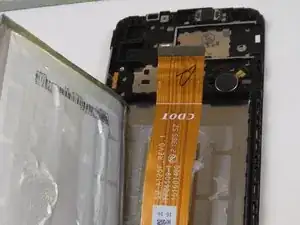

  7. rEgCHTrGcYQfMSBg
    rEgCHTrGcYQfMSBg
    3tAnValkjhnjEip3
    j1goylrZ2CNwW3YW

    • Metti da parte il cavo flessibile

    • Strumento in plastica formato carta di credito

    • Inseriscilo dal lato della batteria fino all'angolo e applica alcol isopropilico

    • Inclina la fotocamera verso l'alto per evitare che coli nella batteria

    • Solleva la batteria facendo attenzione a non danneggiarla

    Wow, that was a mission! I didn't have any isopropyl alcohol which i'm assuming makes it much harder. Make sure you have that before starting I guess. I used a hairdryer to heat the front of the screen, but even then it was a long job. It is properly glued in there!! Just take your time. I had a flexible piece of plastic which I managed to eventually get under the battery and just slowly worked round underneath to free it up, whilst pulling on top of the battery with a suction cup. Good luck!!!

    KevinG -

    muchisimas gracias!! muy útil y bien explicada!!

    Augusto Tolozano -

Conclusione

Per rimontare il dispositivo, segui queste istruzioni in ordine inverso.
