Smontaggio iMac Intel EMC 2309 e 2374 27"

Scritto Da: Miroslav Djuric

Pubblicato: 20/10/09

Commenti: 173

Smontaggio iMac Intel EMC 2309 e 2374 27"

Pubblicato: 20/10/09

Smontaggio

Introduzione

Stiamo per smontare il più nuovo (e grande) iMac nella serie di Apple: l'iMac da 27"! Abbiamo smontato questo iMac in data 21 ottobre 2009.

Vuoi gli aggiornamenti dell'ultima ora? Segui @ifixit su twitter.

Guarda lo slideshow video super veloce dello smontaggio! Ha della musica con banjo!

Strumenti

Passo 1

Non abbiamo badato a spese per portarti il più recente e il più grande degli iMac. Abbiamo nel nostro studio il più ingombrante iMac che si può comprare.
Il nuovo iMac fa impallidire l'iMac da 20" che abbiamo smontato precedentemente quest'anno.
La caratteristica più distintiva di questo nuovo iMac è il nuovo schermo da 27" retroilluminato a LED. Lo schermo vanta una risoluzione 2560x1440 in formato16:9.
Nella confezione è presente anche il nuovo Magic Mouse. Lo abbiamo già smontato.
La maggior parte delle immagini promozionali di Apple mostravano l'iMac in funzione e senza cavo di alimentazione. Sembra molto più bello così, ma, sfortunatamente, la nostra unità deve essere attaccata alla corrente per potersi accendere.

I'm missing unboxing step what is inside etc.

Thanks for nice work !

Jasiu -

Brilliant teardown. Couple of points;

1. Is there a "spare" SATA connector, and what would it take to add an external port ? From your earlier posting I think there's room on the back panel.

2. Cable management - and this has always been a bugbear on the whole iMac range - why not cut a slot in the stand to feed all cables through for neatness ?

3. Have you tested the HDMI input, and what does it look like ? Would you watch TV on this with the addition of a USB tuner ?

4. Let's see it go back together...:-)

Seriously, fantastic teardown. I showed the Mrs and she hit me, yelling NO, NO... go figure...

moldor -

Hi brothers,

On your pictures, is it a 24" faicng the 27.1" ?

SuperTiti -

Citazione da moldor:

Brilliant teardown. Couple of points;

1. Is there a "spare" SATA connector, and what would it take to add an external port ? From your earlier posting I think there's room on the back panel. [...]

I too am wondering if an eSATA port can somehow be added. To me, that's the biggest thing that's missing from the latest Macs. I've heard about the forthcoming Apple/Intel Light Peak optical interface but nothing is going to beat native SATA for an external storage interface (no bridge/translation necessary).

derektom -

Yep! There it is! Bigger, wider and brighter!

Vrumm -

Citazione da SuperTiti:

Hi brothers,

On your pictures, is it a 24" faicng the 27.1" ?

The comparison shots show a 20" Early 2009 iMac next to the new 27" iMac.

Luke Soules -

Citazione da luke:

The comparison shots show a 20" Early 2009 iMac next to the new 27" iMac.

Thanks ! So, as an owner of a 24" I think a 27" won't be that great change I was expecting...

SuperTiti -

Passo 2

Nove porte. Queste sono identiche alla scorsa revisione, ma la Mini DisplayPort ha un nuovo asso nella manica.
Questo iMac supporta una nuova funzione che ti permette di trasmettere un segnale video da fonti esterne allo schermo interno. Apparentemente, serve per collegare il tuo lettore Blu-ray, in quanto la macchina ancora non ne include uno interno.
Sfortunatamente questa funzione richiede un adattatore. Dove è l'adattatore? Non nella confezione. Il manuale dice "I cavi e adattatori richiesti sono venduti separatamente". Non che la cosa ci lasci sorpresi, il solo cavo che c'è in confezione è quello di alimentazione. Già, Apple pensa che i cavi siano una creazione del diavolo.

Why is the 21.5" iMac does not have video-in capabilities? What is the difference in those two MotherBoards?

Vrumm -

The option that I can see is to be able to plug in a second monitor and or connect it to the TV for a nice large screen

Fetlifer - 03/12/17

Passo 3

Come n egli iMac precedenti, gli slot per la RAM sono nascosti sotto uno sportello d'accesso sul bordo inferiore. Un cacciavite a croce Phillips #2 ci libera rapidamente delle tre viti.

What is the stock configuration of DIMMS? 4x1GB? 2x2GB?

PhotoTim -

Citazione da PhotoTim:

What is the stock configuration of DIMMS? 4x1GB? 2x2GB?

This iMac came with 2x2GB chips.

Luke Soules -

Is this the complete step for accessing the RAM space to add more RAM? (I plan to add 2x2GB more.) That is, just open the access door and there it is?

dano3006 -

Citazione da dano3006:

Is this the complete step for accessing the RAM space to add more RAM? (I plan to add 2x2GB more.) That is, just open the access door and there it is?

Yup, just remove the access door and pull the black plastic strip attached to each RAM tray away from the bottom edge of the iMac to eject the chips.

Andrew Bookholt -

Passo 4

Puoi ora installare un'enorme quantità di RAM, 16 GB, nel tuo iMac! Con una mossa davvero benvenuta, Apple ha raddoppiato il numero di porte, permettendoti di installare quattro banchi da 4 GB PC3-8500.
Ovviamente, dovevamo vedere coi nostri occhi. Apple non stava scherzando, se hai i soldi, puoi davvero avere 16 GB di RAM nel tuo iMac! 16 GB ti faranno spendere 1400 $ da Apple, o 400 $ da noi.

Passo 5

Il nuovo iMac include un vetro da bordo a bordo. Questo è diverso dal bordo in alluminio di 4 mm che circondava il vetro sui precedenti iMac. Speriamo Apple abbia inserito dei magneti abbastanza forti per tenere fermo il vetro. Dopo aver aggiornato la RAM sul nostro iMac, abbiamo notato che il vetro era leggermente disallineato su un lato.
Due ventose, due mani ferme, e l'enorme pannello in vetro si solleva.
Speriamo che tu non stia facendo lo stesso, in quanto può essere un po' complicato. Se hai un iMac precedente a cui serve un intervento, ora abbiamo delle guide dettagliate alla riparazione per molti modelli di iMac.

Could we replace the original edge-to-edge glass for a Multi-Touch model?!?! Would it be a possible mockup?!?! It would be very nice in Business Shows to present de digital leaflet and keynotes. And at home to be just set it as enormous "tablet". the point is how to make it for a low price?

Vrumm -

hi!

how is the glas mounted on the enclosure? only by magnets? is it real glas or perspex? thanks for your answer!

Robert

robert -

Hi can you describe better how the glass attaches to the frame. Is the black border on the glass metallic so it can be supported by the magnets. Thanks.

Zoom -

Citazione da robert:

hi!

how is the glas mounted on the enclosure? only by magnets? is it real glas or perspex? thanks for your answer!

Robert

Im pretty sure its real glass and yes it is only held in place by magnets

AussieMac -

I own a 27" iMac that has this edge-to-edge glass broken at left side.

Monitor is still intact. I cant exactly understand how to remove this surrounding glass.

Do i need to use the suction cups on the surrounding glass so to remove it from the magnets? Cause on the photo the cups are placed on the Monitor..

Thanks

gUrU -

Citazione da gUrU:

I own a 27" iMac that has this edge-to-edge glass broken at left side.

Monitor is still intact. I cant exactly understand how to remove this surrounding glass.

Do i need to use the suction cups on the surrounding glass so to remove it from the magnets? Cause on the photo the cups are placed on the Monitor..

Thanks

There have been a number of reports on the Apple forums of the glass being broken on the bottom left side. If you have an Apple store nearby, you can ask them to replace the glass (they will have to get the replacement glass shipped to the store), otherwise call Apple support to obtain a replacement machine.

dotm8rix -

Citazione da gUrU:

Do i need to use the suction cups on the surrounding glass so to remove it from the magnets? Cause on the photo the cups are placed on the Monitor..

Thanks

Actually, in both photos the suction cups are attached to the glass. The display is recessed about .125" below the glass panel, and the two components are not connected. To remove the glass, lay your iMac stand-side down on a table. Stick two suction cups along the top edge of the glass and pull it away from the rear case of the iMac. Rotate the top edge of the glass panel slightly away from the rear case of the iMac to clear the mounting pins, then slide the glass toward the top edge of the iMac to free the flat tabs along its lower edge.

Andrew Bookholt -

Is the LCD itself glossy, or just the glass? I am considering getting a 27" iMac but hate the glossy display -- would it be feasible to run it with the glass removed? Maybe sealing the edges with some carefully-placed electrical tape or something...

cromas -

Citazione da cromas:

Is the LCD itself glossy, or just the glass? I am considering getting a 27" iMac but hate the glossy display -- would it be feasible to run it with the glass removed? Maybe sealing the edges with some carefully-placed electrical tape or something...

yes, the display is also glossy

AussieMac -

Passo 6

Il pannello LCD è tenuto fermo con otto viti Torx T8.
Dopo aver svitato le viti, inclinare il gruppo del pannello LCD ci consente un primo sguardo sui tesori sottostanti.
Prima di poter sollevare il pannello LCD, scollega attentamente il cavo di sincronia verticale dalla scheda madre.

I think I have break the sync cable... Can anyone tell me what will be the effect of it? Thanks.

Antonio -

Strangely I found that reinstalling the 8 screws to keep the LCD panel in place my T-10 torx kept demagnetizing. (I only have a slight magnetization in place to keep the screws from falling inside)

mark -

I keep my tools stuck to a voice coil magnet I pulled from a 3.5" hard disk. I haven't had a problem of screwdriver being *too* magnetized, so far.

Boyd Waters - 03/06/17

Passo 7

Il pannello LCD prodotto da LG pesa quasi 5 Kg! Quindi, di nuovo, è una bellezza massiva da 27".
La risoluzione è davvero impressionante: 2560x1440. Questa è la stessa risoluzione di uno schermo Apple Cinema da 30"!
Lo schermo utilizza la tecnologia IPS, fornendo un angolo di visione più ampio e una migliore riproduzione dei colori della più economica TN.
Il pannello è molto lucido. è perfetto per spiare chi sta dietro di te oltre che per guardare dei film.
Sembra il numero modello sia LM270WQ1. Una ricerca su Google di questo modello attualmente mostra cinque risultati, e solo uno di questi in inglese.

Please tell me that display is matte?!!

Toushi -

Citazione da Toushi:

Please tell me that display is matte?!!

Definitely not. It's quite shiny, in fact.

Kyle Wiens -

Citazione da kyle:

Definitely not. It's quite shiny, in fact.

Darn it. From the pictures it looked matte.

Toushi -

Citazione da kyle:

Definitely not. It's quite shiny, in fact.

Ah, shite.... I wanna matte display !!!

moldor -

If you want a matte screen, you should add your detailed petition at http://macmatte.wordpress.com where there are 600+ detailed petitions.

MacMatte -

Citazione da moldor:

Ah, shite.... I wanna matte display !!!

haven't seen a matte mac display since... CRTs

mavis -

Citazione da mavis:

haven't seen a matte mac display since... CRTs

Most of the CRT's I've had weren't matte. Thus the reason I had glare shields for most of them :)

macavenger -

Citazione da macavenger:

Most of the CRT's I've had weren't matte. Thus the reason I had glare shields for most of them :)

24" iMacs had matte displays (model identifier iMac6,1) when first introduced (all white)...one of two reasons I haven't upgrade my 6 24"iMacs.

The other reason Bluetooth full size keyboards (model A1016, white) are only available today with a USB cord. I don't have the specs on the new cabinet width, but the 24" iMac: is nearly 23" wide. A 17" wide, full size keyboard is too big to put in front of a 27" iMac?

Progress?

BobForsberg -

I agree on the lack of a numerical pad--disappointing. I wonder how long until someone does an indepth review of that display? LED IPS displays are $$$ especially if this one renders color as well as some of the other high displays. That makes the price of this machine so much more reasonable.

joelsvoice -

LED Display - is it RGB LED? Is it side lit or back lit?

wkchan -

Citazione da wkchan:

LED Display - is it RGB LED? Is it side lit or back lit?

RGB LCD with LED backlight. It is not an OLED display, which is a common source of confusion (OLED vs LCD, LED backlight vs CCFL).

Diggsby -

Citazione da Diggsby:

RGB LCD with LED backlight. It is not an OLED display, which is a common source of confusion (OLED vs LCD, LED backlight vs CCFL).

Hmmm ... my origin question was not too clear.

I meant to ask:

1. if the LED backlight uses "RGB/tri-color" LEDs or just "white" LEDs (as in the MacBooks).

2. if the LED backlight on the edge of the display or the back of the display.

LG makes a 1920x1200 17.1" LCD panel, LGD01b3, with RGB LED backlight, edge-lit. The LGD01b3 display has a wide color gamut, high contrast with vivid colors but suffers from non-even backlight color (I call it "wild gamut" because I can never get the color profiling right).

Cannot find any info on this LM270WQ1 LCD panel and was hoping that the Teardown guys can tell if the backlight uses RGB LEDs and if the panel was edge-lit.

This LCD panel is IPS and if it also uses RGB LED, then the iMac 27" is really a price break through!

But on second thought, went through the specs and never see "wide gamut" being mentioned -- so likely at this price point, it is likely just a white-LED backlight.

wkchan -

Citazione da kyle:

Definitely not. It's quite shiny, in fact.

Can you please clarify if the actual screen underneath is also glossy? Not matte? If I take off the glass, will I basically have a matte iMac? Thank you in advance!

tokyogiants -

Citazione da tokyogiants:

Can you please clarify if the actual screen underneath is also glossy? Not matte? If I take off the glass, will I basically have a matte iMac? Thank you in advance!

The glass and the LCD itself are both highly glossy.

Andrew Bookholt -

Citazione da andrew:

The glass and the LCD itself are both highly glossy.

Thank you! One last question... Is there any way that I can take off the glass on the glossy LCD without ruining the monitor? Thanks!!!

tokyogiants -

Please disregard the previous question. I just don't know enough about monitors and I dread buying a Mac with a glossy screen.

tokyogiants -

I'm also interested in an answer to wkchan's question regarding whether the imac is backlit by white or tri-color LED's. Thanks!

dotm8rix -

OK, I still don't think we have a definitive answer as to how the new displays are actually "lit". Has it been confirmed whether the screens are edge-lit or back-lit?

Also, regarding some recent display anomalies... I've been involved in a few discussions over at Ars Technica [URL=http://arstechnica.com/apple/news/2009/1...]here[/URL] and [URL=http://episteme.arstechnica.com/eve/foru...]here[/URL].

Ed M -

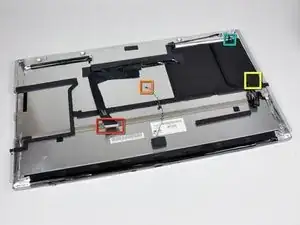

Passo 8

Questo non è bello come il davanti, ma ci sono alcune cose degne di nota qui.
Ci sono quattro cavi che collegano il pannello LCD all'iMac:
DisplayPort
Sensore della temperatura
Retroilluminazione LED
Sincronizzazione della retroilluminazione LED
La cosa importante da notare è che non c'è nessuna scorciatoia speciale dal connettore Mini DisplayPort allo schermo. Il segnale deve passare tramite la scheda madre, quindi dovrai avere il tuo iMac acceso se vuoi mostrare a schermo le immagini da una fonte video esterna.

Re: Mini DisplayPort, you write:

> you'll need to have your iMac powered on if you want to

> display from an external video source.

This means "powered on and running OSX", right?

So, this iMac won't become a decent second display if the logic board goes south, or after quad 2.66GHzs are no longer "fast enough" to read email on?

reynhout -

http://support.apple.com/kb/HT3924

Ed M -

I'm wondering the same thing. No one has done a run through of how using the display port as input works, yet.

Citazione da reynhout:

Re: Mini DisplayPort, you write:

> you'll need to have your iMac powered on if you want to

> display from an external video source.

This means "powered on and running OSX", right?

So, this iMac won't become a decent second display if the logic board goes south, or after quad 2.66GHzs are no longer "fast enough" to read email on?

Serengeti007 -

Isn´t it possible to make a mDP "HUB" by the DisplayPort connector shown on this picture?

Vrumm -

"DisplayPort has Direct Drive"

Vrumm -

What is "led backlight sync"?

fredmundstiegler -

WARNING: be very careful when disconnecting the big flat cable from the motherboard. It doesn't take much to pull it when you try and disconnect the 4 cables, and it might tear/damage the socket on the motherboard. Happened to me :P

H Landsem - 11/03/15

I found the flat cable (display to motherboard) easier to remove (and, more importantly, to replace) if I first removed the tape from the back of the display and disconnected the cable from that end instead of from the end that connects to the motherboard.

barryjaylevine - 12/03/15

Passo 9

Ti sei mai chiesto cosa ci fosse dietro quello schermo nero monolitico? Ecco qui: 27" di iMac senza schermo. In realtà siamo abbastanza sicuri che la misurazione di 27" non abbia molto senso ora che manca lo schermo.
Nota come il piedistallo sia completamente rivolto verso l'alto. Senza il peso del pannello LCD, non c'è abbastanza forza sulla molla per mantenere l'equilibrio.
Il disco rigido occupa il centro dell'unità, mentre il lettore CD e la ventola sono chiaramente visibili sulla destra.

With a bit of work, that would make a great desktop image

zoara -

Hey, I am still a Big Mac!!! Don´t mess with me. My brother mini, doesn´t have a display and no body cares ;P

Vrumm -

Thatd be great to have a High-resolution full-on photo of the internal at the resolution of the new 27" iMac for a background wall paper.

it would look so b@d@ss to have that as a desktop wallpaper sort of like an XRay image

XIII -

DO YOU ALSO SELL THE 2 GB PC3-8500 RAM CHIPS

GRW -

I'm quite irritated with Apple for not providing a slot for a second 3.5" drive. They're the masters of Tight Squeezes; they clearly could have shuffled things around slightly more to add a second drive bay.

A gorgeous media computer like this simply craves twin terabyte drives running in RAID.

MD5Hash -

So how many fans does this iMac have? The final image with the parts arranged neatly looks like it has three.

doctordon -

Citazione da doctordon:

So how many fans does this iMac have? The final image with the parts arranged neatly looks like it has three.

Yes, there's three fans total. One for the CPU, one for hard drive, and one near the optical drive.

Luke Soules -

I second that! That would be an awesome screen background.

Citazione da XIII:

Thatd be great to have a High-resolution full-on photo of the internal at the resolution of the new 27" iMac for a background wall paper.

it would look so b@d@ss to have that as a desktop wallpaper sort of like an XRay image

Thrak -

Hops.

I just upgraded my brand new iMac 27"'s processor from I5 to I7 2.8 GHZ, but must have done some mistake by re mounting it, and the screen keeps black, and makes one beep every 3 seconds.

Any suggestions?

Manuel Agus -

[quote|Manuel Agus]Hops.

I just upgraded my brand new iMac 27"'s processor from I5 to I7 2.8 GHZ, I cant get the CPU thermostat to work, and I don't even find the connector for it.

Manuel Agus -

Step 16

Which one is the GPU and which one is the cpu? the radeon red color is not thereT_T

peaksen chua -

I noticed that the picture doesn't show any Kapton tape on either end of the Airport cable. Is that the way the iMac came or was the tape removed before the picture was taken?

Richard Murray -

Passo 10

Due viti Torx T10 tengono fermo il disco rigido.
Una volta rimosse, il disco rigido si sfila facilmente dal sistema.
L'iMac da 27" include un disco rigido SATA da 1 TB a 7200 rpm (Apple offre un disco rigido opzionale da 2 TB per 250€ in più).
Non c'è spazio qui dentro per un secondo disco rigido, ma puoi certamente sostituire questo da te. Puoi anche ipoteticamente installare un SSD, ma questo sembra un così bel computer multimediale che sarebbe un peccato limitarlo alle attuali capacità degli SSD.
Questo + quello = semplice backup interno con Time Machine!

You say that there isn't room for another drive; does that also go for 2.5" SSDs? Are there extra SATA ports on the logic board for more than the single drive anyway?

CrimsonS -

Citazione da CrimsonS:

You say that there isn't room for another drive; does that also go for 2.5" SSDs? Are there extra SATA ports on the logic board for more than the single drive anyway?

You could fairly easily replace the optical drive with a 2.5" hard drive or SSD. We sell an enclosure that enables you to install a SATA drive instead of the optical drive. There are no extra available internal ports that we noticed.

Luke Soules -

Hi Luke,

To confirm, this enclosure is compatible with the latest Quad-Core i7 27" iMac, correct? Also, do you know of any external enclosures where I could use the superdrive once removed? Or can you recommend an external DVD burner to purchase as a replacement once the internal one has been replaced by an SSD drive?

bradwill -

If i install a SSD instead of the optical drive, could i boot up OSX from the SSD and use the internal 3,5 HDD for media Stuff?

Citazione da luke:

You could fairly easily replace the optical drive with a 2.5" hard drive or SSD. We sell an enclosure that enables you to install a SATA drive instead of the optical drive. There are no extra available internal ports that we noticed.

cocoJim -

Citazione da cocoJim:

If i install a SSD instead of the optical drive, could i boot up OSX from the SSD and use the internal 3,5 HDD for media Stuff?

That should work just fine. You would just select the SSD in Startup Disk as soon as you get the drive in there with OS X installed.

Joe -

What model WD 1TB is this one? the Caviar Black or the RE4 model?

franquinet -

Citazione da joe:

That should work just fine. You would just select the SSD in Startup Disk as soon as you get the drive in there with OS X installed.

There should be a 3.5" drive with both an SSD and a high capacity HDD on it (dual SATA). The SSD wouldn't need to be that big, say 32 or 64GB , since the most active files and swap space would reside there. I guess it would only apply to the iMac though.

Given how much the SSD in my MBP has sped things up, I almost feel installing an SSD in a new iMac is a necessity.

MatTrue -

You would have to downgrade the internal Hard Disk to less than the size of the optical bay HD or use the optical bay HD as the boot drive for Time Machine backups.

The Time Machine backup disk must always be larger than the disk it backs up from, AFAIR.

TonyWong -

Citazione da TonyWong:

You would have to downgrade the internal Hard Disk to less than the size of the optical bay HD or use the optical bay HD as the boot drive for Time Machine backups.

The Time Machine backup disk must always be larger than the disk it backs up from, AFAIR.

Nope, you can choose what you backup, and if it fits, it'll do it.

Magneto -

Which 1TB hard drive is used - is it the Hitachi?

And I wonder which drive they've chosen for the 2TB option?

string -

Citazione da CrimsonS:

You say that there isn't room for another drive; does that also go for 2.5" SSDs? Are there extra SATA ports on the logic board for more than the single drive anyway?

You can maybe use SATA port multiplier and, from photos, I would say that there is enough space for 2,5" SSD behind GPU heat-pipes ? right ? (although maybe it is not best idea to put SSD close to heatpipes :D)

kovacm -

Citazione da franquinet:

What model WD 1TB is this one? the Caviar Black or the RE4 model?

It's a Caviar Black, model WD1001FALS.

Luke Soules -

Citazione da kovacm:

You can maybe use SATA port multiplier and, from photos, I would say that there is enough space for 2,5" SSD behind GPU heat-pipes ? right ? (although maybe it is not best idea to put SSD close to heatpipes :D)

I'd like to try the following:

SATA 1: 120GB OCZ Vertex SSD

SATA 2-> port multiplier

1: 120GB OCZ Vertex SSD

2: SATA to eSATA and thread out cable from iMAC

Then put the SSDs in software RAID 0 and still have a nice eSATA port coming out...

Of course this would require the SATA controller to support port multipliers, any idea what chipset it is??

zeigerpuppy -

HI, is there any heating sensor will have to be disabled, if I replace the optial drive with SSD. I notice someone replace the HDD with SSD, then the heating sys reports error and the fans go nuts. So how about optial drive, the same?

simonzhao -

Specifically what HDD model was in the iMac? Does it have 16mb or 32mb cache also?

Thanks.

amtechfox -

Citazione da franquinet:

What model WD 1TB is this one? the Caviar Black or the RE4 model?

It is a 1TB Seagate.

Manuel Agus -

Apple added a build-to-order option for a 256GB SSD in the 2010 iMacs, and you can have both the SSD and a 1- or 2-TB hard drive. Anyone know where the SSD goes? Can you buy a 2010 iMac without an SSD and add one yourself?

Michael -

This article was written about the "Late 2009" edition. The Mid 2010 update now has the option for both a Serial ATA Drive + a Solid State Drive. How do both of these drives fit into the enclosure? Has there been substantial changes to the internals to allow this? Can you add the second after purchase?

Mark -

Passo 11

Scolleghiamo le antenne e rimuoviamo la scheda AirPort.
Una sola vite Torx T6 fissa la scheda wireless PCIe alla scheda proprietaria sulla quale è montata.
Anche dopo aver rimosso la schermatura EMI, è difficile leggere il modello del chip WiFi principale. È un Atheros AR9280.
I due chip identici vicino ai connettori delle antenne sono amplificatori di potenza SiGe Semiconductor 2593A20.

Passo 12

Qualche vite più tardi...
L'alimentatore è fuori!
Oooh, che bei colori!
Sia i componenti blu sia quelli rossi sono condensatori. Sfortunatamente non avevano abbastanza scritte su di loro per capire la loro capacità.
La loro capacità è di 27,5 per entrambi i rossi, 15 per il blu contro la scheda e 20 per gli altri due blu visibili (misurati sempre in microFarad).
L'alimentatore fornisce 12 V a 25,8 A, per un'uscita totale di 310 W. Questo è l'alimentatore più potente che abbiamo mai visto in un iMac.

The tech specs for the 27" iMac say it can be up to 365W, so I suspect the Quad Core variant has an even larger power supply.

djfriar -

Citazione da djfriar:

The tech specs for the 27" iMac say it can be up to 365W, so I suspect the Quad Core variant has an even larger power supply.

I think Apple may be talking input power, while we're talking output. An input of 365 watts and output of 310 watts is 85% efficiency, which is typical for a good power supply.

Luke Soules -

Citazione da luke:

I think Apple may be talking input power, while we're talking output. An input of 365 watts and output of 310 watts is 85% efficiency, which is typical for a good power supply.

And I learn something new from this site yet again. :)

djfriar -

Whatinhell is the second board by the PS? It's definitely something not seen before.

NikkiWraith -

Citazione da NikkiWraith:

Whatinhell is the second board by the PS? It's definitely something not seen before.

I believe that's the backlight board for the display.

Ben Eisenman -

Why did you ignore the Electrolytic Capacitors and their values?

These caps are the components most prone to failure.

This is especially true of PS built in the latter part of the 2000 decade. Somewhere around 2006 - 2008 the electrolytic capacitor supply chain was flooded with caps with a built-in failure mechanism due to being made with incomplete data from industrial espionage gone wrong. My Late 2009 iMac PS failed and its capacitors showed the physical signs of this failure mechanism. Replacing caps is easy and cheap. I had a VISIO Television that had the bad caps and failed. It cost $15 to repair a TV that originally cost just under $1,000.

virtuousflapper - 26/10/17

I understand these guides are community driven but can we please maintain some kind of professionalism with these guides. I think creating a bullet point for "ooh, pretty colors!" doesnt really ecapsulate a proper step to any guide. ifixit originally was made to be a facsimile of internal Apple repair PDFs. and they dont use "ooooh the pretty colors" anywhere.

John Rosario -

This teardown is 14 years old... You should be able to find the information you need by browsing through the other guides iFixit has for this machine, or looking around elsewhere on the internet.

Chris Green -

Also where are the screw points for the dissasembly. all I see is "a couple of screws later" what is that!?

John Rosario -

Passo 13

La scheda Bluetooth è nell'angolo del computer, messa a terra con la copertura. Abbiamo iniziato la procedura di rimozione scollegando il cavo blu dell'antenna.
Questa scheda è una delle poche componenti tenuta ferma da una vite Torx T8 (invece di una T10).

Passo 14

Questo potrebbe essere il componente più deludente di questo iMac: il SuperDrive 8x.
Il fatto che non ci sia un lettore Blu-ray qui dentro comporta un sacco di dolore.
Avanti Apple, gli iMac avevano i SuperDrive 8x nel 2005. Il SuperDrive oggi non sembra più tanto super.
La buona notizia è che è un normale lettore CD SATA sottile. Il lettore che Apple avrebbe dovuto includere è questo lettore Blu-ray Panasonic UJ-135.
Ad Apple manca il supporto software per leggere i Blu-ray protetti, quindi, se installi un lettore Blu-ray, dovrai avviare con Windows per goderti lo spettacolo.

Are there any slot loading blu-ray drives we can replace this with?

Toushi -

Citazione da Toushi:

Are there any slot loading blu-ray drives we can replace this with?

Yup, the Panasonic UJ-135-A will work just fine.

Kyle Wiens -

Citazione da kyle:

Yup, the Panasonic UJ-135-A will work just fine.

Can this trik be done also on a iMac 24" - 2007 (2.4GHz) ?

rudver -

Blu-ray display 1080p. What is the experience indeed of watching a movie with that black bar tags? And wait I am not considering here in "FullScreen" Youtube, mobile DTV, iTunes Movies and DVD "Super" Drive. All of that might seems very "distorted" by the 2560x1440 resolution. The ATI will have to work a lot to upscale all of this.

Vrumm -

Citazione da Toushi:

Are there any slot loading blu-ray drives we can replace this with?

A stand alone Blu-ray might be in the works, similar to the external usb/firewire devices for the MacBook Air.

Built in, they really are a "bag of hurt", as Steve pointed out.

BobForsberg -

What about putting a SSD drive in here instead

rapdigital -

Citazione da kyle:

Yup, the Panasonic UJ-135-A will work just fine.

The web site says 12.7 mm while the original drive says 12.5 mm. Small difference, but could be a problem closing the case or aligning the disc in the slot.

BradMacPro -

Citazione da BradMacPro:

The web site says 12.7 mm while the original drive says 12.5 mm. Small difference, but could be a problem closing the case or aligning the disc in the slot.

I think they were just a bit lazy with the measurements here.. look at the image of the superdrive and google the code. I'm pretty sure that it is actualy a 12.7, not .5 (i've NEVER seen a 12.5 drive.. anywhere), so it will be a perfect fit.

I recommend the UJ-235A over the 135 they mention in the article too, as it can burn blu-ray discs at 4x.

iTems -

Citazione da iTems:

I think they were just a bit lazy with the measurements here.. look at the image of the superdrive and google the code. I'm pretty sure that it is actualy a 12.7, not .5 (i've NEVER seen a 12.5 drive.. anywhere), so it will be a perfect fit.

I recommend the UJ-235A over the 135 they mention in the article too, as it can burn blu-ray discs at 4x.

iTems, you're right, that's a typo. It is indeed a 12.7mm drive, so there's no difference between the SuperDrive and Panasonic's slim Blu-ray drives. If you want to burn Blu-ray (and have a bigger budget), the UJ-235 drive should work fine as well.

Luke Soules -

Hey Luke,

Just installed Panasonic's UJ-235A into my mid 2010 27" iMac & it accepted a disc but that's all it's doing. Clicking 'About this Mac' then 'More Info' & the drive is detected - OS X recognises it & lists all its capabilities but can't see it in Finder, VLC or any other program. The keyboard eject button doesn't work. Tried getting the disc out using the 'drutil eject' command. The drive makes a noise like it's going to eject, but doesn't.

Have you, or anyone else, installed this drive & had any luck using it.

Any suggestions would appreciated.

Thanks! Paul

Paul Rossi -

imacs in 2003 had superdrives too!

Chris Green -

Is it possible to put a 1TB WD laptop hard drive here instead? I would think you would need some sort of mounting apparatus.

silvergirl1283 -

I accidentally slipped in a SD memory card into the superdrive thinking it was the SD slot. Does anybody know it would be possible to take apart the superdrive?

Danny Huynh -

Citazione da Danny Huynh:

I accidentally slipped in a SD memory card into the superdrive thinking it was the SD slot. Does anybody know it would be possible to take apart the superdrive?

The guide to remove the optical drive can be found here. Please do not use this teardown as a repair guide, as there are many many steps missing. As explained at the top of the page, "Teardowns provide a look inside a device and should not be used as disassembly instructions." A guide for opening up your optical drive can be found here. Hope that helps!

Andrew Bookholt -

Passo 15

Apple ha fatto un buon uso dello spazio aggiuntivo disponibile per includere una grande e silenziosa ventola con un mucchio di pale che ruotano a bassa velocità.

Passo 16

Ci vogliono due mani per rimuovere la massiccia scheda madre. Con la cavità per la RAM aperta sotto l'iMac, cerca di spingere la scheda madre verso l'alto (verso la fotocamera iSight) con il pollice,per favorire il rilascio della scheda madre.
Nota quanto lontane sono la GPU e la CPU e come abbiano dei dissipatori separati ai lati opposti del computer. Questa progettazione termica piuttosto complessa ha permesso ad Apple di aggiornare l'iMac ai processori desktop di Intel.

Passo 17

Apple ha finalmente aggiunto un lettore di schede SD all'iMac. Questa può essere una delle funzioni più economiche che Apple potesse aggiungere, ma si dimostrerà molto utile. Ora possiamo buttare tutti i nostri lettori SD USB!
Solo una vite Torx T8 fissa il lettore alla copertura. Il chip è etichettato GL137A.

Passo 18

Rimuoviamo il sensore infrarossi (IR) necessario per usare il telecomando Apple.
Nella seconda immagine stiamo rimuovendo l'insieme centrale dei cavi e sollevando la scheda madre.
Questo computer ha più metri di cavo di qualsiasi iMac abbiamo mai smontato.

"feat of wire"? That's quite feat!

rpmurray -

A nice deconstruction as always.

Hahaha step 23 had me in stitches... the Apple logo now serves as a secret antenna for wifi.

How sly of Apple.

Just a thought... My Unibody Macbook Pro has a fairly enclosed design where is the wifi antenna inside?

I think its a shame that Apple have neglected the stunning internal design of the early iMac G5s!... they were a work of art inside.

But now... theres all this cable and clutter... I wouldnt mind if they made the imac less tapered on the back (it'd still be the thinnest and most stunning all-in-one) if they would make better cooling and repairing easier with the internals better laid out.

IMHO.

Still love the new iMac tho!

lemas1 -

Citazione da lemas1:

A nice deconstruction as always.

Hahaha step 23 had me in stitches... the Apple logo now serves as a secret antenna for wifi.

How sly of Apple.

Just a thought... My Unibody Macbook Pro has a fairly enclosed design where is the wifi antenna inside?

If it's anything like the original Macbook Pros, which I used to be a technician for, they wrapped the antennae cables around the edges of the screen. Since those screens are now 100% glass, I wouldn't be surprised if they left the wires there since it's the only part of the system not made of aluminum!

MD5Hash -

just curious, after pulling this baby apart, how would you rate its value on a parts basis?

golook -

Citazione da lemas1:

Just a thought... My Unibody Macbook Pro has a fairly enclosed design where is the wifi antenna inside?

In the iFixit teardown of the unibody MBP, they mention that the wireless antenna is located in the black plastic display hinge.

waffle911 -

Citazione da lemas1:

I think its a shame that Apple have neglected the stunning internal design of the early iMac G5s!... they were a work of art inside. But now... theres all this cable and clutter...

Yes, seriously!

http://files.macbidouille.com/mbv2/news/...

A swansong for the G5, I guess ;)

Diggsby -

Equally gorgeous on the inside, a Black PCB, very classy.

That's quite some ventilation though, can't imagine what the 4850 would use in the way of copperware...

deetex -

Citazione da Diggsby:

Yes, seriously!

http://files.macbidouille.com/mbv2/news/...

A swansong for the G5, I guess ;)

Yes, it is/was a beauty to behold, but that was largely due to the fact that there were several "user installable" parts. For example, midplane board, hard drive, RAM, etc. Funny thing is that people still needed help simply installing RAM! Apple rethought this strategy, because subsequent iMac models did away with this clean internal design (and so many user-installable parts).

Jeremy D -

Citazione da Jeremy D:

I'll take that flame bait, but not hook, line and sinker...

First of all, you must be easily amazed, because Apple has always had higher premiums on their components. They can only leverage their monopoly on stuff like NAND flash memory prices.

Not a "magic" WD hard drive, but neither are the Seagate drives (their other drive supplier). Apple generally maintains more strict product tolerances from vendor for things like RAM latency, hard disk burn-in and MTBF. This usually means Apple staff "qualifies" goods before getting them into your hands. This adds to cost--esp if Apple has their own special recipe of firmware to drop onto drives (e.g. server-grade drives).

Ok, I'll stop there.

All Mac users missed the myriad adverts touting "2TB hard drives only $179!", because we're ignorant Mac zealots.

You can go back to building your frankenstein PC--complete with blinky blue/green/red UV-lighted case mod and we'll stick with our stupid Macs.

Maybe you should remove this site from your bookmarks and/or Google search history, too? Oh, wait... you're a web troll--it's your job to categorically dismiss "stupid" Mac users.

I guess your mission is accomplished. &&!&!

well, im sorry that you feel that way, mac was the best personal computer, of the 1980's and early 1990's and i do agree that the technology is ususally a step behind the standard, and a higher price than what it's worth, but "Mac Zealots" is kind of an overstatement, sure some people like macs, some people love macs, and some people hate macs, but for my self, i am a PC, and a Mac, I've been doing PC work since the 486, but the mac always has and still has an advantage over a PC, (My Core 2 Quad PC would out-perform any mac mini, any day) but PC's have something macs will never have, (open development, expandability, most 3rd party hardware and software, and for the longest time, a standard CPU archetecture) and macs have something PC's will never have (a rock solid, and secure OS, a sleek style, look, and computing power higher than that of an equaly speced pc)

Chris Green -

[quote|macs have something PC's will never have (a rock solid, and secure OS, a sleek style, look, and computing power higher than that of an equaly speced pc)[/quote]

The term PC does not mean windows bud. You forgot about linux, mainly, Ubuntu. Rock solid OS, OPEN SOURCE software that is community maintained, and the speed to run circles around any mac of equal spec, all with a flexibility and low price of building a PC one part at a time. YOU can choose exactly what goes in it.

Joe C -

Citazione da Chris Green:

... but "Mac Zealots" is kind of an overstatement, sure some people like macs, some people love macs, and some people hate macs, but for my self, i am a PC, and a Mac...

@Chris - the intent of my post was to take the pi$$ out of what appeared (to me) to be Mac flame-bait from. "Mac zealot" was a self-depricating reference to steal Joe C's "thunder" if/when using said term himself.

The point is that life is not as black and white as "I'm a Mac"/"I'm a PC"--as Joe C insightfully points out in his later post re: "PC" definition. Apple's and Microsoft's ad campaigns try to stoke this outmoded argument. We know how common it is for people to work on Windows PC at the office and Macs at home.

But "PC" statistically refers to Windows PCs (given the slight market share Linux has).

(Reasonably) technically savvy users reading/posting to this site should be somewhat aware of how versatile, lightweight and supported different flavors of Linux can be--compared to Macs and/or Windows PCs.

Nevermind . . . this a waste of everyone's time. Sorry for the trivial distraction. Thanks Joe C. Happy New Year.

Jeremy D -

Passo 19

Gli altoparlanti! Dei grandi altoparlanti.
Abbiamo provato il suono primo di smontare il tutto, e siamo rimasti abbastanza stupiti. Apple ha aumentato di molto la potenza audio dell'iMac, in proporzione alle dimensioni dello schermo.
Mentre gli speaker sono negli angoli in basso dell'iMac, Apple ha saggiamente posizionato il microfono in alto (vicino alla fotocamera iSight). Questo rende possibile utilizzare l'audio interno per le videochiamate.

May I reuse these two speakers to a audio jack output?

md.tsai - 22/06/20

Passo 20

Dopo aver rimosso la scheda madre, troviamo un paio di ventole in più.
Svitiamo le loro viti e le rimuoviamo dal computer.

What’s that center fan called? The one under the hard drive?

Thanks!

whereisraffi - 27/01/19

Passo 21

Posso avere una dissipazione di calore? Per tenere fresco e felice l'iMac, Apple ha incluso sei sensori della temperatura, tre ventole e due giganteschi dissipatori.
Per mettere in prospettiva le dimensioni massive dei dissipatori, guarda le dimensioni relative delle porte USB sulla scheda in basso a sinistra.
Nota la batteria PRAM sulla scheda madre (disco circolare argento) per mantenere la data e l'ora quando l'alimentazione viene scollegata. Quando sostituisci la batteria stai attento a non forzare la parte superiore in plastica che la tiene ferma.
Il processore è removibile, ma c'è un adesivo "Garanzia invalidata se rimosso" sopra una delle viti del dissipatore.
Il nostro processore E7600 Core 2 Duo a 3,06 GHz è una CPU con socket T / LGA 775. Ci sono alcuni chip Core 2 Quad che utilizzano la stessa presa, ma non sappiamo se sono compatibili. Gli i5 e i7 quad core inclusi nella versione costosa dell'iMac da 27" usano una presa diversa: socket H / LGA 1156.

Is it possible to drop in a quad core later? I am thinking about getting this one and dropping in the quad later when I have the money.

Toushi -

You mean this thing has a generic-sized portable graphics card that can be swapped with something else? Brilliant. Should have shipped with a 1GB card at least.

AeronPeryton -

Citazione da AeronPeryton:

You mean this thing has a generic-sized portable graphics card that can be swapped with something else? Brilliant. Should have shipped with a 1GB card at least.

I really hope so. The graphics card it the only thing that is stopping me from getting one right now!

Simie -

Citazione da Toushi:

Is it possible to drop in a quad core later? I am thinking about getting this one and dropping in the quad later when I have the money.

There's not that much difference in price between the two - I think you're better off getting it from day 1.

moldor -

Great work Guys, and done with lightning speed just after the release. Hats off and looking out for The Apple Tablet That Will Rule Them All, grin

multimedia -

Is there any mini-DisplayPort "chip" controller? I mean what differer at Mother Board, in order to not allow video-in at the 21.5" iMac. I really want to now!!! What is the specification and model of the mDP? Is it mDP 1.0 or 1.2? Is it compatible to the HDMI 1.4, yet?

Vrumm -

Does the 21.5 inch model also use a socketed CPU? I have a low-power quad core (Q9550S) waiting for a worthy home...

alienlogic -

Citazione da Toushi:

Is it possible to drop in a quad core later? I am thinking about getting this one and dropping in the quad later when I have the money.

No. This iMac uses a different socket than the i5 or i7. If you want a quadcore iMac, just buy one ;)

TakkU -

What's the chipset used in the Core2Duo logic board?

Chispa -

Citazione da TakkU:

No. This iMac uses a different socket than the i5 or i7. If you want a quadcore iMac, just buy one ;)

There are quad core chips out there that are not i5s or i7s. I am just as curious what is the socket type, if it is a LGA 755 type I could see the potential to put in a Q9550S.

trance2 -

Citazione da trance2:

There are quad core chips out there that are not i5s or i7s. I am just as curious what is the socket type, if it is a LGA 755 type I could see the potential to put in a Q9550S.

I so want to drop in a Q9550 into my new iMac. If it weren't for that warranty voiding sticker.. Anyone want to try? In theory it should work. Works in my Hackintosh just fine.

negatv -

Citazione da Toushi:

Is it possible to drop in a quad core later? I am thinking about getting this one and dropping in the quad later when I have the money.

Can we put a extreme i7 in the quad core model??? and how about a ATI Mobility Radeon HD 4870 X2 in place of the existing 4850 card??

nimoryan -

Citazione da nimoryan:

Can we put a extreme i7 in the quad core model??? and how about a ATI Mobility Radeon HD 4870 X2 in place of the existing 4850 card??

OK so duh on the processor so let change that to 2.93ghz i7 and the 4870 x2 video card

nimoryan -

Come on guys, show us what's under the heatsinks, that would be great, i want to upgrade my cpu, but i want to see it first

Chris Green -

Citazione da Toushi:

Is it possible to drop in a quad core later? I am thinking about getting this one and dropping in the quad later when I have the money.

Oh, a wonderful idea! I'd love to see the iFixit folks give this a try and report on the change in performance. Then they could sell us the proper CPU and provide the instructions for accomplishing the task.

barryjaylevine -

Does anyone know if there are any mainboard (off the video card) graphics chips (e.g., scaler), or are the DisplayPort signals routed directly from the GPU to the LCD panel and DisplayPort connector?

Chris -

Concerning C2D Quad-core replacements:

After looking at the CPU specs in detail for the E7600 and E8600 C2D parts and comparing them to the various available C2Q parts, it seems to require one of the 45nm QxxxxS parts to even have a chance of working, with the Q9505S or Q9550S being the most likely of the higher-end ones. The power regulator specs/etc. are different for the non-S parts.

I'd be happy to try it, pretty sure the worst thing that will happen is that it won't boot due to lack of C2E (Stop-Grant) support or confusion about having 4 cores instead of 2. It could also come up but refuse to recognize the other 2 cores.

Erich Boleyn -

Citazione da Erich Boleyn:

Concerning C2D Quad-core replacements:

After looking at the CPU specs in detail for the E7600 and E8600 C2D parts and comparing them to the various available C2Q parts, it seems to require one of the 45nm QxxxxS parts to even have a chance of working, with the Q9505S or Q9550S being the most likely of the higher-end ones. The power regulator specs/etc. are different for the non-S parts.

I'd be happy to try it, pretty sure the worst thing that will happen is that it won't boot due to lack of C2E (Stop-Grant) support or confusion about having 4 cores instead of 2. It could also come up but refuse to recognize the other 2 cores.

Hmm. Is a Q9550S CPU the only thing that you are lacking?

kmohanram -

Hi is it possible to replace the USB ports on this Mac? I have 2 dead out of 4 and its driving me crazy!!

Julian - 16/05/14

"View high resolution shots of the front and back."

Sorry, but those "front" and "back" links are dead. Please update with new links. Those are very important photos. Thanks.

James Wages - 15/07/17

Passo 22

rimuoviamo la scheda figlia della GPU.
Il nostro modello base da 27" include un processore grafico ATI Radeon HD 4670 con 256 MB di di memoria GDRR3.
L'enorme quantità di etichette sul retro della scheda figlia della scheda madre è opprimente. Ma che cosa stavano pensando?
È ovvio che gli ingegneri di Apple non abbiano progettato questa scheda figlia: è una normale scheda utilizzata in diversi prodotti.

it's possible to remove graphic card and replace it with the same but 512mb vram?

vinyltrack -

I'd be interested to know if you can replace it with a better one. You say these are generic parts? Where can we get them? Or are they only available to manufacturers?

Simie -

I really want to know if this is true!? i need to upgrade... bad.

Jason -

Please add pictures with the heatsinks removed both for the GPU and the Logic Board

ibrian -

So is that still a laptop card, or like the proc, are we getting desktop class cards now?

joelsvoice -

Citazione da ibrian:

Please add pictures with the heatsinks removed both for the GPU and the Logic Board

I agree! You never take the heatsinks off! Come on!

ericathornton -

What's the name of that supposedly standardized slot? I've only ever seen Apple use it; I recall it was the same in the previous two revisions as well.

MD5Hash -

Citazione da MD5Hash:

What's the name of that supposedly standardized slot? I've only ever seen Apple use it; I recall it was the same in the previous two revisions as well.

AXIOM (ATI) respectively MXM (NVIDIA). IF Apple uses that (do they?)

ibrian -

I don't get it. On this model you can change the graphic card?

Bilstoy77 -

so is it possible to replace graphic card in any 27 inch imac?

i was rly sad when i have seen that 512mb card in i7 model

xyras -

Does anyone know what size the counter-sunk screw are securing the GPU heatsink? I snapped one over the weekend doing a teardown to redo the thermal paste.

Akshunhiro - 12/02/17

Thoughts on what you do if the case for the Pram battery gets disconnected slightly?

Scott Schneiderman - 31/03/19

hi efi chip???

luis cruz -

Passo 23

Questa antenna porta al retro del logo Apple? Noi lo supponiamo... ti stai chiedendo perché?
Il logo Apple non è solo per l'estetica: ora ha un compito preciso. I precedenti iMac avevano la parte anteriore in alluminio e la posteriore in plastica. Questo ha una copertura tutta in alluminio, fantastica per l'aspetto, ma terribile per il WiFi. Il logo Apple è l'unica zona in plastica dell'iMac, e Apple ci ha integrato un'antenna AirPort.

Passo 24

Dopo uno smontaggio così noioso, non puoi incolparci per aver impilato il tutto in una mostruosa catasta di componenti.
Comunque, a parte i nostri maledetti sensi di colpa, essendo i carini e fantastici professionisti che siamo, abbiamo sentito uno stimolo e un leggero senso di responsabilità nel farlo correttamente.
Ecco l'immagine finale da vedere per tutti. Godetevela!
Se pensi che questo smontaggio non sia stato abbastanza per soddisfare la tua brama, Vai a vedere lo smontaggio del Magic Mouse, fatto dai nostri amichevoli vicini di iFixit.

Hi, I recently change the logic board of one of this imacs, and never starts MacOS... Always stay in the apple logo... And It's extremely hot on left side (powersupply)... Some ideas?

I rebooted with ALT but begin a Firmware upgrate proccess

Mr Drap - 20/06/14

Update1: The repair COMMAND+R Works, open the Disk Utility the Machintohs HD doesn't mount... Serial info problem??

UPDATE2: Finally with blank board serializer I put the serial info and works great

Mr Drap - 20/06/14

Autore

Miroslav Djuric

158138 Reputazione

21 commenti

Cannot wait for the mac mini server teardown.

elurker -

I cannot wait for the 21.5" iMac teardown comparison to this regarding the mDP video-in capabilities. Great job!!! Very nice and impressive work :)

Vrumm -

Citazione da elurker:

Cannot wait for the mac mini server teardown.

We're not planning on doing a teardown of the Mac mini server (we're already done three teardowns this week), but our friends over at macminicolo.net did a teardown of the new mini.

Luke Soules -

Awesome pics... I'm craving one of these iMacs, big time.

It wasn't mentioned: what's the brand of the internal HD?

dcp -

Apple western digital/seagate depending on the location

Tomek Fazlejew - 03/02/21

i wnat to know if i can't remove the foot of the new imac 27 to travel with this

julesdakar -

apple screen isn't lcd it's led

hiimbob -

Citazione da hiimbob:

apple screen isn't lcd it's led

It's an LED-backlit LCD.

David Patierno -

Can anyone confirm if it would be possible to feed a SATA cable into the Memory Door area, thus allowing the cable to exit via the memory door opening? I can't tell from the pictures if there is enough room to get the cable into that area and then out the door. Obviously with the door removed the cable would feed out so it's more a question of getting the cable into that area. Then I could modify the door to allow the cable to feed out while still remaining closed.

Bruce Gates -

Apple has the option for both a Serial ATA Drive + a Solid State Drive. How do both of these drives fit into the enclosure? Can you add the second after purchase?

Mark -

That would be interresting to know. Sounds like it would be quite easy to add this SSD later.

Simon Haugsten Hansen -

hey i have one iMac late 2009 27'' model, with ATI Radeon HD 4850 512 MB GPU, and a 2.66 GHz Intel Core i5 CPU. do you guys know how i can upgrade them, (if possible)? I don't care about the warranty cause it's expired anyway

Raj Patel -

Anyone still here? Need to get out of the grey screen!

vpkc15 - 23/10/14

Just curious if anyone has ever taken apart an iMac and used it's guts to create another pc without the internal display?

Paul Garcia - 12/04/16

Paul,

That's an interesting idea (forget the internal display and use the rest in another case with a stand-alone display connected through the Displayport/Thunderbolt port). Just so happens I have an iMac with bad internal video (black screen, only two LEDs on motherboard lit). I'll try plugging in a Displayport display I have here and, if the unit actually works, I'll start the disassembly and re-packaging using a spare PC case I have in my garage. Nice project idea!

barryjaylevine - 13/04/16

Thank you for details and wit.

• Step 5 - yah, I found the magnet that's in the upper LH corner by accident (I use it to hold documents with a paperclip when I need to reference them when typing..).

• Step 7 - Yes, the screen is VERY glossy! Contrary to some beliefs re: placement of a desk, I tried placing my desk such that I'm facing the door, but my back is to a window.. turns out that I don't miss out on seeing what's going on outside after all.

Club - 25/04/16

Would a screen from a 27 inch 2009 fit on a late 2013 model?

Zo B - 07/06/16

is there anyway I could order all of the components to a 2015 imac retina 5k and install them into a 2010 27 inch model?

Curt mccarl - 16/06/17

I'm trying to remove the stand but my screws got stripped. Is there's anyway to take the stand off from the inside??

Pnoise - 21/06/17

Pnoise…did you have any luck with this…

Mathew Wright - 30/07/18

hello,

I have an old mid 2010 iMac 27” i7, which I upgraded with a SSD. It works perfectly but I have problems in data transfer. I want to know if I can use one of the internal SATA ports (that of the Super Drive or another spare one) to come out with a USB 3 port. Thank you for your Help

Fabio - 30/10/18
