Sony Clie PEG-UX50 Rear Case Replacement

Scritto Da: Christopher M Garcia
  • Commenti: 0
Sony Clie PEG-UX50 Rear Case Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

10 minuti

Introduzione

Rear Cover Removal allows the inside of the Clie to be exposed for further replacement of internal components

  1. FrYOI5i5ZwCFKFFV

    • Tools Needed

    • Phillips Screwdriver

    • Tweezers

  2. jcP2mN6PUlGX1rGM
    jcP2mN6PUlGX1rGM
    CDtZgma3gPcysq6a
    Cy3SPTyxIAQwZvNr

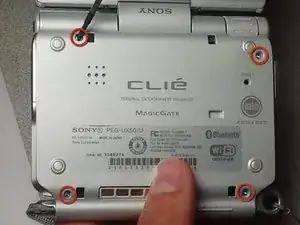

    • Using Phillips screwdriver, remove 4 screws from the rear cover.

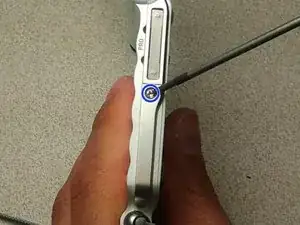

    • Remove 1 screw from the right side.

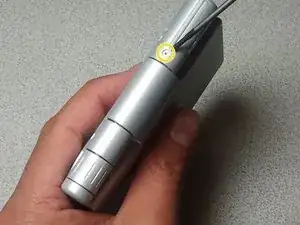

    • Remove 1 screw from the top

  3. AxpFsm6iBFQBccxl
    AxpFsm6iBFQBccxl
    xZNPdUFKhVtJDdml

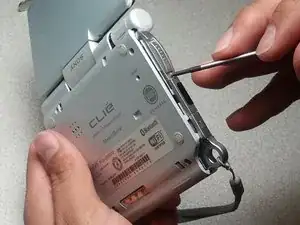

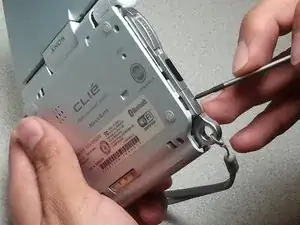

    • Gently pry rear cover to remove USB port cover and Hold Switch.

  4. uytavsIOKBJjugN2
    uytavsIOKBJjugN2
    E5NJrhtcUBGEAgDY

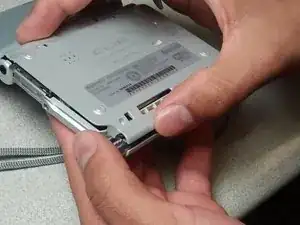

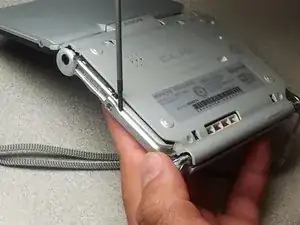

    • Remove side cover.

    • Gently pull the rear cover to separate from device.

  5. KhA5Yw1DvSukinZ4

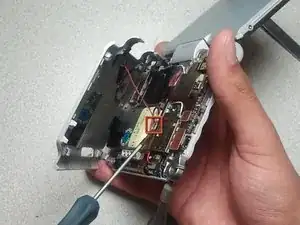

    • Slowly pull rear cover from device being careful not to pull the speaker connection wire.

    • Remove speaker wire from device.

    • The rear cover is now separated from the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
