Sony DVP-NS325 Optical Drive Replacement

Scritto Da: isaiah davila
  • Commenti: 0
Sony DVP-NS325 Optical Drive Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

15 - 25 minuti

Introduzione

The optical drive is used to play and read the CDs that are entered. The CD Reader is one if not the most important pieces given it's used to read the CD to run the movie that is chosen.

  1. iNKnRhQwmm5U3xyU
    iNKnRhQwmm5U3xyU
    gYIUODX2rqitdq1e
    tVX2knh6Jr4JAbbh

    • Use a Phillips screwdriver to unscrew the five screws.

  2. qtucIPw1pJyMJP5q
    qtucIPw1pJyMJP5q
    Ia5V4PwuNjqtKAga
    Zvl3RBLDUFsAt5tP

    • Use the Philips screwdriver to remove the screws located on the sides and the back.

    • Not shown are the right side screw and the middle screw.

  3. TMDEQ3Iyru1fWT1v

    • Use a spudger to separate the case from the chassis.

    • Remove the case.

  4. 5yUf4l1GnXrrFMS6
    5yUf4l1GnXrrFMS6
    UOGbN4XpJKVtER6J
    Rim5R3WdTR6bPQIe

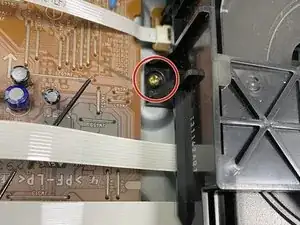

    • The Location of the three screws holding the CD reader in place.

  5. gUBimADHFBlJr1Ta

    • Use a Phillips screwdriver to remove all three screws holding the CD reader in position.

    • Two screws not shown.

  6. avLsFgxHXHiXMZRV
    avLsFgxHXHiXMZRV
    v2uuoCyukGxAftE5

    • Disconnect all of the optical drive motherboard connections.

  7. NKJa6auUS64xcYCl
    NKJa6auUS64xcYCl
    EJBT1YHc2CvAcFDw
    5RSJBhcJUKOUAKEo

    • Lift the four retention clips holding the face of the DVD player in place.

    • Two clips are not shown, left and bottom right side clips.

  8. GQ4SJK5f5IVNvuqh

    • Remove the front face of the DVD player by pulling it away from the device.

  9. OkBrPJVnhNKTmMPp

    • Remove the optical drive.

Conclusione

To reassemble your device, follow these instructions in reverse order.
