Sony Ericsson xPeria Active Headphone Jack Replacement

Difficoltà

Easy

Passi

5

Tempo Necessario

5 minuti

Introduzione

The headphone jack will need to be replaced it it no longer outputs audio.

  1. wvsQT3MHV3bZjdRT
    wvsQT3MHV3bZjdRT
    UNxYNDIVMwrFq4Pr
    gbJJJ3BjSST4Felq

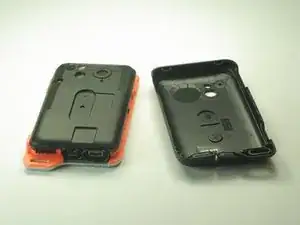

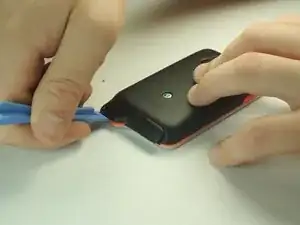

    • Open the flaps and remove the back cover using the plastic opening device.

  2. odLCBBAA1anpFM53
    odLCBBAA1anpFM53
    ryTMG5WHKeNPpCkM

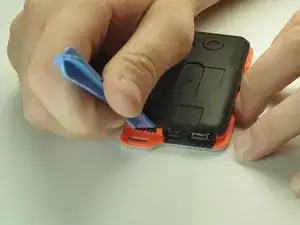

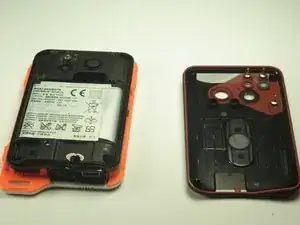

    • Remove the battery shield with the plastic opening device.

  3. UpS3tPTRQwWfmhDd
    UpS3tPTRQwWfmhDd
    NJfqUVAjLGxtL3Yu

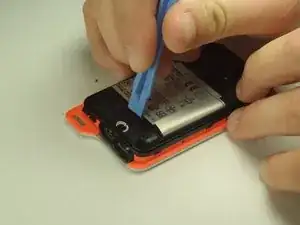

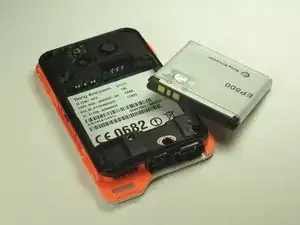

    • Remove the battery.

  4. MEEZfihYuXQASEfH

    • Unscrew the 5mm screws with the T5 head.

    • Unscrew the 6mm screw with the T6 head.

  5. MDqucJaGs1gcfKDh
    MDqucJaGs1gcfKDh
    LVVoWu1vNuZ1o4Hj

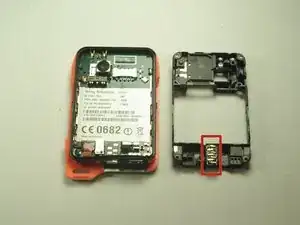

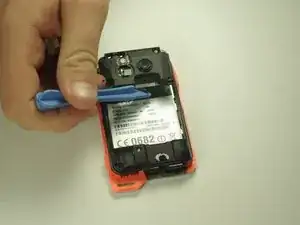

    • Remove the black cover with the plastic opening tool.

    • Remove the headphone jack from its slot.

Conclusione

To reassemble your device, follow these instructions in reverse order.
