Sony HDR-PJ410 Lens Replacement

Scritto Da: Stratos Thivaios
  • Commenti: 0
Sony HDR-PJ410 Lens Replacement

Difficoltà

Moderate

Passi

15

Tempo Necessario

45 minuti - 1 ora

Introduzione

Sometimes, either because it has been scratched/broken/damaged in some way, we need to replace the lens of a Handycam. This guide will help you replace the lens of your HDR-PJ410 Sony Handycam.

  1. MliDAk5oHr3LVSke
    MliDAk5oHr3LVSke
    T3sRtgOGYqeHAWUW
    WwQ4ITgU1K2PdbAt

    • Pull the battery cover outwards to unlock it.

    • Then, push the small blue tab outwards to unlock the battery.

    • Finally, pull the battery out.

  2. Pull the battery up and outwards to "unhook" it from the camera body.

    • Pull the battery up and outwards to "unhook" it from the camera body.

  3. WDKtAG5pQPPqRXGO

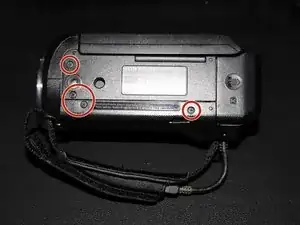

    • Remove the 4x #000 Philips screws from the bottom of the camera.

  4. fnjCEtZNytvipjOQ

    • Remove the 2x #000 Philips screws from the right side of the camera.

  5. BqhkKCGuAmdEVHZO

    • Flip open the LCD screen.

    • Remove the #000 Philips screw from top left side of the camera.

  6. 1duJgxos4RuACeo1

    • Remove the #000 Philips screw next to the top right corner of the LCD.

  7. DIR4HsCLexhpOV1B
    DIR4HsCLexhpOV1B
    2SmwgREZnkYn1JYk
    HCFKA6dtZlWQW1Cb

    • Use the Opening Tool to remove the small plastic panel from the back of the camera.

  8. dAt5ycHEZhFAvgyf

    • Remove #000 Philips screw from the top back of the camera, under the panel we removed on step 7.

  9. bqnPjPImelEpyRRs

    • Use a guitar pick or an opening tool to remove the plastic cover of the hinge that holds the LCD screen.

  10. ZicjalPZixLuNMsQ
    ZicjalPZixLuNMsQ
    L2JbOwNY3Y4grmWc

    • Use guitar picks to pry off the entire top and right panel of the camera (they are one piece).

    • It might be difficult to remove at first. Do not try to remove the panel forcefully or you will break the plastic clips that hold it down.

  11. uwBfFRuexyGjSKkk

    • Remove the silver colored outer lens cover using a guitar pick or an opening tool.

  12. TakWfYdWHeSMqhvC

    • Remove the screw at the front of the camera on the bottom right corner, that holds the inner lens cover in place.

  13. tvRddIiIPMAv4Axt

    • Very carefully remove the inner lens cover by pulling it outwards.

    • The microphone is glued on the inner lens cover and connected via a ribbon cable to the board. If the lens cover is pulled too hard the microphone ribbon cable can break, rendering the microphone of the camera useless. Pull the lens cover very carefully.

  14. qTPdUwerDH2kj1Mc
    qTPdUwerDH2kj1Mc
    Rs44G4gjTulMgJyj

    • Disconnect the ribbon cable of the microphone from the board carefully using a pair of tweezers.

    • When disconnecting ribbon cables, always pull the end of the cable, the connector, and never pull the cable itself. Ribbon cables, especially small ones like this are very fragile.

  15. N1VLSCwuAZQakgn6
    N1VLSCwuAZQakgn6
    JVZye5YHnT35hhBV

    • Remove the 3x #000 Philips screws that hold the lens in place.

    • Then, carefully pull the old lens out.

    • Then follow this step in reverse to install the new lens. Put the lens in place and then screw the 3 screws again.

    • Avoid touching the replacement lens. It's a good idea to clean the new lens with a microfiber cloth before putting it in place to remove any fingerprints or dust.

Conclusione

To reassemble your device, follow these instructions in reverse order.
