Sony Handycam CCD-TR5 Microphone Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

5 minuti

Introduzione

This guide will take you through the process of replacing a faulty or non-functioning microphone in your Sony Handycam CCD-TR5.

  1. 1GcLPM4neEykSA5D

    • Use a Phillips #00 screwdriver to remove three screws: one from the bottom, one from the side, and one from the top of the camera.

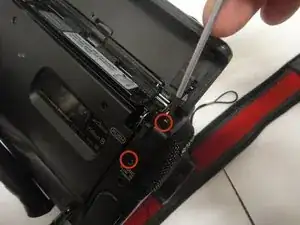

  2. QOVgXKQYHMxXoKlZ

    • Remove the two top screws from the microphone.

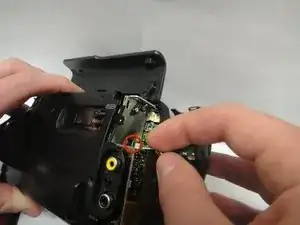

  3. fIcClnrmCyJBsnhq

    • Carefully remove the electrical connector from the circuit board.

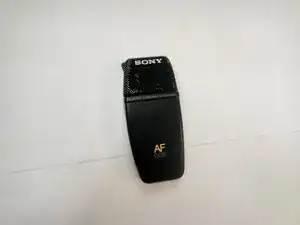

  4. XBiwL33gNKWAl2Ae

    • After removing the screws, the microphone will detach from the camera.

    • Insert the replacement microphone into the camera.

Conclusione

To reassemble your device, follow these instructions in reverse order.
