Introduzione
This part allows a persons phone to connect up to the Blu ray player so that they can choose videos, tv shows, and movies from your phone and play them on your television.
This part is very small and is held on by only one screw and a small and fragile wire connecting it. So be cautious and gentle when disassembling and reassembling this part.
Strumenti
-
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws that secure the two side panels onto the back of the player.
-
Slide both covers back about a 1/2 inch, then pull them away from the case.
-
-
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws on the side of the case, each connecting to a tab on the cover.
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws (one next to the Wi-Fi logo and one next to the Blu-ray logo).
-
-
-
Press in the tabs found on the front-sides of the case (connected to the front panel).
-
Slide the top cover forward.
-
Lift off the case.
-
-
-
Find the eleven 10.5 mm silver screws and two 6 mm black screws on the perimeter of the silver cover plate.
-
Remove the silver screws using a Phillips #2 screwdriver and the black ones using a Phillips #1 screwdriver.
-
Life the back of the cover up and off of the chasis.
-
-
-
Toward the panel there is a ribbon cable with 4 small black pieces of tape holding it down
-
Pull directly up on the ribbon cable to disconnect it from the motherboard
-
Gently pull the cable back away from the motherboard pulling the tape off with it
-
-
-
There are screws on every side of the front panel holding it in. Use a #2 Phillips head screwdriver to remove the nine screws.
-
Unscrew the three 10.5 mm long ph #2 screws on the top.
-
Unscrew the four 10.5 mm long ph #2 screws on the bottom.
-
-
-

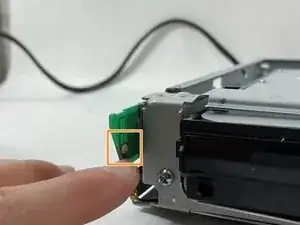

Lift tab on the left side of the device
-
Work your way right, lifting the next tabs. One on the bottom and one the Top
-
Continue working the tabs on the top and bottom, keeping them from snapping back in place.
-
-
-
Once you have the front panel removed the Bluetooth card is located on the left side of the device.
-
-
-
Gently remove the small brass connection, remove it, being careful not to break the connector or the wire as they are very small.
-
Once the wire has been gently removed, this should be the end result.
-
-
-
Remove the single 10.5mm screw securing the card to the chassis using the #2 Phillips head screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
