Introduzione
For some reason the Sony UBP-UX80 has stopped working. It will not power on, or it will freeze after posting.
You have tried the power connection and resetting, but nothing seems to work.
This guide provides details on how to replace the motherboard in a Sony UBP-UX80.
Strumenti
-
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws that secure the two side panels onto the back of the player.
-
Slide both covers back about a 1/2 inch, then pull them away from the case.
-
-
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws on the side of the case, each connecting to a tab on the cover.
-
Use a Phillips #2 screwdriver to remove the two 10.5 mm screws (one next to the Wi-Fi logo and one next to the Blu-ray logo).
-
-
-
Press in the tabs found on the front-sides of the case (connected to the front panel).
-
Slide the top cover forward.
-
Lift off the case.
-
-
-
Find the eleven 10.5 mm silver screws and two 6 mm black screws on the perimeter of the silver cover plate.
-
Remove the silver screws using a Phillips #2 screwdriver and the black ones using a Phillips #1 screwdriver.
-
Life the back of the cover up and off of the chasis.
-
-
-
Remove the four ribbon connections running to the motherboard:
-
Remove the three ribbon cables from the disk drive by pulling straight up.
-
Remove one ribbon cable from the front panel by pulling straight up.
-
-
-
Disconnect the two power connections from the power board.
-
Disconnect the power connection from the front panel.
-
-
-

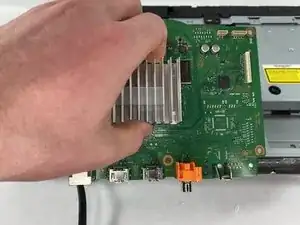

Use a Phillips #2 screwdriver to remove the seven 10.5 mm screws that secure the motherboard to the case.
-
Remove the three 10.5 mm silver screws from the back of the case.
-
Remove the two 7 mm black screws from the back of the case.
-
To reassemble your device, follow these instructions in reverse order.
