Sony Vaio PCG-41216L Display Replacement

Scritto Da: Elmar Charoensaengsanga
  • Commenti: 1
Sony Vaio PCG-41216L Display Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 minuti

Introduzione

The device screen may start displaying glitches, or the screen may fail to initialize. In these circumstances, it may be necessary to replace the screen.

  1. dtXYwOpBZjHRjYyO
    dtXYwOpBZjHRjYyO
    cUUaEyYkBBSPnJMy

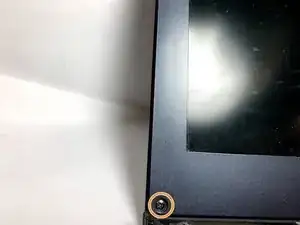

    • Remove the covers for the two 3mm Phillips head screws at the base of the screen.

    • Make sure the device is unplugged and turned off before proceeding to minimize the possibility of electrical damage to the device.

  2. bK2eCgQvXjDD6ml6
    bK2eCgQvXjDD6ml6
    UmLgLUnJXJJVxHRU
    uJlf2E3lGnqpkEOe

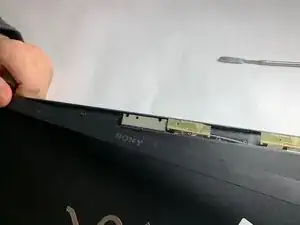

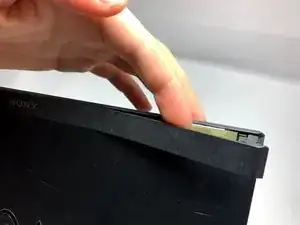

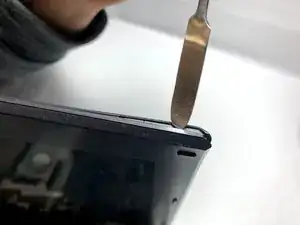

    • Use a metal spudger to separate the top cover on the back of the screen. It will be a long, thin plastic section that has the SONY logo in the middle of it. This enables the disassembly of the rest of the screen frame.

  3. MINtkUJE1VrjEBrq
    MINtkUJE1VrjEBrq
    MBd2IiJur2pkFWRO

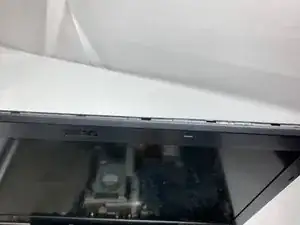

    • Use the metal spudger on the sides of the frame to remove it from the screen.

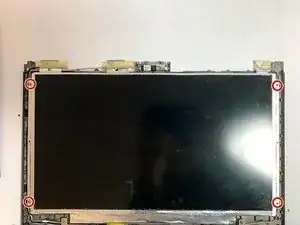

    • Remove the four 3mm Phillips head screws that secure the screen to the exterior of the laptop.

  4. ESvfYOhFQqxqIdUW
    ESvfYOhFQqxqIdUW
    kLUHpU5OlNpLv5FT

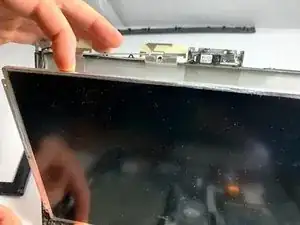

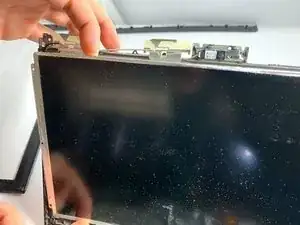

    • Carefully remove the screen from the supporting frame and lay it down on the keyboard of the laptop.

    • The wires connecting the screen to the body of the laptop will be exposed and fragile. It is important to proceed with caution.

  5. C4bnKOaXGrOpyXQM
    C4bnKOaXGrOpyXQM
    Wc3AAkb5GFodFYIi

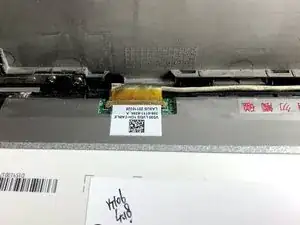

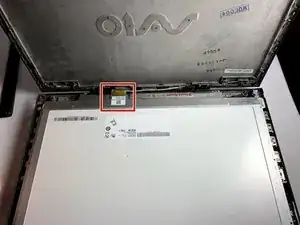

    • Locate the ribbon cable connecting the screen to the rest of the laptop.

    • It may be necessary to remove an adhesive seal in order to proceed.

  6. CsdvtNKcF6PAEcqQ
    CsdvtNKcF6PAEcqQ
    NViQLyTLKSdOfNrQ
    uRlI1GIvxSnEDaof

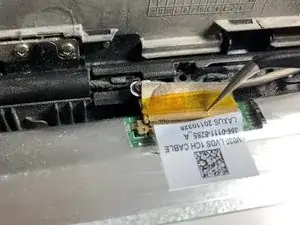

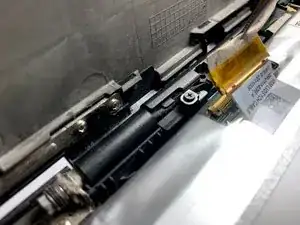

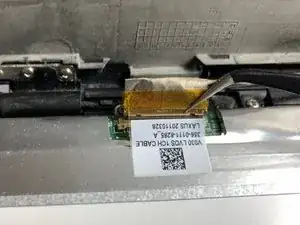

    • Use a pair of tweezers to remove the ribbon cable from the screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
