Sony Vaio SVE111B11L Screen Replacement

Scritto Da: John Noll
  • Commenti: 3
Sony Vaio SVE111B11L Screen Replacement

Difficoltà

Difficult

Passi

15

Tempo Necessario

2 ore

Introduzione

This guide shows how to remove the screen of a Sony Vaio SVE111B11L. This repair may be needed if the screen melts or cracks. To replace the screen follow the guide in reverse order.

  1. 65GkJVYnI533MYGB
    65GkJVYnI533MYGB
    JwKZVXOjCLKFmyAv

    • Remove the charging adaptor. Some charge may still be in the battery or computer. DO NOT touch connectors or copper yellow connector.

    • Locate the battery on the bottom of the computer.

    • Flip the computer so that the battery faces you.

  2. OniSTP2BVGJZScsx

    • Locate the two latches with the words “lock” and “release” on them.

  3. nDwk3SpwsRbopjRH

    • Push the latches towards each other and lift the battery to remove it.

  4. 2QSHoBkOFrNkxKkS

    • Remove the memory door on the bottom of the computer to access the screw for the keyboard.

    • The screws for the memory door do not come out.

    Incorrect picture for this step. Is should show removing the main cover on the bottom of the laptop to reveal the memory and hard drive

    Steve -

  5. Si2IcSubARPoR6cf

    • Remove the 6.7 mm screw that holds the keyboard assembly in place.

  6. 3jr3euQFU6cpCdwJ

    • Be careful not to break the keyboard wire connection.

    • Slide the wires out, away from the solder connections.

    • Flip the computer over and open it.

    Not sure what wires I'm supposed to slide out. Again, picture is no help.

    Steve -

  7. DBGcDdTXHWVjufmv
    DBGcDdTXHWVjufmv
    TxlaXDMmE1mgckfh
    IXXOHVmGmyDmko6I

    • Gently pry the keyboard assembly from the screen side, using an opening tool. You will need to lift the keyboard about two inches.

    • Using an opening tool, gently pull out and slightly up on the connector clip.

    • Gently lift the keyboard assembly up and out.

    I found that it was easier to remove the keyboard starting from the front edge (away from the screen) because the clips are shorter on this side. The only problem is that the cable is at the front so you have more danger of breaking it. Again, the picture is incorrect - don't try to remove the panel around the keyboard as shown, just go for the central keyboard unit.

    Steve -

  8. a1b2dA5aXSHrLaiU

    • Remove charging adaptor. Some charge may still be in the battery or computer.

    • DO NOT touch connectors or copper yellow connector.

    • Take the covers on the bottom of the laptop off.

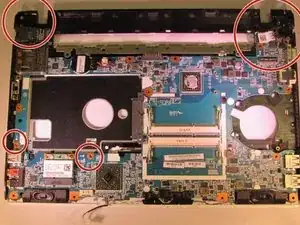

  9. uqpHbqKxNAWlgleb

    • Locate and remove the screws holding the motherboard down.

    • Screws: L 4.6mm X D 1.85mm

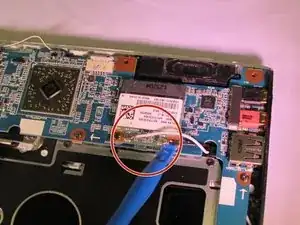

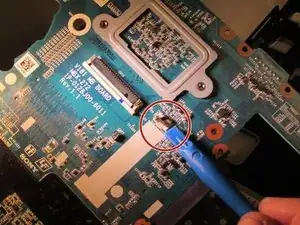

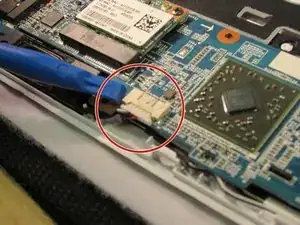

  10. biWP5YHOrC3hMGiC
    biWP5YHOrC3hMGiC
    E2X1lrYhaZaNHNBe
    LxGwuXAFFQhDokJX

    • Locate the wires and connectors and remove them from the motherboard.

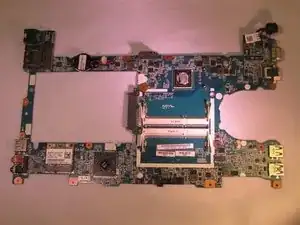

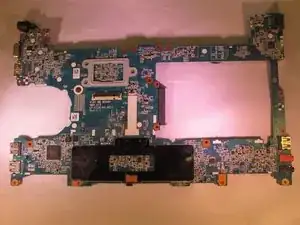

  11. xR6YebAaDLZ2kkRI
    xR6YebAaDLZ2kkRI
    61movq2yxhjD5tKK

    • Lift the mother board out and safely put it to the side.

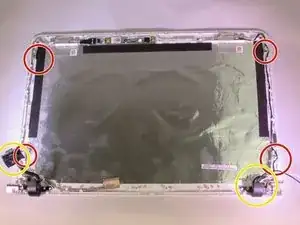

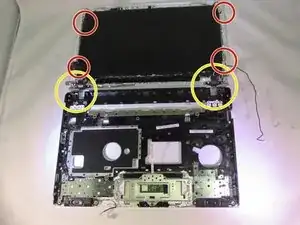

  12. CQKH4wrQLfYb5btP
    CQKH4wrQLfYb5btP
    RfAGFUlQT5SXd4sn

    • Remove charging adaptor and battery. Some charge may still be in the battery or computer.

    • DO NOT touch connectors or copper yellow connector.

    • Locate screws. L 3.35mm X D 1.8mm

    • Remove Screws.

    • Lay the screen on a hard flat surface.

    • Remove hinges and wires for ease of removal.

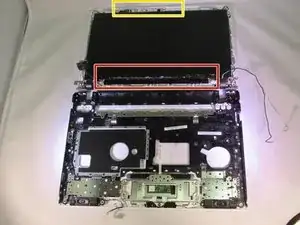

  13. Avo4WEcV4YfJ2mg2

    • Gently remove the screen cover.

    • Be careful of the camera at the top of the screen.

    • Be careful of the seal tape between the cover and the screen.

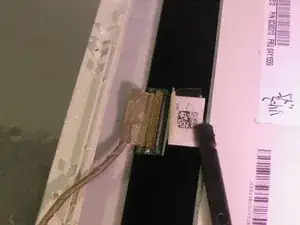

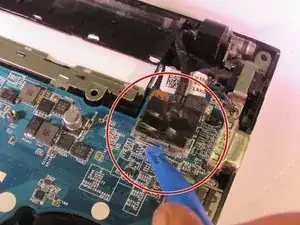

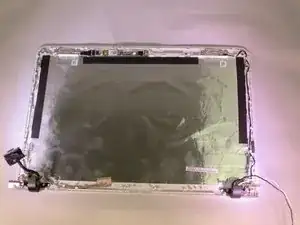

  14. VQyDSOnsvPYuygXQ
    VQyDSOnsvPYuygXQ
    4IM3dSXCIfYhDlNJ
    jr3bsIwnPxuiVLF2

    • Locate the wires and connectors.

    • Unplug the wires from the connectors.

    • Be careful of the yellow tape around the connection.

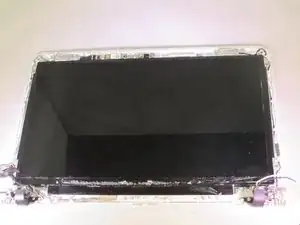

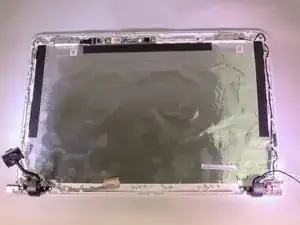

  15. VaZTwbwGLtfC3EUs
    VaZTwbwGLtfC3EUs
    IHS2HOtYsA2KBNQZ

    • Gently lift the screen assembly up and out.

Conclusione

To reassemble your device, follow these instructions in reverse order.
