Sony Vaio SVE151G11L Display Replacement

Scritto Da: Azka Khanani
  • Commenti: 0
Sony Vaio SVE151G11L Display Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

Nessuna stima

Introduzione

This is a comprehensive guide to replace the Sony Vaio SVE151G11L display.

  1. DokyTcoAXrj4rdv4

    • Flip laptop over so the bottom is facing upwards.

    • Remove bottom of laptop.

  2. OrMxosfcCNl6YUYY

    • Remove antenna wires attached to the WiFi card using a plastic opening tool.

  3. Gl3RVjpaTgCnE1F1

    • Remove the other antenna wire.

  4. eQsoWtf6eDwsLtWw

    • Remove the display cable by pulling upwards.

  5. gICjEL1dQ2ewKlBy

    • Remove the power display cable with a plastic opening tool by pushing outwards.

  6. pPRUsmOS53XaLUV4
    pPRUsmOS53XaLUV4
    63c2F1sYDIbq5cVb

    • Remove 4 hinge screws with a Phillips #0 screwdriver.

  7. Xgh3WCJuFdoDXqDU
    Xgh3WCJuFdoDXqDU
    XfIl3OLFBUFHbUMT

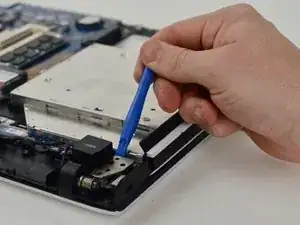

    • Lift upward on the hinges with a plastic opening tool to release them.

  8. OEvSSVGgUKXKoNT6

    • Separate the bottom of the laptop from the monitor.

  9. pD4PdaXF46oLBhAJ

    • Completely detach screen from the laptop.

Conclusione

To reassemble your device, follow these instructions in reverse order.
