Sony WH-1000XM4 Swivel Replacement

Scritto Da: Jian Mejia
  • Commenti: 2
Sony WH-1000XM4 Swivel Replacement

Difficoltà

Moderate

Passi

22

Tempo Necessario

15 - 30 minuti

Introduzione

If your Sony WH-1000XM4's earmuff doesn't want to stay attached anymore, it means that your headphone's swivel is broken and needs to be replaced. This guide will show you how to replace your headphone swivel for the Sony WH-1000XM4. Before beginning, make sure to power off the headphones and disconnect from any external power source.

  1. SllkgGuJoPHEEAga
    SllkgGuJoPHEEAga
    WpXM4gVl3a3QdEL2
    niF6b1ftuU2PYwGV

    • Using an opening tool, pry off the right ear muff and remove the underlying foam.

  2. bLcPxFLLBlkqhFx4
    bLcPxFLLBlkqhFx4
    6MjXKAYYvVsQNcQj

    • Using an opening tool, pry off the left ear muff and remove the underlying foam.

  3. vyCMT4jllRgAqySE
    vyCMT4jllRgAqySE
    K1fHe3QHVNjqBFgg

    • Remove the four silver screws on both sides of the headphones using a Phillips #000 screwdriver.

  4. WRdkLNC5vdKhkSwa
    WRdkLNC5vdKhkSwa
    nC3XNpRwGcqYVbfU
    v5lDnUPMUKBMcvua

    • Flip the headphones.

    • Lift the back of both sides of the headphones.

  5. p5yTbFTT2PB4Vo5Z
    p5yTbFTT2PB4Vo5Z
    1JdWQYvlJxB5wY6Z

    • Detach the ribbon cable connecting the backplate to the right ear.

  6. jEJdwTyNWCV3Gm3h
    jEJdwTyNWCV3Gm3h
    RjpfRtmOUgJNW4pl

    • Detach the yellow thermal sensor ribbon cable from the motherboard.

  7. aSncDUYKDpUBjXyM
    aSncDUYKDpUBjXyM
    BF4jTTOGvw5HC5yn

    • Detach the data/pwr connector from the motherboard using an opening tool.

  8. xaAERQaW15ZoBjqx

    • Remove the two screws from the motherboard using a Phillips #000 screwdriver.

  9. 6QwRxokMbllqGDaa
    6QwRxokMbllqGDaa
    1DSdM2WNHgRMOSXT

    • Disconnect the white ribbon cable.

  10. koxNcctnt3PgqU4n
    koxNcctnt3PgqU4n
    sgyGUSDqDGpNMuET
    bGY5jhGSQyY4OnQL

    • Move the data/pwr cable from the inside of the board to the outside.

  11. ngRGQxYlVRAM45Ky
    ngRGQxYlVRAM45Ky
    BWdI22abUEtJJyhT

    • On the left ear, detach the ribbon cable attaching the nfc from the back panel to the motherboard.

  12. aSMdwmlZEZsKBqCT

    • Remove the data/ pwr connector from board.

  13. 6TSVBUUgYBoDcqZr
    6TSVBUUgYBoDcqZr
    WgsnUpomhcE3aMGW

    • On the right ear, rotate the motherboard and remove the two screws from the hinge using a Phillips #000 screwdriver.

    • On the left ear, remove the two screws from the hinge using a Phillips #000 screwdriver.

  14. MU1K44xU4kAsDQmq
    MU1K44xU4kAsDQmq
    GdkyeWGtCJgMGNL2

    • On the right ear, lift the hinge and push it out.

  15. 25GgnasfHkyDAdGf
    25GgnasfHkyDAdGf
    Gx2VEQp1AFVq2HGA

    • On the left ear, lift the hinge and push it out.

  16. VVBYvrSDAuF4Jkw1
    VVBYvrSDAuF4Jkw1
    jNW6phW3XXugmem6

    • Remove the black hinge piece from the data/ pwr cable.

  17. nKiQBYr1XI2aYouo
    nKiQBYr1XI2aYouo
    st2TRWieUNJXG4NC

    • Using a screwdriver, remove the rubber band.

  18. stVedFGabvO1yuID
    stVedFGabvO1yuID
    OoC4QUKcndRqAleN

    • Use an opening tool to remove the cover.

  19. JFRlokxHMBhoRcmV

    • Lift up the data/ pwr cable.

  20. GldQVFeNdEACPBcO

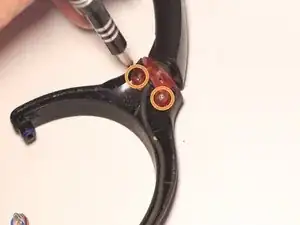

    • Remove the two screws from the swivel using a Phillips #000 screwdriver.

  21. 6L2NoloxfUPWNZsu
    6L2NoloxfUPWNZsu
    kDKxZkbhncECjYFt

    • Push out the metal bit from the swivel piece using a spudger.

    • Pull out the metal bit.

  22. ucNJLOxXqdoWmN6E
    ucNJLOxXqdoWmN6E
    YXsGYRTMxrys1e6F

    • Remove the old swivel.

Conclusione

To reassemble your device, follow these instructions in reverse order.
