Sony Xperia TL Loud Speaker Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

1 minuto

Introduzione

We will show the user how to access and remove the phones loud speaker module.

  1. RXVNRmYMfPVMO2Ob
    RXVNRmYMfPVMO2Ob
    K3AoqvyQtBiaNyR3
    GX2C3DVFWKHswCyT

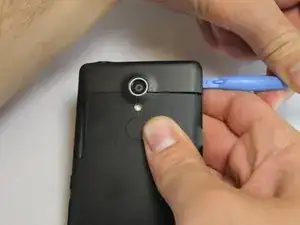

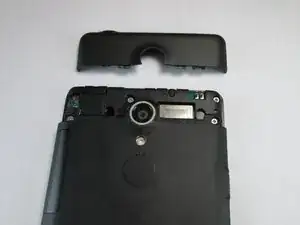

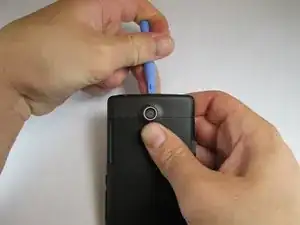

    • Use the plastic opening tool to pry the top plastic section off.

  2. GFD1wQvYBwALncCu
    GFD1wQvYBwALncCu
    h6KYYtQnos5hoEFu

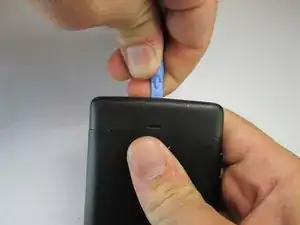

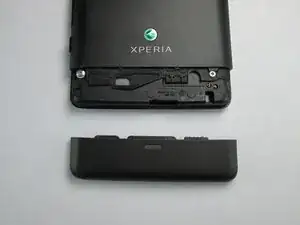

    • Use the plastic opening tool to pry the bottom plastic section off.

  3. v1BwHhmyOcNbapJ1
    v1BwHhmyOcNbapJ1
    ffMWUOZ26WdBnweI
    qgZfDBO1DREBryqc

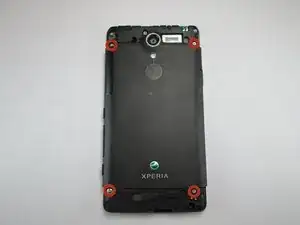

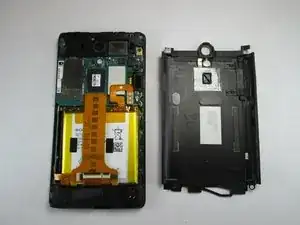

    • Remove the four 5mm screws.

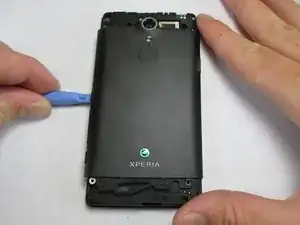

    • Use the plastic opening tool to pry off the back.

  4. iIEsmYNOHyVJG3uH
    iIEsmYNOHyVJG3uH
    QPBjGoK3C3IcBM62
    lb2ehcnoZAMEqUFC

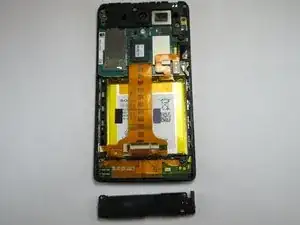

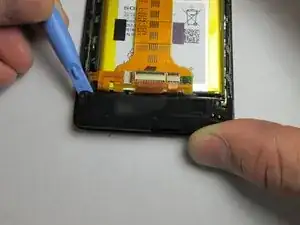

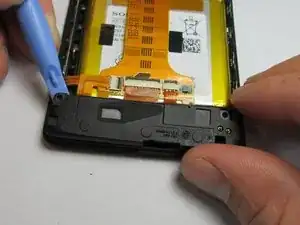

    • Use the plastic opening tool to remove the loud speaker module.

Conclusione

To reassemble your device, follow these instructions in reverse order.
