Sostituzione Batteria JBL Charge

Scritto Da: Joe Durand
  • Commenti: 42
Sostituzione Batteria JBL Charge

Difficoltà

Moderato

Passi

11

Tempo Necessario

10 minuti

Introduzione

Se il tuo speaker non funziona o senti che la riproduzione dei suoni non è all'altezza delle aspettative JBL, forse bisogna cambiare la batteria. La sostituzione della batteria potrebbe portare una boccata d'aria fresca al tuo dispositivo.

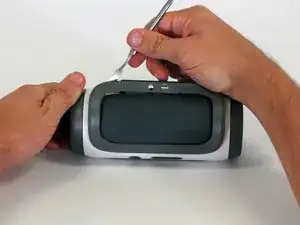

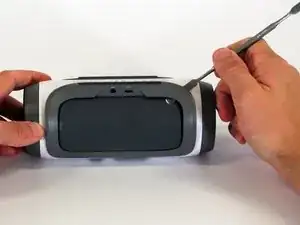

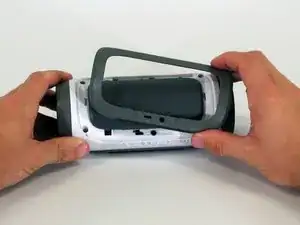

  1. 5rtIKsiLKOSwAnOT
    5rtIKsiLKOSwAnOT
    tHqbrBTnP2gZcTXR
    yVSSoS6KHbLeKsQO

    • Assicurati che il dispositivo sia spento prima di cominciare lo smontaggio.

    • Rimuovi la guarnizione dallo speaker usando uno spudger in metallo o un "Jimmy".

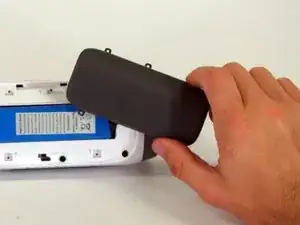

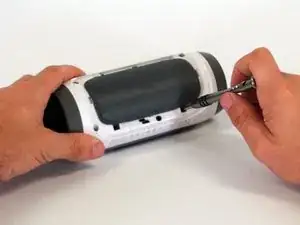

  2. KFZn5GNv6GkAfLDy
    KFZn5GNv6GkAfLDy
    3Tjxgww2u6cyrYjs

    • Usa il cacciavite PH1 per rimuovere le cinque viti da 6 mm dalla cover della batteria.

    • Rimuovi la cover della batteria e mettila da parte.

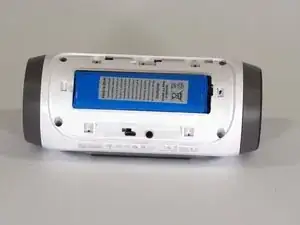

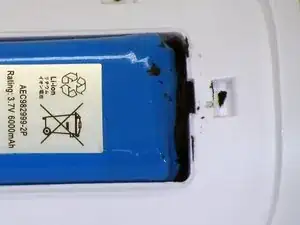

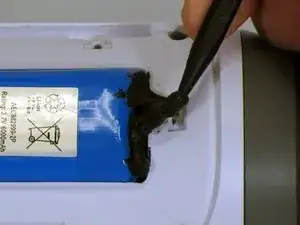

  3. D1fPemnMtKoXgw4c
    D1fPemnMtKoXgw4c
    WsPseT4SamwTwYOS

    • Usa uno spudger per rimuovere con attenzione il nastro isolante liquido che tiene la batteria ferma nel suo alloggiamento.

    • Fai estrema attenzione a non bucare la batteria, o danneggiare i cavi sottostanti il nastro isolante liquido.

    This is NOT liquid Electrical tape! I recommend using 3M adhesive silicone. If you are doing this repair then you can find the 3m adhesive silicone at automotive stores. Liquid tape hardens and 3M adhesive remains mailable vs the rock hardening effect of liquid tape.

    Liz Ramirez -

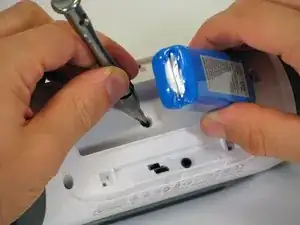

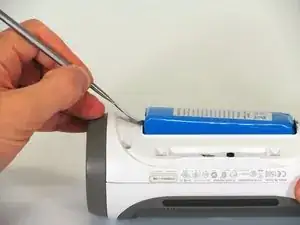

  4. 6eUGx6wFrswKEY6X
    6eUGx6wFrswKEY6X
    msJQpbaE2BLkxlMQ

    • Usa uno spudger per alzare la batteria dal dispositivo.

    • Alza il lato della batteria che non ha i cavi attaccati e rimuovi la vite PH2 da 16 mm sotto la batteria

    • Nota che il cavo collega la batteria al dispositivo. Tentare di rimuovere completamente la batteria potrebbe danneggiare il cavo. Non usare uno spduger di metallo per rimuovere la batteria.

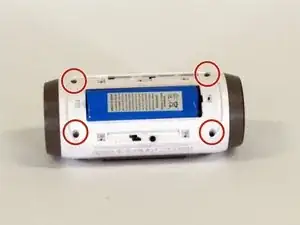

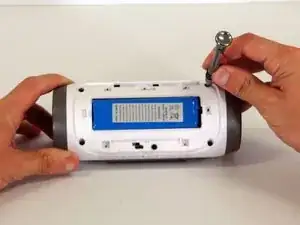

  5. IKeKZYR6m1bYMDdw
    IKeKZYR6m1bYMDdw
    ogJQH5JCPohdatMK

    • Rimuovi le quattro viti da 16 mm dal case in plastica bianca con il cacciavite PH2.

    The two screws on the right side (side with the USB port) are too long to extract with the iFixit screwdriver in the basic kit. I needed to use a regular thin PH2 screwdriver to get them out.

    Matthew Poole -

    I had this problem also, whenever putting the screws back in there were still air pockets in the side with smaller screws

    Kamden Runyon -

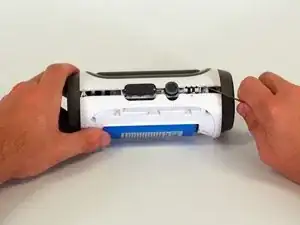

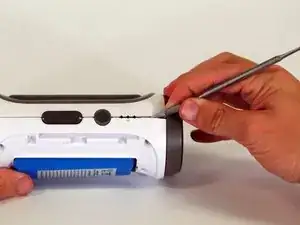

  6. 3hcUFwOvbXofBBRw
    3hcUFwOvbXofBBRw
    aHFAsPVtvBUeNw5I

    • Partendo da un angolo del dispositivo dove il case e il lato si incontrano, usa uno spduger di metallo per allontanare le due parti, vincendo la forza adesiva della colla.

    • Fai scorrere lo spudger di metallo lungo il lato per separare il case posteriore dal resto dello speaker.

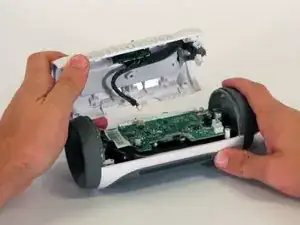

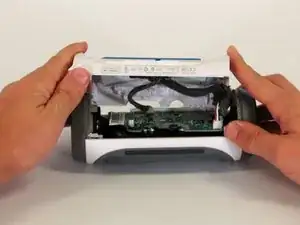

  7. I1FPlYRHEUjCagNr
    I1FPlYRHEUjCagNr
    MZGYPyypFkW4qmrP

    • Quando il case posteriore si apre, disconnetti i tre cavi bianchi dalla scheda madre.

    • Rimuovi il case superiore.

    Hi , Thanks a lot in my speacker i had broken plastic part which affect clear sound with your guide i open mine seasily and take it out now i have beand new sound which i had before. thanks again.

    kasravihasan -

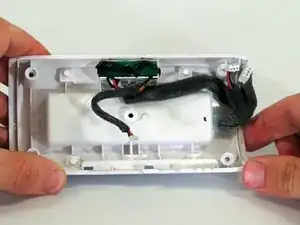

  8. BMF6UKRxjJNIXh4G

    • Focalizzati sul case posteriore rimosso nel Passo 7.

    where can i get the usb port with the cable that goes to mother board and it has the thre colors red black white please give me any place where i can buy it

    lozadajoseluis01 -

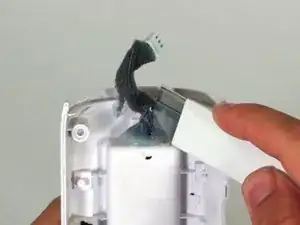

  9. NOCJvLX1e6p2Te1Q

    • Usando un taglierino, rimuovi la colla che tiene ferma la batteria.

    • Usa tagli multipli verticali per rimuovere i pezzi di colla.

    • Fai estrema attenzione a non tagliare i cavi della batteria.

    When reinstalling I used E600 glue to replace this goop of glue that is removed.

    Liz Ramirez -

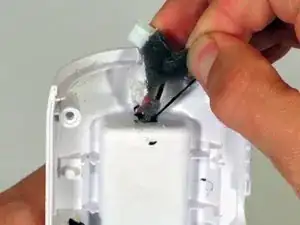

  10. qdJZt3MIxnHXXdAK

    • Rimuovi il foam che circonda i cavi della batteria.

    Dónde puedo conseguir los cablecitos de adentro

    Lauriano -

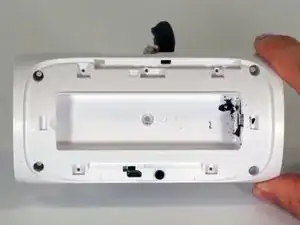

  11. wq3ETZXh5q1IaejR

    • Per rimuovere la batteria, tira i cavi attraverso il foro.

    • L'intero pezzo bianco deve essere sostituito (se si sta sostituendo aux/porta USB).

    Why does the whole White piece need to be replaced if replacing the USB port. I just took apart the case just to replace the USB port (not the battery). It looks like I can replace the port and not need a new case.

    Dave -

    It looks like it would be difficult removing the USB assembly because mine looked very well glued in that little space meant for the module to fit.

    Thanks for this guide

    Jake Lalens -

    I replaced the battery but it still won’t cheat fe, could the usb port be damaged and where can I purchase a usb port for my gen1 JBL Charge speaker?

    Bruce Smith -

Conclusione

Per riassemblare il dispositivo, segui la guida nell'ordine inverso.
