Sostituzione Batteria JBL Flip 3

Scritto Da: College Student
  • Commenti: 70
Sostituzione Batteria JBL Flip 3

Difficoltà

Difficile

Passi

8

Tempo Necessario

35 - 40 minuti

Introduzione

  1. 1H2ScEXhWKCKySbm

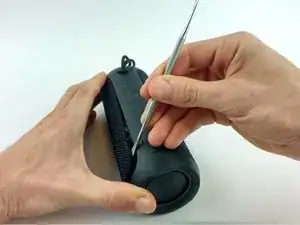

    • Rimuovi l'alloggiamento esterno in plastica con le tue mani o utilizzando uno spudger standard.

    • Importante! Fai attenzione ai tre perni nella parte interna dell'alloggiamento. Quando dovrai riassemblarlo, poni particolare attenzione a questi, cercando di allinearli come in origine prima di incastrare gli angoli in posizione.

    I used a two spudger method. I got one in and used it to keep the outer housing away while I got another one in. Much easier. However, hold off on prying one side away until you get the other side loose.

    wolfram.wow -

    warning this tutorial is majorly flawed read all comments b4 u go any further

    Adam Turner -

    If your JBL Flip 3 is the same sub-model that I have, a lot of this tutorial and pics will be wrong: the battery comes out easily by removing the plastic housing that covers the buttons and lights. I found a good video that exactly described how to disassemble and replace the battery for my model here.

    JohnD -

    Found an even better video for my sub-model of the JBL Flip 3 (too much time had passed to edit my previous comment): https://www.youtube.com/watch?v=ynOI-OMT...

    JohnD -

    If you destroy the protective cover in the process, here’s a fix:

    https://www.prusaprinters.org/prints/645...

    Tmpx64 -

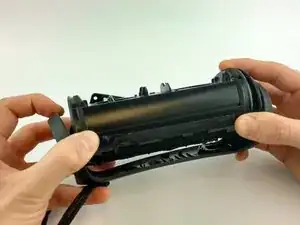

  2. 3YKlB3E2EQVMwSuH

    • Smolla le due viti, una per ogni lato e successivamente rimuovi delicatamente la scocca esterna per esporre i componenti interni dello speaker.

    • In base al tuo modello, potresti dover rimuovere più viti lungo il lato del dispositivo.

    Remove 2 screws on both sides first to be able to remove the frame.

    diffraction101 -

    Also, with my Flip 3, I had to remove 6 screws alongside the spine of the outer frame.

    Darrell Schmidt -

    I had this version/problem as well.

    wolfram.wow -

    I cannot remove the 6 screws along the spine :( They are stuck.

    Joel Cruz -

  3. VtPkZaNAHoJDjnLQ

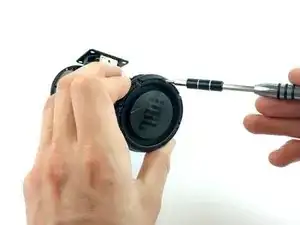

    • Rimuovi le sette viti Phillips da 8.9 mm che tengono fermi i due driver passivi ai lati. Rimuovi poi i driver stessi. Mettili da qualche parte al sicuro, in modo tale che non vadano persi.

    May be less than 7 screws.

    If you see the battery cable after removing one “side passive drive”, you may not need to remove the other. See Step 5.

    If you do remove both ends, look for them being keyed. In my case one had a slot and the other had a tiny button, both of which fit to the chassis.

    Darrell Schmidt -

    On my version, I found that a #0 Phillips worked better.

    wolfram.wow -

    I also used #0

    Daniel Birmingham -

    I also found that on my version I only needed to remove the passive driver from the end with the lanyard hole.

    wolfram.wow -

  4. UqM5dfSpd4piJvIV

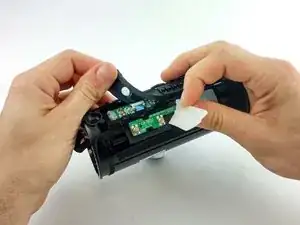

    • Rimuovi le coperture dei pulsanti in silicone staccando la copertura in silicone. Questo metterà a nudo la scheda circuito.

    • Scollega il cavo a nastro con attenzione. Solleva con cura la scheda circuito e mettila da parte. Usa un pistola termica per rimuovere tutto l'adesivo in modo che il cavo a nastro possa scivolare liberamente fuori dallo slot in un passo successivo.

    In my case this was not necessary. I determined this by waiting until completely necessary, which it wasn’t.

    Darrell Schmidt -

    If your JBL Flip 3 is the same sub-model that I have, a lot of this tutorial and pics will be wrong: the battery comes out easily by removing the plastic housing that covers the buttons and lights. I found a good video that exactly described how to disassemble and replace the battery for my model here.

    JohnD -

    Found an even better video for my sub-model of the JBL Flip 3 (too much time had passed to edit my previous comment): https://www.youtube.com/watch?v=ynOI-OMT...

    JohnD -

  5. MUJpgp1atK6odLBg

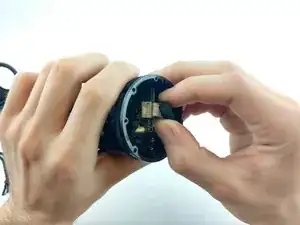

    • Rimuovi con delicatezza il connettore a 5 pin dalla scheda madre usando le tue mani.

    I needed a small sharp knife to cut out some of the glue that surrounded part of the connector.

    Martin Andersson -

    I found removing the plastic battery cover (the next step in this tutorial) allowed me to peel the glue off in one piece rather than cut and chip it off.

    Skeletwing -

  6. VqRgEsYYJoSnkbmb
    VqRgEsYYJoSnkbmb
    e4ANGYZuGUGTcLCV

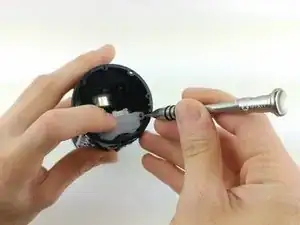

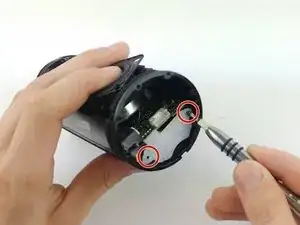

    • Svita le due viti Phillips #00 da 8.9 mm che tengono ferma la copertura in plastica della batteria. Fai attenzione a disporle in un posto sicuro per assicurarti che non vadano perse o mischiate con le viti del passo 2.

    • Rimuovi la plastica trasparente che copre la batteria.

    No such cover on my Flip 3. I skipped this step.

    Darrell Schmidt -

    Same for me

    Daniel Birmingham -

  7. OFUMWSKNreAlkJ4N
    OFUMWSKNreAlkJ4N
    hWlG25sLxKMBveBf

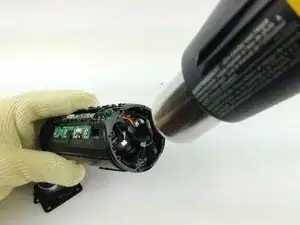

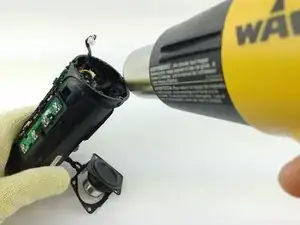

    • Riscalda leggermente l'adesivo sulla punta della scocca per ammorbidire la plastica che tiene ferma la batteria nel suo alloggiamento. Stai attento a non sciogliere la plastica della scocca con il calore.

    • Accorgimenti per usare la Pistola ad aria calda: http://www.powertoolinstitute.com/pti_pd...

    before step 8(destroy your speaker), you should check this correct video for replacing battery

    https://www.youtube.com/watch?v=nf6I8Xd3...

    albertchang1217 -

    In my version the battery could not slide out sideways (e.g. direction of the passive drivers). I had to remove another 6 screws located on the panel where the 2 circuit boards visible in step 4 were glued on top of . Then the entire side of the speaker came off and I had easy access to the battery.

    Marcell Toth -

  8. dlVbpXBtW6bIBTri

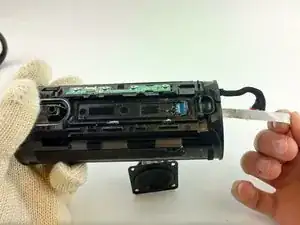

    • Rimuovi il nastro che tiene in posizione la batteria. Tira il nastro piano e con attenzione per non spezzarlo, una volta rimosso completamente dalla scocca interna, la batteria sarà distaccata totalmente e potrà essere rimossa.

    The ribbon was not in the way on my Flip 3. Instead, I had to remove six more screws, each near locations of the six screws removed for the outer frame, in order to lift the outer chassis (not outer frame, but chassis containing mini circuit boards) away from the rest of the assembly revealing the battery and allowing replacement.

    Darrell Schmidt -

    I had the same thing, 6 #0 screws to remove a panel with the power button circuit board. And I had to chisel/scrape away some soft black glue to release the battery cables.

    wolfram.wow -

    “Remove ribbon” seems to be a confusing statement. I removed the ribbon only to discover that this is a connector cable. I thought it was some kind of tape that had to be removed completely… The battery was still stuck by the way. It probably expanded and was very stuck. But since i “removed” (completely broke) the cable, my Flip 3 is useless now anyway…

    Some warning and rephrasing to “move out of the way, be careful not to break ribbon” in this step would be in place.

    Jonathan van Wijngaarden -

    (Edit, even though the connector cable is cut (lol) I can turn on the Flip 3. Will experiment more tomorrow, if I don’t write/answer, you know what happened. I also thought the ribbon cable was a piece of plastic around it, like a seal. My battery has also completely expanded, and I’m feeling pretty angry actually. So it turned out to be quite a waste of money. I have another Flip 3, however mine was glued so badly and it was a real pain in the ass to get to the actual battery. There is no way to fix this, right?

    marcelovhm -

    same thing happened to me. I had hope, but now the speaker’s REALLY gone. thanks ifixit.

    PhatTw0 -

    To remove the baterry, I followed the whole steps until the 8th step. But it is not that easy to remove the battery from the hollow it stays because of the black adhesive and the silicon and also if it is swollen it gets harder almost impossible to remove it. Mine had all these problems. The only solution I was able to think was to cut the upper side of the battery hollow carefully. I cut it from the edge to the end of the battery hollow carefully using a hand tool (similar to Dremel) with a very thin cutting circle blade. I just cut the plastic not so deep to the battery. It is extremely dangerous to cut the battery. Take safety precautions, use safety goggles, gloves and etc. Beside you have to be careful with the flex cable coming from the main board. After I cut the plastic I put a flet screwdriver in the crack and twisted it to open wide. Finally I managed to take the battery out. I hope this will work for you too.

    Vahap Karabulak -

    i had no ribbon,instead there was a plastic black plate i had to remove on top. i put a screwdriver underneath and removed it by applying pressure slowly and carefully.

    Niels van Tilburg -

    Couldn’t remove the battery, it was stuck fast and glued in….. had to throw my flip 3 after spending £20 on the battery.

    grow -

    Same problem, can't get the battery out as it seems to be welded into the casing. Just spent 4 hours trying with every tool to hand. MAKE SURE YOU CAN GET THE OLD BATTERY OUT BEFORE ORDERING A REPLACEMENT! Total waste of time and money

    runttycoon -

    My battery had swollen and I was unable to remove it. I'm very dissapointed that JBL didn't design this considering that the battery will need replacing after a year or two. The battery housing is just too tight. I can't even remove the battery for recycling. What the heck where they thinking?

    Kevin David Corpetti Vazquez -

    On the version sold in the middle East and Africa, the ribbon is the connector for the control board, you need to unlock the connector, remove the cable and board.

    Do NOT pull the ribbon as described in this guide if you have the MEA version, otherwise it will break and you will have a dead speaker.

    will -

    I was unable to get the battery out, it was stuck, as others here have said. I decided to use a Dremel to cut along the upper-left corner of the chamber (when looking down the end of the speaker at the battery slot) along its entire length. That way, the plastic can flex slightly, enough to free the battery. The battery was slightly bulging, which explains why it was hard to get it out. The plastic housing is quite rigid, so the cut didn’t affect the overall stiffness of the housing.

    After getting the battery out, I used a iMax B6 to measure the capacity of the old and new batteries. It turns out that the old one was not that degraded. I probably wouldn’t have attempted it if I had known that the new battery didn’t help that much.

    Definitely a difficult job. Thanks to iFixit, and the comments from users here, I was able to finish the job.

    John Pianezze -

    So if you break the ribbon cable as some of Us have it come be replaced? I too thought it was tape holding the battery in place

    Martin Hopkinson -

    Indeed this step is a major FAIL with regards to the black model that has no screws to uncover the battery chamber. It’s frankly, quite unthinkable, how the battery was placed with all said adhesive with it, to begin with, in such setting. It is however, just a fact that the inability to access the exposed battery directly, leaves the fixer at an impasse. Now it’s up to heating techniques and meddling, with very sloppy lines of action - if any.

    Uri -

    We managed to get the ribbon out by inserting two thin rope or some soft wire to gently wiggle it and eventually pull it out.. It will eequire a lot of patience and a lot of time because you also need to get all the glue out the way. The battery is the hard part, it seem to be stucked or glued as well.

    krae -

    This thing is a disaster! First there are two fundamentally different versions out there - hence all the confusion. The more complicated version is featured here.

    IT IS ESSENTIAL TO REMOVE THE BOARD FULLY in order to free the ribbon cable to the top control board. It is glued on the casing in a hidden position and if you remove the cable from the top you will not be able to put it back!

    Dirk Winning -

    This guide is wrong. It tells you to remove the battery by pulling the strip that holds the battery in place. What the picture shows is not the strip, but the top buttons' ribbon cable, and following the instructions will render your unit useless. There is no way to remove the battery following the steps described in this guide, especially if it is swollen, which happens to many LiPO batteries when they are worn out.

    flightlevel150 -

    For what it is worth... there are whole heap of variants of Flip 3 over time. Mine is one of those pain in the butt types which has a gallon of glue around the battery, and does have not the 6 screws to remove the panel - thus you have to follow this tutorial (which is correct for my model) and remove the main ribbon as it is looped around the top of the battery (madness). I could not get rid of the glue so I resorted to brute force and pliers, which worked, but I did not realise that the ribbon (though now disconnected and unlooped) had slipped under my pliers and I yanked it out with the battery, thus breaking it, I could cry ! Time to get a new flip 3, but I hope the newer ones have the screws so you can easily remove the panel and thus the battery without all the faff. I did try ! :-)

    Matt -

Conclusione

Per riassemblare il dispositivo, segui le istruzioni nell'ordine inverso.

Autore

College Student

Membro da: 22/02/17

3431 Reputazione

30 commenti
