Sostituzione Batteria Oral-B Vitality

Scritto Da: Miles Gunty
  • Commenti: 20
Sostituzione Batteria Oral-B Vitality

Difficoltà

Difficile

Passi

7

Tempo Necessario

45 minuti

Introduzione

Gli spazzolini elettrici sono alimentati da una batteria ricaricabile che consente il movimento alternato di spazzolatura delle setole. Se lo spazzolino elettrico perde potenza velocemente o non si carica, molto probabilmente la batteria ricaricabile deve essere sostituita.

  1. Va2LEc6dOLVXtL5A
    Va2LEc6dOLVXtL5A
    mkasTtY2V6Ku5qOp
    OwFOREqQlKCjSf6c

    • Togliere la testina e usare le pinze per rimuovere il cappuccio bianco. Estrarre il circuito principale.

    Ruotare per estrarre

    sergio_storato -

    You can use the hole in the bottom of the charging base (underside) that the top fits into and catches. Just twist gentilly back and forth until it loosens, then pull up with your fingers or pliers. Note, this is not like the Braun sonic care where the bottom comes off… should Have looked at the guides first as a I cracked the bottom trying to twist off the bottom like that brush.

    Aaron Giesick -

    Die weiße Kappe kann nicht einfach nur abgezogen werden. Sie muss nach links gedreht werden!

    Freubert -

    I saw on a Youtube video you can use the center hole of the charging base instead of pliers. It fits perfectly on mine.

    George Tedrick -

    Don't grab it with pliers--you will break off the narrow retainer stub. Instead use a thin blade to pry up an edge of the cap, then insert a wide flat blade to pry up the core out of the handle. Plier could be used for pulling but not for twisting. This also works for the Dentiguard version from Aldis.

    Kiev Kenny -

    I don't believe it opens like this. Pulling on the top thing like on the picture did break mine. It's alright though because I kind of knew while I was pulling and I kept on pulling knowing it would break any second. But if you need yours, you better look for some other instruction. Would be nice to update this one as well.

    Simeon -

  2. D1MIjxDx4OZwCWEm
    D1MIjxDx4OZwCWEm
    TmE3ynbo5wC2kpIt

    • Dissalda in queste quattro (4) posizioni.

    • I due (2) collegamenti del motore

    • Il lato positivo (+) della batteria

    • Il lato negativo (-) della batteria

    I am hoping the author of his guide receives theses comments. I have a Braun brush with dud battery, and am hoping to replace. I am afraid it is not at all clear from the photographs which are the points that need de-soldering. Thanks for any help.

    Peter Bull -

    Having now noticed and browsed the guide history, I see that there were indicators for where to desolder (on one photo only). I can’t understand why these clarifying marks were then removed from the final draft?!?!?!

    Peter Bull -

    IFixit technical team advised us to remove the indicators on the photo before we could publish it .

    Nicole Antoine -

    How do I contact the technical team to complain about their censoring of indicators. Bonkers!

    Unless you are extremely skilled at soldering I advise against attempting to do this battery replacement. I had two brushes with rapidly discharging batteries. After the first one failed to work with replacement battery, I tried on the second, only to discover that, by the time the solder had heated enough to liquify and remove, the fine circuits on the circuit board had fried and the brush was useless. (And I have done my fair share of soldering)

    Peter Bull -

  3. NxnTfOasiW6siFdP
    NxnTfOasiW6siFdP
    1BTBOqHS6BbrGE4D

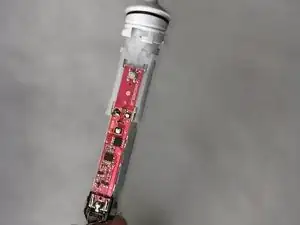

    • Dissalda il terminale di collegamento inferiore della batteria. Piega indietro il terminale della batteria per liberare la scheda.

  4. SJnhEdSFgWZMg6nU

    • Dissalda i tre (3) terminali superiori dalla scheda.

  5. BxQaAUeuHDhGklUN

    • Utilizzare strumenti di apertura in plastica per estrarre con attenzione la scheda. (Usa uno spudger metallico come ultima risorsa).

    • C'è una linguetta bianca che attraversa la scheda, fare attenzione quando si rimuove la scheda stessa.

  6. OCpaULHXEX2X3bqp
    OCpaULHXEX2X3bqp
    WfYsclSQDDdBAXDA

    • Estrai la scheda stampata e il gruppo batteria. Quindi procedi a rimuovere la batteria dalla scheda.

  7. 1pnCQ5tGNjnF2SAm

    • Quando si reinstalla la batteria, ricordati di piegare verso il basso il terminale inferiore. Il terminale negativo (-) è il più vicino ai fili di rame

    • Assicurati di ricaricare lo spazzolino dopo la riparazione. Anche se la batteria nuova è completamente carica, lo spazzolino andrà in errore se non verrà ricaricato.

    Der neue Akku sollte entweder passende Lötfahnen haben oder die alten sollten an den neuen angelötet werden.

    Tina Fabritius -

    Lötfahnen kann man nicht anlöten, das geht nur im Werk.

    VauWeh -

Conclusione

Per riassemblare il dispositivo, seguire le istruzioni in ordine inverso. Ricordarsi di applicare solo la quantità necessaria di materiale da saldare per ricollegare i terminali.

Autore

Miles Gunty

Membro da: 07/11/17

492 Reputazione

8 commenti

This is very easy to do. I had no problems following your instructions.

Ian Bowker -

Thanks.

Is this a regular rechargeable AA?

Thanks again.

Stephen Shaw -

The original battery is a NiCd with tabs. I just spot welded tabs onto a standard AA NiMH battery and it worked fine.

T C -

Thanks.

I did fix an Oral B Braun PRO timer (2022) and the only part that is different is the head. It has two nail presses inside, one at the switch side and the other at the opposite side, that are very difficult to lose.

Peter M. -

I tried to open mine, but it did not work. The top thing broke. I could kind of feel it would happen while I was pulling but I wanted to know if it realy does so I kept on pulling.

I am not sure if this really is opening up the way as it's described here.

Simeon -

Would it be possible to put a larger battery in it?

ssssaaaa -

Also works for Oral B Vitality Pro 100. :)

ssssaaaa -
