Sostituzione Drive SSD Microsoft Surface Pro 4

Scritto Da: StacyAnn Brown
  • Commenti: 56
Sostituzione Drive SSD Microsoft Surface Pro 4

Difficoltà

Difficile

Passi

3

Tempo Necessario

30 minuti - 2 ore

Introduzione

Il Surface Pro 4 è equipaggiato con un SSD Samsung M.2. Questa guida ti mostrerà come sostituirlo se si dovesse danneggiare o se volessi aggiornarlo.

  1. 2volyddrVMMlmKvd
    2volyddrVMMlmKvd
    SuD5tnWp4h4s2WP3

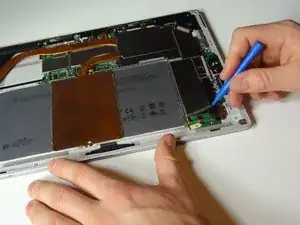

    • Usa uno strumento di appertura blu per fare leva sugli angoli della schermatura in metallo che copre l'SSD.

    Kinda miss a ton of steps here... and no link to the screen removal?

    albert Einstein -

  2. EQgEcdCZMARIvq1p
    EQgEcdCZMARIvq1p
    tWWrWAbGPMG4yRuU

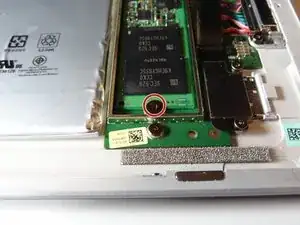

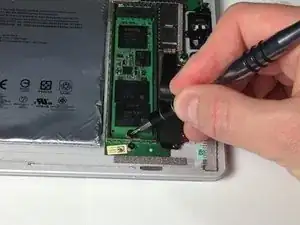

    • Rimuovi la vite Torx T4 da 1.0mm che tiene fermo l'SSD.

    What length is the SSD drive?

    Kevin Ford -

    Screw on my Surface Pro 4 is a Torx T5, not a Torx T4

    Dam -

  3. SePlyErRKaa4F1CH
    SePlyErRKaa4F1CH
    MisXv6oVJCw1YYIW

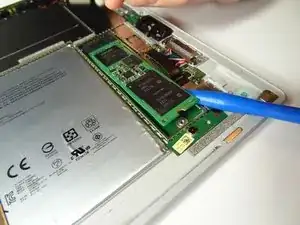

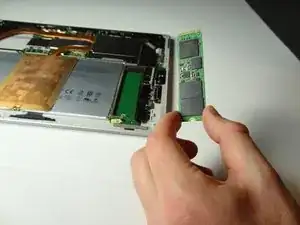

    • Usa lo strumento di appertura blu o uno spudger per alzare leggermente l'SSD e prenderlo con le dita. Tira l'SSD verso il basso e verso te stesso per rimuoverlo.

    Hi, what kind of hard drive should i get if I were to replace the one that comes with the surface pro 4?

    Raymond Cabral -

    What do you mean follow the steps in reverse? What about the adhesive?

    LIQUID SNAKE -

    I am also waiting for this answer. I want to buy the SSD for my SP4, but what do you use for an adhesive when putting it back together?

    Jay See -

    Same as others. I have i5/8GB/256GB model. Same question about the adhesive and which exact SSD replacement.

    Anthony Raynor -

    It’s a m.2 ssd or nvme ssd

    josh -

    Hallo, ich habe mein Surface pro 4 128gb erweitert durch eine samsung nvme 512gb Disk. Jedoch bootet das Surface nicht von der neuen Platte. 1.versuch war direkt neu installieren

    2. Versuch war wiederherstellungslaufwerk

    3. Versuch war clonen

    Nichts davon hat geklappt. Hat jemand ne Idee?

    Christian Schmid -

    Erl. Ihr benötigt die samsung pm951 oder pm961. Dann klappt es. :-)

    Christian Schmid -

    So, the drive in the picture is an m.2-sata (micro sata 2 drive).

    Most drives today are SATA (Serial Advanced Technology Attachment)

    I haven’t tried this yet, so I’m assuming that the glue would be reheated, screen replaced, and cooled down.

    But one of the steps recommends TESA tape, the only thing I can imagine this would be used for is reattaching the screen.

    Tesa 61395 Tape

    Good luck.

    karlthestrong -

    When it says it is difficult, they mean super hard. The screen is very thin and easy to crack. I had one of the guitar picks pop out and the screen cracked. So you I am out an extra $130 for a new screen. Not too big of a deal for me. The touch screen was dead anyway. I just used the black double sided tape to put the screen back on. I used a 1Tb Samsung 970 EVO SSD. Just make sure you have windows 10 install on a thumb drive.

    Bill Hatton -

    The SSD in the picture is a NVME SSD, not SATA. It only has the notch on the right. SATA drives have 2 notches, left and right sides.

    Scott Evans -

Conclusione

Per riassemblare il dispostivo, segui le istruzioni nell'ordine inverso.
