Sostituzione Gruppo Schermo Frontale Samsung Gear S3 Frontier

Scritto Da: Jimmy Algeo

Commenti: 33

Sostituzione Gruppo Schermo Frontale Samsung Gear S3 Frontier

Difficoltà

Moderato

Passi

Tempo Necessario

10 - 45 minuti

Introduzione

Se lo schermo del tuo dispositivo non risponde o è crepato, sostituiscilo con questa guida. Questo richiederà la sostituzione dell'intero gruppo frontale dello schermo, in quanto non puoi solo lo schermo.

Strumenti

Passo 1

Posiziona l'orologio a faccia in giù, in modo da vedere la parte posteriore.

Passo 2

Rimuovi le quattro viti da 4,2 mm con un cacciavite tri-wing Y00.

Y0 passte bei mir deutlich besser als Y00

Alex Fi -

Did you use iFixit tools? I just checked and I believe Y00 is correct. Y0 slips too easily. My test was with the Y bits from the Pro Tech Toolkit.

Nicholas Dudde -

I too had to use an Y0 screwdriver (from Ifixit 64 bit driver kit....). Y00 just don't grip, may be some batches of the watch used different screws??

regislefeuvre -

One screw just doesn't want to move, any suggestions/tips how to remove it?

Slartibartfast -

Problem solved: after 2 times of careful WD40 application and blunting the Y00 a bit it came of with a lot of patience.

Slartibartfast -

I also had a problem with one of the screws and flipping to Y0 worked for that one.

Jeff Lambert -

Yo use Y 0.6 y anduvo perfecto!!

Gustavo Zarate -

Yo use Y 0.6 y anduvo perfecto!!!

Gustavo Zarate -

The tool kit that came with my battery was a Y1.5 and worked perfectly

jnewsom22 -

Passo 3

Questo passaggio rovinerà la guarnizione impermeabile.

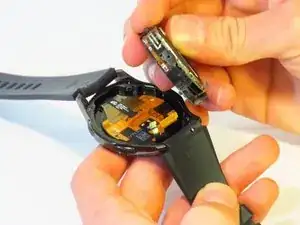

Incunea lo spudger metallico tra la cover posteriore e la scocca dell'orologio, lungo l'intero contorno.
Rimuovi con forza la cover posteriore dalla scocca dell'orologio.
Questo passaggio richiede molta forza. Per rendere più semplice l'operazione, puoi usare un Jimmy al posto dello spudger metallico.

Il est plus facile et moins domageable pour le joint de commencer par ouvrir le cache de connexion situé à coté de l’axe du bracelet long. On peut alors glisser la broche sans détériorer le joint, qui est plus éloigné du bord à cet endroit.

Yann Richet -

I’m pretty sure the seal is equally far away from the edge on all sides.

Nicholas Dudde -

This was the hardest part. I did use thin flat head screw to dismantle it. Using the metal spudger felt like impossible due to its thickness.

Mariusz -

Did using the screwdriver damage the case in any way? I’d recommend being careful using a tool with smaller surface area as that will apply more pressure at the point of entry. As the guide states, a Jimmy may also be used instead of the spudger.

Nicholas Dudde -

Anyone know where to buy the replacement gasket after breaking the seal between back cover and watch? Thanks.

Jyon -

Not sure if it's a gasket or some sort of sealant paste/gel. Just took my case off, and the gasket seems intact (fused to back cover of the watch. Quick search for waterproof sealant yielded lots of possibilities - don't know which one to choose. Can anyone with experience provide advice?

Alan Lawee -

most things I have seen online say use an RTV like permatex black sealant. pretty available at like autozone or o'reilly or walmart.

Steven Betts -

Ma questa guarnizione impermeabile si puo sostituire ? Come controllare se si è danneggiata? Come evitare che entri acqua dopo averlo aperto ?

ant.beneduce -

La photo montre une ouverture coté bouton mais pire coté car l'ouverture abime quand même le couvercle en plastique sur la face la plus visible : essayer plutôt sur les autres cotés

stoufbook -

Il est préférable d'utiliser, si possible, un outil adapté pour l'ouverture des boîtes de montre.

Avec précaution, le joint n'est pas trop abîmé. Il est distendu. Possibilité de le couper et de le réajuster correctement.

Fabrice -

I have used a the Jimmy and I didn't need to do any force at all

Carlos Rafael Ramirez -

Que puedo usar para poner en la tapa y cambias el sellado ya que se me arruinó.

Quiero que vuelva a ser hermético.

Gracias

damian levi -

Passo 4

Usando un'unghia, stacca i tre connettori sulla scheda madre.
I connettori si staccano facilmente esercitando uno sforzo minimo.

Passo 5

Usando uno spudger, separa la scheda madre e il gruppo anteriore dello schermo.

Oui tuto bien clair. Opération réussi !

Bien qu’adroit de mes mains, et après avoir découvert la “bête à coeur ouvert”, je ne sais pas si je me serais lancé... C’est tout l’interêt de ce Tuto qui invite à le faire (car pas trop de détails), et qui suivit pas à pas permet de s’en sortir. Bravo

Merci Dan.S

Dan.S - 19/12/19

Better replace the 2 bolts from next step first.

Gabriel Pinho - 07/08/20

The guide has you remove the screws second because it makes it possible to remove the whole assembly without snapping any cables.

Nicholas Dudde -

Ok... Woher bekomme ich die Displayeinheit ???🤷🏻‍♂️

Patrick Nufer -

Conclusione

Per riassemblare il dispositivo, segui le istruzioni nell'ordine inverso.
