Introduzione
Utilizzare questa guida per sostituire un pannello del display danneggiato nell'iMac.
Strumenti
-
-
Poggiare l'iMac sul lato anteriore su un tavolo, con il bordo inferiore rivolto verso l'utente.
-
Allentare la vite con testa a croce al centro dello sportello di accesso.
-
Rimuovere lo sportello di accesso dall'iMac.
-
-
-
Rimuovere le 12 viti seguenti, che fissano la mascherina anteriore al case posteriore:
-
Otto viti Torx T8 da 13 mm.
-
Quattro viti Torx T8 da 25 mm.
-
-
-
Sollevare delicatamente la mascherina dal bordo superiore, lontano dal case posteriore.
-
Dopo aver rimosso il bordo superiore della mascherina anteriore dal case posteriore, ruotare la mascherina verso la staffa ed estrarla dal case posteriore.
-
Ruotare la mascherina anteriore lontano dal resto del dispositivo e adagiarla sul bordo superiore dell'iMac.
-
-
-
Rimuovere le due viti Torx T6 da 5,3 mm dal connettore dell'LCD.
-

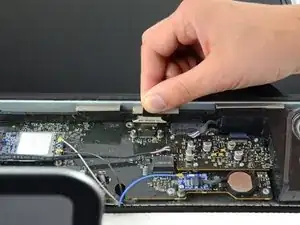

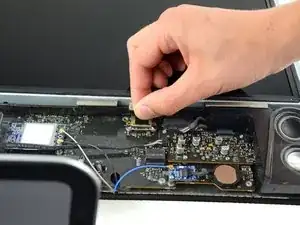

Tenere saldamente la linguetta sulla parte superiore del connettore e rimuoverla dalla porta.
-
-
-
Posizionare le mani su entrambi i lati della parte inferiore del pannello del display e sollevarlo affinché sia possibile raggiungere i connettori all'interno.
-

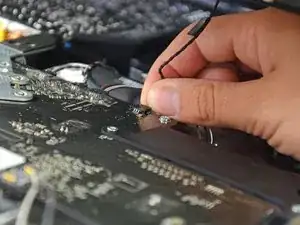

Tenendo il pannello del display con una mano, individuare e rimuovere il cavo del sensore termico del display dal connettore.
-
-
-

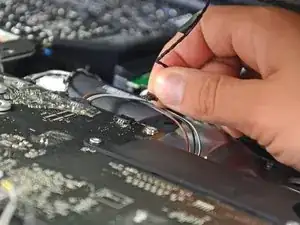

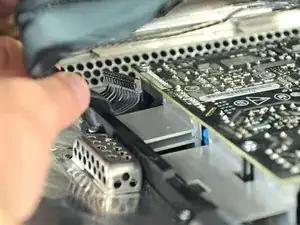

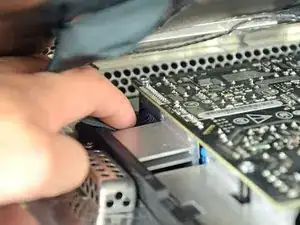

Tenendo ancora sollevato in display, premere saldamente il connettore del cavo dell'alimentatore con due dita per estrarlo dal relativo connettore femmina.
-
Per riassemblare il dispositivo, segui queste istruzioni in ordine inverso.
