Introduzione
Segui questa guida per sostituire l'SSD nel tuo Mac Pro.
Strumenti
Ricambi
-
-

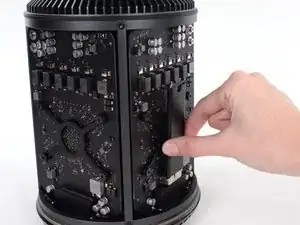

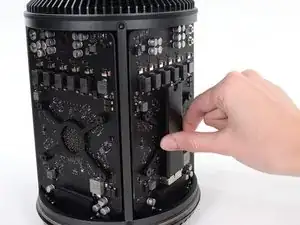

Solleva leggermente l'SSD dalla scheda grafica.
-

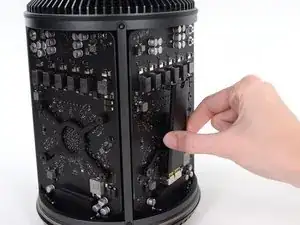

Sfila l'SSD dalla sua presa sulla scheda grafica tirandolo verso l'alto.
-
Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
8 commenti
Will a 970 evo 512 gb pcie m2 fit on here?
Sam Yao -
As long as the drive is not the Plus version, you may be able to use an adapter in order to use that SSD in your MacPro6,1:
https://www.amazon.com/Sintech-Adapter-U...
I have not tried this, but am, currently, researching a fix for a machine in my care.
Yes—works very well with the Sintech adaptor (and even with an EK-M.2 NVMe Heatsink — use thermal paste for longevity!).
Just did this yesterday and it’s a great/fast/easy upgrade.
Do you need a heat sink in the SSD?
The stock (Samsung) drive(s) that shipped (from Apple) with these machines do not; unless the black, outer covering helps with heat. [???]
I have had both a Samsung MZ-JPU256T/0A1 (256GB) and Samsung MZ-KPU1T0T/0A1 (1TB) installed in my machine without issue.
Third-party drives may include or heatsink and/or require at least 10.13 (High Sierra).
You don’t *need* one, strictly speaking, but at best your SSD will get throttled in terms of speed and at worst it’s lifespan will be reduced.
That black outer covering on the original drive IS a heatsink.
Is it possible to buy the screw separately?
