Sostituzione Taptic Engine iPhone 6s Plus

Passo 1

Prima di iniziare, scarica la batteria del tuo iPhone sotto il 25%. Una batteria al litio-ioni carica può prendere fuoco e/o esplodere se viene perforata accidentalmente.
Spegni il tuo iPhone prima di iniziare lo smontaggio.
Rimuovi le due viti Pentalobe P2 da 3,4 mm sul lato inferiore dell'iPhone, vicino al connettore Lightning.

Make sure you use the correct screw driver tip to remove these screws, which for the iPhone 6s Plus is the P2, otherwise you may strip the tip of the screw making it 10 times harder to remove. If once the screw is lose, it will not come off, use a magnet to remove it.

Miguel Perez - 30/12/17

If I do it by myself, will it damage the water resistant strip?

I know iphone 7 have it ,but I am not sure 6s plus have it.

Ganqian Zhu - 02/01/18

iPhone 6s has an adhesive gasket under the display, similar to the iPhone 7—however, it doesn’t add much in the way of waterproofing since the 6s has non-sealed openings in other parts of the phone. Water resistance on the 6s is primarily internal (seals around the logic board connectors, etc.). It may still be worthwhile to replace the adhesive on the 6s in order to help keep the display firmly seated so it doesn’t move/wobble at all under pressure, but the phone will continue to work fine whether you replace the adhesive or not.

Jeff Suovanen - 08/01/18

Salve nella procedura iniziale di smontaggio display con la ventosa non è menzionato il fatto di scaldare i lati del display per “ammorbidire” la striscia che incolla il display alla scocca.

Non è necessaria la cosa o è consigliabile ?

grazie

Hello, in the initial disassembling procedure with the suction cup, it is not mentioned how to heat the sides of the display to "soften" the strip that glues the display to the body.

Is not the thing necessary or is it advisable?

thank you

Daniele - 17/03/18

You’ve probably received your answer by now but for future enquirers, it does help the process of taking the screen off if heat is applied to the screen. If you have a hair Dryer use that on a low setting to heat the edges of the screen until it’s almost too hot to touch then slip very thin metal spudger around the edge to cut the adhesive. The carefully lift the screen with the help of the spudger and continue with your repair

Cheers Wayne

Wayne Lyell - 01/05/19

How do I know that the Battery has ZERO Charging Cycles on it when it arrives ? Is there a (downside) to Higher Capacity batteries ? It is INCREDIBLY DIFFICULT to maintain a “Zero Chinese Products Lifestyle”, so how do I know that I’m not getting a deficient Chinese battery, potentially a refurb. battery ?

integritybuilders - 18/03/18

When your repair is complete, you can use coconutBattery to check your new battery stats and cycle count. (A properly tested battery may already have a charge cycle or two on it.) Avoid higher capacity batteries on iPhones—they’re generally either gimmicks, unsafe, or both. As far as the quality of the part, that comes down to how much you trust your supplier and whether they guarantee the product.

Jeff Suovanen - 19/03/18

So I need to empty the battery to zero percent?

johnpatrickanat - 08/04/19

Below 25%, exactly as stated in the instructions. There’s no benefit to draining it further than that, and in fact you’ll slightly shorten the service life of the battery by draining it all the way to zero. Follow the instructions exactly as written—if you go off-script, you’re a lot more likely to break something.

Jeff Suovanen - 08/04/19

So my screen shattered completely and the screen first had colored lines on tge while right side then it went out completely. If i get an lcd and digitizer replacement I'd that oing to fix it

shellietheleo - 04/07/19

I would initially recommend a well-lit, comfortable area and placing the screws on a white piece of paper with the screw sizes written down (apparently there are magnetic mats, also). Also, I found placing the phone on a paper towel is good so that if a screw is dropped, it will lessen the likelihood of bouncing away.

Lou Fazio - 30/12/19

I recommend that, before you even lift a screwdriver or plug in the hair dryer, get a piece of paper and a pencil. As you unscrew and remove the parts, write the size and/or number for that step and put them by their label. I also used a microscope to identify the screw heads (I'm 75 and my vision is not what it used to be). Laying them out in order, I just went backwards when putting them all back in. I used an anti-static cleaning cloth instead of paper, but I should think they both will work.

N.B.: my kit had a nice pretty blue plastic sheet with a black outline on it. It was only when I put the whole phone back together and was packing up the supplies and tools that I realized it was a replacement gummi seal. A LABEL WOULD BE VERY USEFUL HERE!

I am a retired engineer, and aside from the size of the bits and bobs, it was a piece of cake! Thanks...you saved me $75!

P. Roberts -

Passo 2

Se non disponi di un Anti-Clamp, segui i prossimi tre passaggi per utilizzare una maniglia a ventosa.
Applica del calore moderato sul bordo inferiore dell'iPhone utilizzando un iOpener o un asciugacapelli per circa un minuto.
Il calore ammorbidisce l'adesivo che fissa il display, rendendolo più facile da aprire.

This is important. I’ve serviced a lot of iphones/ipads for my family as a hobby in the past.

The adhesive was so tight, I cracked the screen trying to pull it/pry it off.

I highly suggest heating at least the bottom edge enough to soften the adhesive

garbage911garbage - 29/04/19

I didn’t have an iOpener, nor a heat gun; however I do have a small personal size hand pillow filled with feed corn. Two minutes in the nuke machine got it plenty warm, and smelled like fresh popcorn too.

bradiac - 22/06/19

I would suggest that you are not shy with the hairdryer. A high heat on the bottom of the phone for at least a minute, if not more, if required.

Mark Taberham - 20/02/21

Passo 3

Con l'apertura del display del 6s Plus, si staccherà una sottile striscia di adesivo attorno al perimetro dello schermo. Se preferisci sostituire l'adesivo, tieni pronte delle nuove strisce adesive prima di continuare. È possibile completare la riparazione senza sostituire l'adesivo e probabilmente non noterai alcuna differenza nella funzionalità.
Applica una ventosa nell'angolo inferiore sinistro del gruppo display.
Se il tuo schermo ha molte crepe, coprirlo con uno strato di nastro adesivo può consentire alla ventosa di aderire. In alternativa alla ventosa può essere usato un nastro adesivo molto resistente. Se anche così non funziona, puoi usare della supercolla (cianoacrilica) per incollare la ventosa al vetro rotto.

take out screws first!!

Yoav Karmon - 15/04/17

Make sure you use the right screw driver tip for i phone 6s Plus, which is the P-2. If the screw will not come off once is lose, try using a magnet.

Miguel Perez - 30/12/17

My cracked screen prevented the suction cup from sealing. SOLUTION: With a piece of clear packing tape across the screen, the suction cup will seal and pull.

Jim Cowles - 17/01/18

I broke my iphone screen in the first step!

Pierre Bertram - 06/10/19

This screen removal step got more wrestley than I anticipated. The adhesive is quite strong. I used a flat-ended razor tool that I have to begin the prying - I don’t know how I would have got it started without this.

Lou Fazio - 30/12/19

Ok - just got my battery replacement kit and even got the opening kit for added insurance just in case. Settled down to startwork after carefully cleaning my (immaculate) screen - no scratches or anything, with rubbing alcohol, removing screws and warming with a hair dryer, only to find the suction cup provided in the kit is worse than useless! It won’t stick to the screen well at all. When it does - it pops off at the lightest pull :-( Now what do I do to get this started?!

CoffeeCup -

Passo 4

Tira la ventosa con una pressione forte e costante per creare una piccola fessura tra il pannello anteriore e il case posteriore.
Tirare troppo forte potrebbe danneggiare il gruppo display. Applica una pressione appena sufficiente a creare una piccola fessura tra il gruppo display e il case posteriore.

I had a shattered front glass panel so I could not get the suction cup to seal properly. I tried a couple of different ways to get good suction but to no avail. I eventually used a Stanley knife to pry up the corner so I could get the spudger into the opening.

John Architzel - 23/06/17

A really high quality packing tape over the entire screen will usually be enough to use the suction cup on a shattered screen.

djwooten - 11/07/17

I used a suction cup on each side to provide counter traction. I braced the iphone between my knees and pulled apart while my helper inserted the spudger

jkanne - 09/09/17

This was by FAR the most difficult part of this whole thing. I confess the spudger was not cutting it so I used a butter knife to get into the small opening first, then used the spudger to go around the screen.

Julie Sanchez - 27/12/17

Hey everyone, if you never have done this part before be aware there is an extremely strong adhesive around the lip of the screen and once again is extremely strong. I had to get a friend to insert the pry/pick into the small gap while I used one hand to brace the phone down and the other to pull the suction cup without it digging into my hand. Go slow, it took me 5 tries because I didn’t realize how strong the adhesive was.

bartmistrot - 13/01/18

I also had a badly cracked lower screen - that glass was actually threatening to pull off the phone in chunks during this step, even with packing tape. Resorted to @j2arch’s tip and inserted a utility knife vertically into the seam between the display and phone body. Was able to lever the glass enough to get the spudger in there.

Jason Augustyn - 22/01/18

I have replaced sevrel screens for my sister in law and my niece. The packing tape has worked every time and that’s with it Shattered and pieces already falling out. You have to make sure the packing tape goes to the edge of the screen but doesn’t touch the frame. I have the plier like screen remover and use that it is much easier to remove the screen by your self with that tool. I also have the little finger suction cup that comes with the kit here. I bought the plier suction cup tool When I had to replace the screen that had the pieces of the screen missing and I don’t regret spending the extra money for that it has made a world of difference. I do this as a hobby it’s not a job for me. The electric divide repair kit from Lowe’s is also a very good kit to help. If you’re only going to do it once the kit that comes with the package is a great deal from ifixit. Well worth the money to spend the little extra to get the kit if you all ready don’t have the tools.

Brent - 14/03/18

If you try to use the spunger near the home button and try to pry it can crack your screen. This happened to me.

Jeffrey - 22/11/18

Same thing happened to me. This should be a big warning in these steps. If you have a small to moderate crack in you screen, but you weren’t planning on replacing the screen at the same time as another repair inside, there’s a risk of damaging the screen further and making it inoperable.

DW7ACCT -

I found it easiest to use two suction cups. One on the front as directed, and a second one on the back. Give the spudger to your assistant, and have them slip it in place while you pull the display from the case.

gordojenkins - 07/07/19

I gave up with the suction cup as it wasn't working for me with a cracked screen. Having heated the bottom of the phone with a hair dryer with a high heat for a good minute or so, I used a safety scraper (essentially a razor blade in a holder) along the bottom of the phone to separate the screen from the body of the phone. I used the scraper vertically between the bottom of the screen and the phone body and levered it sufficiently so that I could fit the spudger between the screen and the phone body. My experience when I first used the spudger around the frame was that the cracks in the screen caused the screen glass to separate from the frame, so I had to re-do it and ensure that the screen frame was separated from the phone body.

Safety scraper:

https://www.amazon.co.uk/Unger-CD170-Win...

Mark Taberham - 20/02/21

Passo 5

Il posto più sicuro da dove cominciare a far leva è l'intaglio nel pannello anteriore sopra il jack cuffie.
Mentre continui a tenere tirata la ventosa, inserisci la punta piatta di uno spudger nella fessura tra lo schermo e il case posteriore, direttamente al di sopra del jack cuffie.

This was by far the hardest part of the repair for me. Getting leverage while finding a way to prod with a spudger is a challenge in coordination. I used a second spudger with point holding the phone down by the headphone jack, with the other end of the spudger anchored to my desk.

drpotter - 12/07/17

When warmed, the suction cup was useless. Using the tip of a knife blade, was able to get it separated enough to insert spudger.

hutland - 09/02/20

For me this was the most time consuming task. I used a hair dryer for heating. I found a very tight adhesive. For a moment I thought of abandoning my efforts and take the assembly to a professional repairman. But as they say, patience is a virtue.

After fiddling for about 20 minutes, I achieved a barely noticable opening. So I decided to change the strategy. Instead of applying heat all over the base, I preceeded with small steps with heat concentrated near the opening. I applied intense heat only for about 15 to 20 seconds and immediately working with spudger. It took about an hour to completely open the case. It worked.

Thanks for reading.

- Mr Gamma

Gamma Pailvan -

I also struggled with this step. Lots of heat, 3 different suction cups, I finally could see a small gap... much too thin to fit even a piece of paper into. A video on another site said it was the easy way. I used a sharp craft knife barely into the seam between metal and glass and pried slightly. And it started up. Still a pain freeing the rest of the adhesive. Perhaps the adhesive really sets up over the course of 5 years? I have it hinged open now, so onto the next steps.

Mark Tollefson -

Passo 6

Fai ruotare lo spudger per allargare l'apertura tra il pannello frontale e il case posteriore.

just changed the screen, but due to the tape along side the screen , it is best to heat a little so the glue losses and you can get the screen off better, like indicated

Bart Blanckaert - 13/03/18

Passo 7

Mentre continui a tirare saldamente la ventosa, fai scorrere l'estremità dello spudger sotto il lato inferiore sinistro del display.

Passo 8

Fai scorrere lo spudger lungo il lato sinistro del telefono, tra il pannello frontale e il case posteriore.

Passo 9

Inserisci la punta piatta di uno spudger sotto il lato destro del telefono.
Fai scorrere lo spudger lungo il lato destro.

Passo 10

Usa una leva di apertura in plastica per tenere giù il case posteriore mentre tiri la ventosa per aprire il telefono.
Non rimuovere completamente il display per non danneggiare i cavi dati che collegano lo schermo alla parte superiore dell'iPhone.

Passo 11

Tira la sporgenza sul lato superiore per rimuovere la ventosa dal pannello anteriore.

Remember to apply the screen gasket on the re-assemble. The gasket is provided in the kit but not mentioned here on the instructions.

Won Hong - 07/01/18

There’s a link to the entire gasket replacement procedure in Step 21.

Jeff Suovanen - 08/01/18

Passo 12

Afferra con delicatezza il gruppo display e sollevalo verso l'alto per aprire il telefono, usando le clip nella parte alta del pannello anteriore come una cerniera.
Apri il display a un angolo di circa 90° e appoggialo contro qualche cosa per tenerlo sollevato mentre tu lavori sul telefono.
Non aprire il display oltre 90°: è ancora connesso alla parte alta del telefono dai cavi del display, del digitizer e della fotocamera anteriore.
Usa un elastico per tenere il display in una posizione sicura mentre lavori. In questo modo eviterai di forzare i cavi del display.
In caso di necessità, puoi usare la lattina di una bibita ancora chiusa per tenere sollevato il display.

if the display cables are damaged how can you tell ?

Smiley McSmilebot - 22/01/20

In theory, I like the idea of propping up the screen with a rubber band and box/soda can like this, but after ripping the FaceTime camera cable twice, I realize that this method puts too much stress on the cable because it places the screen so far back. Even in this photo, you can see that the cable is taut. I’d recommend just holding the screen with your free hand to put the least amount of stress on that cable as possible.

Ben Estabrook -

Passo 13

Rimuovi le due viti Phillips che fissano la staffa del connettore della batteria alla scheda logica:
Una vite da 2,9 mm
Una vite da 2,3 mm
Nell'esecuzione dei passi di questa guida, tieni nota attentamente delle due viti in modo che ognuna di esse sia riposizionata al suo posto in fase di rimontaggio. Una vite installata nel posto sbagliato può causare danni permanenti al dispositivo.

FYI - I used some blue painters tape wrapped around a piece of cardboard to hold the screws and brackets in place, in order, so they did not get lost. Some of those screws are MICROSCOPIC so be careful!

I also suggest having very good lighting, even a camping headlight for hands-free well lit work space. You will thank me later :-)

Julie Sanchez - 27/12/17

Use the bit labeled “PH000”.

Joe Teichert - 04/03/18

PH000 bit just wants to free-spin in the 2.3 mm screw. no bite in the head at all. had no difficulty removing the 2.9 mm screw with the same Phillips. had to abandon battery replacement effort.

Benjamin Stalcup - 07/03/18

For this part, neither PH000 or Y000 worked. Technically, it’ll set you back 31$ because you will need the PH00 screwdriver for this part, and the part where you need to open the screen. They have ph00 screwdrivers in every hardware store and even ifixit.com. just know that they put the wrong screwheads for you

Jack Daniel - 18/03/18

Do not lose track of which hole these screws go into. They MUST be put back into the correct hole that they came out of. If not, you will get the dreaded “long screw damage” on the mainboard, and that will be the end of the show.

Just remember where these screws go, and it will be fine.

Harry McDow - 25/04/19

Ended up employing a Philips #0 from a regular jeweler/precision kit on the 2.3mm screw. Bits seem a bit off for this step.

Vance Bell - 17/04/20

Passo 14

Rimuovi la staffa del connettore della batteria.

Does it matter if the brackets arent put back in the phone? I bought a used phone and brackets are missing. Thanks!

Coupon Crazy - 01/06/18

Auch die Abdeckung ist angeklebt. Also mit etwas Vorsicht und Geduld rangehen.

eckhardd@icloud.com - 17/12/20

If you have forgotten your High School German -

The cover is also glued. So take some care and patience.

Glen Paetz - 31/03/21

My bracket actually has a black wire connected on the underside that is attached to the metal bracket (with screw) below it in the picture. I decided to leave it on and just move it to the side.

Victor Ng-Thow-Hing -

Passo 15

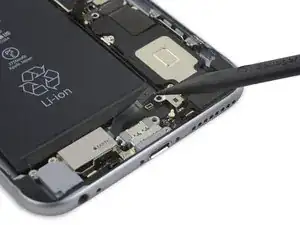

Usa uno spudger o un'unghia pulita per scollegare, sollevandolo verso l'alto, il connettore della batteria dalla scheda logica.

Passo 16

Spingi indietro il connettore della batteria per evitare il rischio di contatto e quindi di alimentare l'iPhone mentre ci lavori.

When putting the new battery in, make sure to line up the plug and not to the top of the battery… our battery was smaller so the plug would NOT have lined up if we used the top of the battery. ALSO, the plug was NOT 90 degrees so we had to finagle the plug. Also, make sure there is a clear CLICK when you plug in the connector or it may not work. Ours went in but guess didn’t go far enough so we had to take the screen off and push it harder until we heard the “click” then it worked fine.

Won Hong - 07/01/18

There was some black goop/glue around the battery connector, and when I lifted the old connector, some of that glue fell into the receptacle. It was easy to fish out (with magnifying glass and tweezers) but if you don't catch it, you may not get a good connection.

Steerpike -

Passo 17

Rimuovi le seguenti viti a croce Phillips sopra la staffa del connettore del Taptic Engine:
Due viti da 3,5 mm
Una vite da 2,7 mm

I skipped this. I believe the purpose is to make it easier to pull out the adhesive strips at a shallower angle, but I managed it without. One of the three strips did snap prematurely, but - I was able to fish it out with the tweezers, and resume the 'pull', and it worked!

Steerpike -
