Sostituzione batteria Astro A50

Scritto Da: Nicholas Eriksen
  • Commenti: 39
Sostituzione batteria Astro A50

Difficoltà

Difficile

Passi

5

Tempo Necessario

30 minuti

Introduzione

Questa guida mostra dettagliatamente come sostituire la batteria nelle cuffie Astro A50. Poiché la batteria delle A50 è agli ioni di litio, dopo un paio di anni di utilizzo medio sarà esausta. Comunque non c'è nulla da temere, in quanto una batteria di ricambio costa meno di 30€ e, con un saldatore e un cacciavite, puoi sostituirla da solo.

  1. VnELQARCvEgXHnWt
    VnELQARCvEgXHnWt
    EGXrjP2mpQbFVWAT
    Wy1kxZsuTBvZOnCw

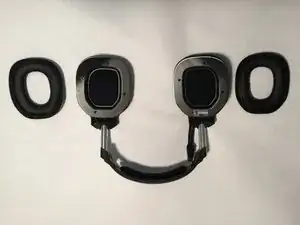

    • Per iniziare, rimuovi i cuscinetti in schiuma da entrambi i padiglioni tirandoli delicatamente via dal loro alloggio.

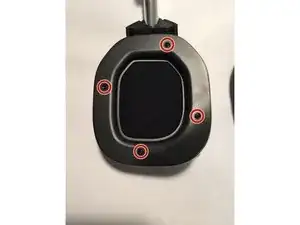

    • Usa un piccolo cacciavite a croce Phillips per svitare le 4 viti.

    microphone side

    Marco Lopes -

    Don't know what Marco is talking about mine was NOT the microphone side. Look at the pics…..

    Michael Hale -

    Gen 1 Astros have the battery under the mic side, no need to touch the other earpiece. Also the ear cushions can be a bugger to get back on, I suggest leaving them on/around the plastic piece and just move them aside to remove/replace the screws.

    Jody Richardson -

  2. UmqHZD2WjlmSroAQ
    UmqHZD2WjlmSroAQ
    saqwwEykWrXsJ3VV
    hQLsPCApUvETTmVX

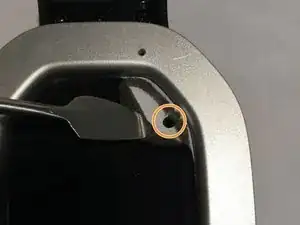

    • Sii molto attento mentre rimuovi le componenti che sono incollate, in quanto potrebbero spaccarsi.

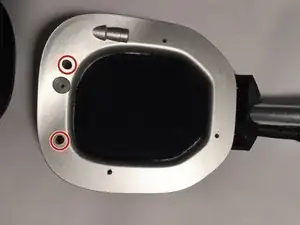

    • Dopo aver messo da parte le coperture in plastica nera, riutilizza il cacciavite per svitare le due viti.

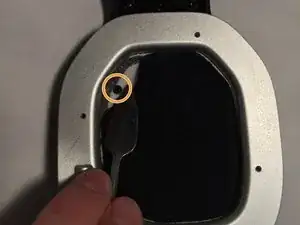

    • Trova le coperture interne in schiuma e solleva gli angoli superiori di ognuna per accedere e svitare le viti sottostanti.

  3. pgfWdEhRe5XmpKqV
    pgfWdEhRe5XmpKqV
    BQbZHtWvAetfrXgo

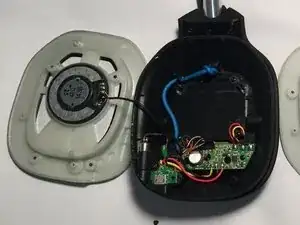

    • Apri delicatamente il gruppo dello speaker per accedere alle componenti interne delle cuffie. Presta attenzione per evitare di danneggiare i cavi neri.

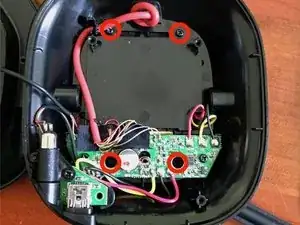

    • Svita le quattro viti evidenziate in rosso per rilasciare la copertura esterna delle cuffie.

  4. rClHu6xXlRpe3bLN
    rClHu6xXlRpe3bLN
    O4YoGUvF3AuYuYNJ

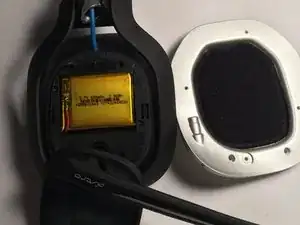

    • Gira la cuffia a e scopri la batteria spostando il microfono e la copertura esterna dall'alloggio della batteria.

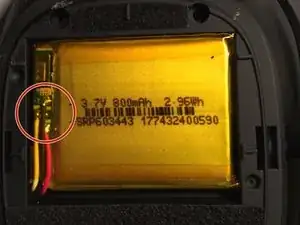

    • Dissalda I contatti della batteria per scollegare i tre cavi colorati dalla batteria originale. Segnati quale colore era in quale posizione per l'installazione della nuova batteria.

    • Rimuovi attentamente la batteria originale infilando uno strumento di apertura in plastica o uno uno spudger sotto la batteria per separare l'adesivo.

    • Non piegare o forare l'alloggio della batteria.

    My new battery has wires, then I have desoldered on the other side.

    Marco Lopes -

    Yeah, all batteries generally come with the wires but would be way more difficult to solder this side than on the board, the other side where you soldered is the same I did as well as others, those who soldered from the battery side are either wicked solders or brave as !&&* haha!

    STEP 3, PIC 2: This is the area on the far right side of where to work from for others coming to this guide! :)

    Lee Whittaker -

    I’ll echo other commenters here, it was easier to solder the connections on the ‘board’ side rather than soldering them here on the battery side. Board is featured in Step 3 Photos 1,2

    DRedBeard -

    • Per il rimontaggio, segui i passi dall'1 al 4 in ordine inverso:

    • Assicurati che i cavi della batteria siano saldati correttamente e che ogni colore sia sul contatto corrispondeente.

    • Usa una quantità minima di adesivo per riattaccare la schiuma dello speaker per evitare di sporcare nella cuffia.

    le casque A50 Xbox one gris vert na pas les acces au vis comme dans ce tuto. donc pour le moment je ne peu pas l’ouvrir

    Banzai -

Conclusione

Assicurati di provare la tua nuova batteria per controllare la riparazione abbia funzionato.
