Sostituzione batteria Galaxy Tab S 10.5

Scritto Da: Jordan Soto
  • Commenti: 28
Sostituzione batteria Galaxy Tab S 10.5

Difficoltà

Moderato

Passi

7

Tempo Necessario

15 - 45 minuti

Introduzione

Questa guida fornisce le istruzioni passo passo per rimuovere e sostituire la batteria del Galaxy Tab S 10.5.

  1. AqbDR6UevUpHD4Ky
    AqbDR6UevUpHD4Ky
    GoNFfW4gBVXBCBWT

    • Infila lo strumento di apertura in plastica nel lettore delle schede SD o nella porta di carica.

    • Fai leva verso l'alto finché non vedi una fessura tra il tablet e la copertura posteriore.

  2. X32DAYGcFxTVulOv

    • Fai scorrere lo strumento di apertura in plastica sotto tutti i bordi del dispositivo.

    • Se questa è la prima volta, sarà difficile separare la copertura posteriore dal tablet.

    • I ganci sono a circa 5 cm l'uno dall'altro. Mentre fai scorrere lo strumento, i ganci emetteranno dei suoni di scatto quando verranno rilasciati.

    It is not necessary to remove just the white part under penalty of breaking the pins, it is necessary to remove the back with the colored outline of the tablet

    paquito -

    Both plastic tools broke within the first two minutes of use. Had to resort to a narrow conventional flat screwdriver.

    Dennis Durost -

  3. 1L2FAwXS62ifNYtD

    • Rimuovi la copertura posteriore dopo aver rilasciato tutti i ganci.

    • Stai attento a non toccare nessuno dei componenti interni del tablet.

    This is the wrong method to open it! You have to open it beetween the front-Display and the golden rim.

    agnuz6569 -

    I’ve taken the back cover off my Samsung tablet, and in the process I have torn one of the little orange plastic connectors that are attached to the back cover. The connector I’ve damaged is the second one in on top left in the picture above. Can you please tell me if I need to replace this before I can get the tablet to work?

    Thanks.

    Tom -

    If you remove just the back cover - which to the uninitiated does look less scary than trying to get between the bezel and the display - you will destroy the tiny plastic rivets that lock the cover onto the bezel. More importantly, you will then find that getting to the parts you need to replace is rendered impossible because they will be hidden under the bezel, which of course will still be in place. So the correct way to take this tablet apart is the more challenging way i.e. separate the front display from the bezel and rear. But with care and the right tools this is still not too difficult. And if you are in any doubt about this, it is worth pointing out that in all of the photos below from Step 4 onwards, the work shown is taking place with the bezel removed. There is nothing written in this guide to indicate that this had to be done.

    PhilipHN -

    Have just gone through this process, successfully having read this and other guides and I totally agree with PhilipHN that the most reliable is the slightly scarier approach of removing the front display from the bezel and rear. It is easier overall, you just have to attack it confidently (but gently!).

    Jeremy Linskell -

  4. U66BQwRlTdUgUkqj
    U66BQwRlTdUgUkqj
    LCvDYUBI5aQkvNnn
    B6wCaFXEjiG3msRO

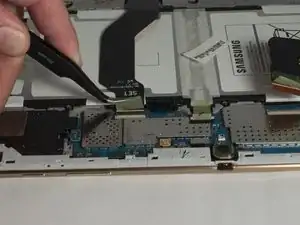

    • Usando delle pinzette, separa il nastro adesivo verde dai connettori ZIF dei due cavi a nastro neri.

    • Usa uno strumento di apertura in plastica per sollevare i ganci in plastica sui connettori ZIF.

    The ZIF connector on the angled ribbon literally fell apart when the tape was gently removed. Im wondering if that was my “battery" poem in the first place. Can that ZIF connector be replaced? If so, where do I order it? No problem with the other connector or replacing the battery, but it won't work with this broken connector,

    Gwen Beck -

  5. f4vPqhCRYmNSuPkQ

    • Svita le sei viti a croce Phillips #000 da 2 mm attorno alla batteria.

    6 screws or 4? I only see 4 screws on my tablet, the same ones visible in the photo.

    Tom Webb -

    4 screws it is!

    Dennis Durost -

  6. gojMfSp42vQXsZZr
    gojMfSp42vQXsZZr
    MgjiFvPXkSdedMwt
    6cwFQ1bYy62bidFS

    • Infila lo strumento di apertura in plastica tra la cornice e la batteria.

    • Fai leva con lo strumento di apertura in plastica per sollevare la batteria dal dispositivo.

  7. lceM4BTNCLB3BBoR
    lceM4BTNCLB3BBoR
    3hZEtPZ34CCyoPJY
    fj4cPdcACFfIrrFR

    • Tieni ferma la batteria e scollega la sua presa per rimuoverla.

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
