Sostituzione batteria Harman Kardon Onyx Studio 2

Scritto Da: Alexandra Achtenberg
  • Commenti: 33
Sostituzione batteria Harman Kardon Onyx Studio 2

Difficoltà

Facile

Passi

5

Tempo Necessario

10 - 15 minuti

Introduzione

Dopo aver completato la guida prerequisita per rimuovere il pannello frontale della cassa, potrai accedere alla batteria per sostituirla una volta esausta.

  1. dBMtxPy1K1rUnFpu
    dBMtxPy1K1rUnFpu
    iQOTA3V6DRt2d21M
    dQ2kJq1EW24lJYMB

    • Usando uno strumento di appertura in plastica, rimuovi la griglia frontale facendo leva sulla fossetta posizionata davanti il dispositivo.

    Where can I find a new front panel for my speaker

    consomme69 -

    If I take this off can I put it back on

    Burger King -

  2. o5SWK6TwGvJXXZkQ
    o5SWK6TwGvJXXZkQ
    jqcCAC2kkM2JaaRl

    • Rimuovi le cinque viti Torx T10 da 14.4 mm.

    There are NO torxscrews. You have to pull out the rubber grille grips that are inside the screw holes FIRST, then use a regular sized Phillips head screwdriver to remove the cover. No Torxscrewdiver needed. I found this out after I had already purchased one from you guys.

    phillip columbus -

    Mi bocina no tiene los 5 tornillos a la vista,tiene las cavidades ciegas, como lo abro???

    Eduardo Heine -

    Yes there are no Torx screws… you have to remove the rubber grips them the Philip Screws..

    Joe Lim -

  3. aLaClpNCSQVOuCfs

    • Delicatamente dividi la parte frontale da quella posteriore.

  4. 1SWuvDl2qU1UaEUc
    1SWuvDl2qU1UaEUc
    yCr1XiiAOCKacJsD

    • Rimuovi i 4 cavi che collegano il pannello frontale a quello dietro.

    • Scollega delicatamente la linguetta del connettore.

    • Ripeti la procedura per gli altri tre connettori.

    Please can I get a replacement of my panel to the phone

    Chinedu Ogunedo -

  5. HoCr3OpphLskQEVZ
    HoCr3OpphLskQEVZ
    Sl4yxYIZDYha33Gr
    aNCOEaN6n3i2Dhve

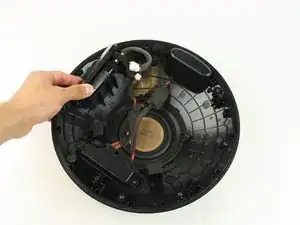

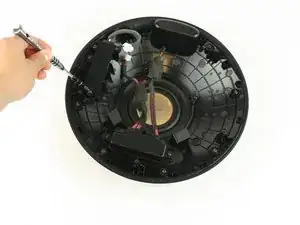

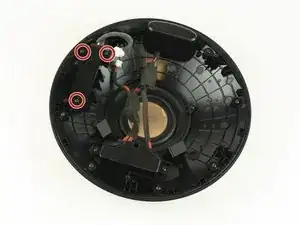

    • Svita le tre viti Torx T10 da 10,4 mm dalla copertura della batteria.

    • Rimuovi la copertura della batteria.

    • Tira fuori la batteria per sostituirla.

    What battery is the replacement? Are there one or two batteries inside? Could have been a good “how to instruction” but left out some important facts. Duh?

    David Forster -

    You should include that the battery compartment is in the BACK.

    Also, there are two compartments in the back. I tried to open the wrong one.

    My torx socket didn't fit into the central hole of that compartment. Arrrgh! So I used a drill to make the hole bigger, only to find upon opening that it was the wrong compartment.

    The correct one was easier to open. (!) I found I needed to wrap part of the new battery in electrical tape to avoid it rattling around.

    Putting it all back together had two challenges. There's a very thin rubber gasket that has to be delicately pressed back into its channel. Also, the larger rubber surround has to be placed appropriately on the various buttons (power, volume, Bluetooth).

    I'd rate this as “medium" difficulty.

    Craig Cunningham -

    BTW, the correct replacement for the single battery is easily found online by searching “replacement battery Harman Kardon Onyx Studio”. (Student One and Two use the same battery.)

    Craig Cunningham -

    Super

    merci Infiniment pour ce tutoriel

    Olivier Decoopman -

    This guide is not correct for all models. For Onyx studio 2, you have to open BOTH front and back panels and remove the metal stand. The screws are located under the back panel (regular Phillips screws and not Torx). Battery is a 11.1V 2500mAh (28Wh) model no. PR-633496

    Vivek Bakshi -

    Très bonnes explications merci. Je viens de changer pour la première fois la batterie.

    Quelques notes :

    1) J'ai récupéré les mousses anti vibrations de l'ancienne batterie pour les recoller sur la nouvelle.

    2) J'ai aussi récupéré (en coupant) le caoutchouc triangulaire qui lie les 3 fils électriques. Il permet de fixer les fils ensemble et surtout fixer la batterie dans le compartiment (les rainures sont faites pour ça).

    tmrmy -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
