Sostituzione batteria Lenovo Y50-70 Touch

Scritto Da: Nicholas Hardy
  • Commenti: 8
Sostituzione batteria Lenovo Y50-70 Touch

Difficoltà

Facile

Passi

5

Tempo Necessario

5 - 10 minuti

Introduzione

Le batterie si deteriorano nel tempo e dovrebbero essere sostituite se la dura diventa estremamente corta. Prima di rimuovere questa batteria, assicurati che il portatile sia spento e staccato dalla corrente.

  1. WBmPHG5EEUFm6O2e

    • Assicurati di spegnere il portatile prima!

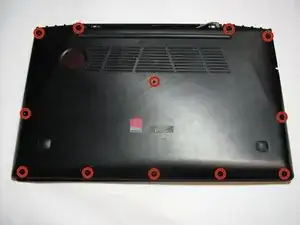

    • Svita le dodici viti da 6 mm sotto al portatile con un cacciavite a croce Phillips #1.

    • Premi il cacciavite con forza per evitare di spanare le viti.

  2. AwlO4H5hedyFWdJf
    AwlO4H5hedyFWdJf
    SZjewVPFJc5d4lVK

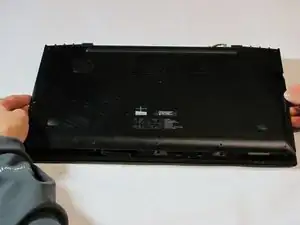

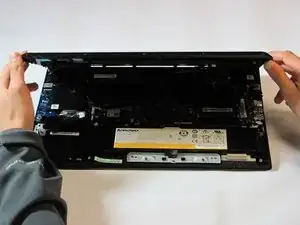

    • Tira via delicatamente la copertura inferiore del portatile. Dovrebbe venire via facilmente.

  3. vywj3iasaqtbyJt4
    vywj3iasaqtbyJt4
    AUxNFiLGiyPhdFgh

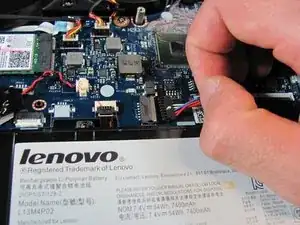

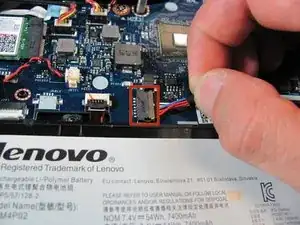

    • Scollega la batteria dalla scheda madre.

    • Non tirare troppo forte i cavi della batteria, in quanto potresti danneggiare la connessione della batteria alla scheda madre.

  4. 6DHaRDVwaZJNBrrS

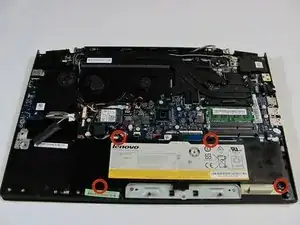

    • Svita le quattro viti da 6 mm sulla batteria usando un cacciavite a croce Phillips #1.

  5. fKqfMmsS6VYQKPwk
    fKqfMmsS6VYQKPwk
    wwQh3R5LwTD1DMJ2

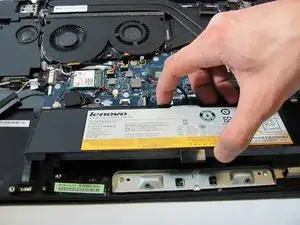

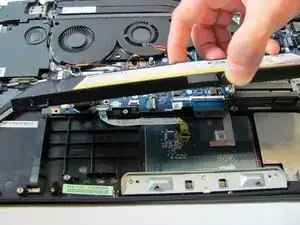

    • Solleva la batteria dal portatile.

Conclusione

Per rimontare il dispositivo, segui le istruzioni in ordine inverso.
