Sostituzione batteria Microsoft Surface Pro

Scritto Da: Jonathan Choi
  • Commenti: 37
Sostituzione batteria Microsoft Surface Pro

Difficoltà

Molto difficile

Passi

12

Tempo Necessario

1 - 2 ore

Introduzione

Segui questa guida per sostituire il pacco batterie del Microsoft Surface Pro.

  1. PQRaw1JYQHcXPT3o

    • Usa un iOpener riscaldato o una pistola termica per scaldare gli angoli dello schermo e allentare l'adesivo.

    • Se stai usando un iOpener possono servire più cicli di riscaldamento e applicazione per ammorbidire l'adesivo. Ogni volta, lascia appoggiato l'iOpener per almeno un minuto per ammorbidire l'adesivo prima di riscaldare nuovamente.

    Be patient. I spent at least 10 to 15 minutes warming and trying to pry up the screen with my spudgers and such. It got so hot I would use one spudger to hold the Surface from the opposite side while pried with the other spudger from the other side. I would get a little lip up and slide and when I felt resistance then I would heat more and make my way around the screen. I continued that many times until I was able to use the suction cup to pull it up.

    Dan -

  2. EOHRkJ6QFxp3uiIP
    EOHRkJ6QFxp3uiIP
    BXPWniVZPXxcTncM

    • Attacca una ventosa il più vicino possibile all'estremità dello schermo.

    • Usa la ventosa per sollevare il lato dello schermo quanto basta a poter inserire uno strumento di apertura sotto il lato.

    • Fai scorrere lo strumento di apertura lungo tutto il perimetro dello schermo per rimuovere l'adesivo.

    • Non inserire lo strumento di apertura più in profondità del bordo, altrimenti potresti danneggiare irreparabilmente lo schermo.

    • Fai molta attenzione e agisci lentamente durante queste operazioni. Lo schermo è fragile e si può frantumare se applichi troppa forza. Se lo strumento ti sembra bloccato, applica dell'altro calore per ammorbidire l'adesivo.

  3. 2UrRBYvTW4QOb5Hg
    2UrRBYvTW4QOb5Hg
    klYqJPJEuhcaOIsr

    • Cominciando dal lato superiore, alza lo schermo un po'. Se avverti una qualche resistenza, usa il calore e uno strumento di apertura per tagliare l'adesivo rimanente.

    • Prima di rimuovere completamente lo schermo, scollega i tre cavi dello stesso.

    【注意!!】 画面ガラスの下部の接着がデジタイザーのフレキケーブルとも接着されています。

    両面接着剤の温めが甘かったり、無理に剥がそうとするとデジタイザーのフレキケーブルが切れますので丁寧に作業を行って下さい。

    Tacky Sato -

    my surface pro 1 has 4 flat flexi-cables connected.

    I don’t know how to put back the narrow flexi cable. It is too thin and without a pulling tape?

    Kenneth Siu -

  4. qXyDDSIUyJjkrIpV

    • Rimuovi lo schermo.

  5. SHDqlEDmysWGwlhD
    SHDqlEDmysWGwlhD
    HyGOfRXhUdthHtOJ

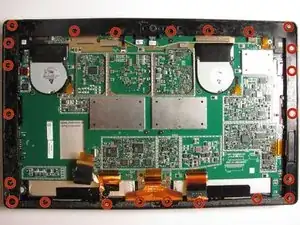

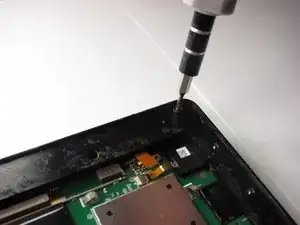

    • Usando un cacciavite Torx T3, rimuovi le 23 viti da sotto la cornice del display del Surface Pro.

    My Surface Pro 1 needs a T4 screwdriver for these screws.

    Sheryl -

    Mine used T3s.

    Dan -

  6. cXySQytDQXOSAMZG

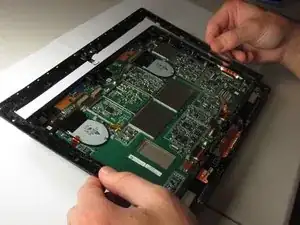

    • Rimuovi la cornice dello schermo dal Surface Pro.

  7. fLh1LuLRtEGPnCq4
    fLh1LuLRtEGPnCq4
    HYlZ5SFNuEAsJ4Kx

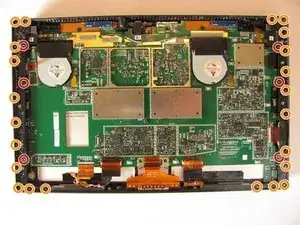

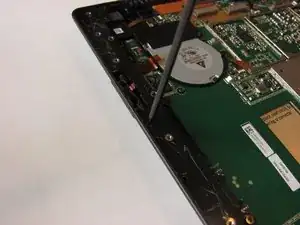

    • Svita 6 viti T5 dai 2 supporti su entrambi i lati della cornice.

    • Svita 23 viti T2 dai 2 supporti.

    On my Surface Pro 1, the screws labeled as T5 are T3.

    Sheryl -

  8. ZAuBv4YDTXJfonF5

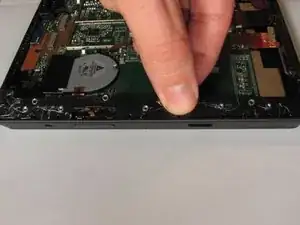

    • Rimuovi entrambi i supporti in metallo dalla cornice.

  9. 3dBtKYaIQtOIQeKy
    3dBtKYaIQtOIQeKy
    OddFm5vvmP1kI6JH

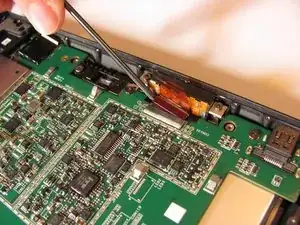

    • Usa delle pinzette per rimuovere delicatamente gli otto cavi a nastro dalle loro prese.

    There’s an additional black ribbon cable (top center in picture) that needs to be unplugged. Also, open the release for the cables before trying to pull them out.

    Sheryl -

  10. 2m6B4STyb4A6Yrle
    2m6B4STyb4A6Yrle
    5QjkuAndAKfIcTKb

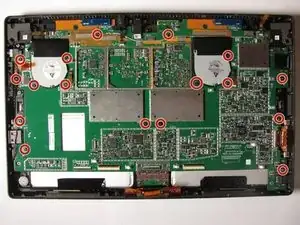

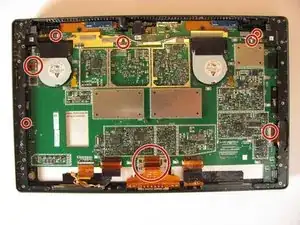

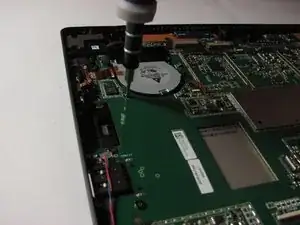

    • Svita le 17 viti Torx T5 sulla scheda madre.

    There’s an 18th screw that needs to be removed. It’s in the upper right corner of the picture, but not circled.

    Sheryl -

    The 6 screws holding the fans in place should not be removed (3 on each side - heads look different). They just attach the fans to the motherboard.

    Sheryl -

    One of these screws is thinner than the others, which I didn’t notice until I started screwing them back in.

    Sheryl -

  11. VCx6KSwFdPASmekT

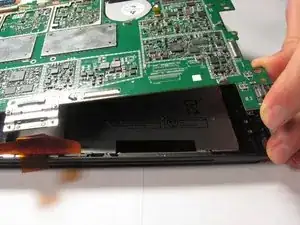

    • Rimosse tutte le viti, solleva delicatamente la scheda con le mani per rimuoverla.

  12. vehwGJgQM4fE2NVw
    vehwGJgQM4fE2NVw
    wAq3OAKLhiSHdONa

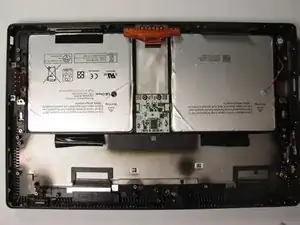

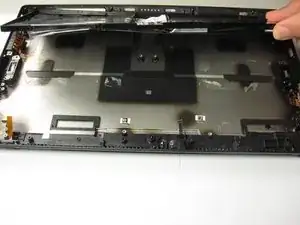

    • Rimuovi con le mani l'intero pacco batterie facendo sufficiente forza per staccarla dall'adesivo che tiene ferme le celle.

    This is possible to do. The worst part are all the tiny screws and glue to get the cover and touch screen off. I bought the battery for $45 off of Ebay and a set of four Torx screw drivers for $5.

    Tips:

    check the 12V coming into the main board after the cover is off. You will see a red boot light on the main board flash for a sec. You should hear the tiny fans going.

    Use an external monitor and cables to check the per and boot before putting it all back together.

    Sal V -

    I wonder how many could serviced in one day 4 ? We just been asked to service on a regular basis, finding some information on this thanks for the service breakdown..

    Pete -

    I am looking to get mine repaired and I am terrified to do it myself. Do y’all know somewhere I can send it.

    Payton Mitchell -

Conclusione

Per riassemblare il tuo dispositivo, segui i passi di questa guida al contrario.
