Sostituzione batteria PRAM PlayStation 3 Slim

Scritto Da: Andrew Bookholt

Commenti: 59

Sostituzione batteria PRAM PlayStation 3 Slim

Difficoltà

Moderato

Passi

Tempo Necessario

20 - 30 minuti

Introduzione

Segui questa guida per sostituire la batteria a bottone CR 2032 della PRAM nella tua PlayStation 3 Slim.

Strumenti

Ricambi

Passo 1

Capovolgi la PS3 e poggiala sulla parte superiore.
Facendo attenzione, rimuovi l'adesivo di garanzia presente nella parte sottostante della console per trovare la copertura di una vite nascosta.
Per evitare di perdere la garanzia, scalda il relativo adesivo attentamente per rimuoverlo e quindi rimpiazzarlo in modo pulito.

Don’t even need to bother with the sticker anymore since SONY does not care what you do with them anymore.

Travis Wheeler -

Passo 2

Usa l'estremità piatta di uno spudger in metallo per sollevare le sette coperture delle viti attorno al bordo della parte inferiore della console.

Passo 3

Rimuovi le 7 viti Phillips da 37 mm che uniscono la cover superiore a quella inferiore.

Passo 4

Rimuovi le 4 viti Torx da 13,3 mm sotto l'apertura del drive Blu-Ray (alcuni modelli possono avere solo 3 viti).

Its 4 screws beneath the blu-ray

Manuel -

Remove the four 13.3 mm T8 security Torx screws beneath the Blu-ray drive opening.

Daniel Tlapa -

Can we edit this to say 4 screws?

revanantwraith -

I made the change from three to four screws, but you're able to edit the guides as well. If you want to edit something, you can click the Edit link on the right side of any guide step, or the Edit link at the top right of the page (sandwiched in-between View and History).

Taylor Arnicar -

Do you guys have a guide for the PS3 Slim Model 3001A. The fan is different than this model.

emknight04 -

3001a is basically same motherboard but cheaper plastic bd drive other than that its exactly the same until you get to the new slim line

Robert -

Anyone know an online retailer with a competitive price for the replacement fan?

Jared -

My PS3 had only three Torx screws. Having four in the diagram was initially confusing. Obviously they made a mid-stream change at some point (mine is several years old now).

corygbooker - 03/12/14

I've accidentally removed the ribbon cable from the blu-Ray drive and can not seem to figure out how to reconnect it. Can anyone help?

OneIfByLand - 29/10/15

Take the top off the drive, connect the ribbon to the motherboard then replace the drive sliding the ribbon through the slot on the bottom of the drive and reconnect to the laser.

KcXbox Repair - 31/01/16

pls help i have to tear down my ps3 slim but the 4 srews are very hard to take it out because there is a needle in the middle pls hep

vbrabandt - 26/11/16

If the screw has a pin in the center, that means it is a security Torx meant to prevent tampering. To remove this screw, follow the guide I have linked below...

http://www.instructables.com/id/Removing...

Telpack - 05/02/17

How do u buy the screw driver for these screws

mistergalacta hoggy - 09/08/19

Online at the usual suspects?

Or some hobby stores or places that sell tools will sometimes carry these.

revanantwraith - 04/01/21

Anyone else's screws for this step need the T7 bit instead of T8?

Michael J Cotton -

What is the name of this screwdriver

Mohammad Shawa -

Passo 5

Solleva la cover superiore dal suo bordo posteriore e ruotala verso la parte anteriore della PS3 (dove presenti i tasti ON/OFF e EJECT}.
Rimuovi la cover superiore del PS3.

I just want to open the top cover to clean the fan. Do I need to unscrew the four security screws?

Aryan - 12/04/21

Passo 6

Premi la leva di bloccaggio del connettore del cavo di alimentazione AC e tiralo verso l'alto per scollegarlo dall'alimentatore.

Passo 7

Tira verso l'alto il connettore del cavo di alimentazione DC per scollegarlo dalla sua presa sull'alimentatore.

Those two screws are tight down there what do you recommend I use?

Megan bronner - 07/08/18

Passo 8

Svita le due viti a croce Phillips da 7,6 mm che fissano l'alimentatore alla scocca inferiore.

Question: if a screw doesn't come out, what do you recommend, without potentially damaging the system, inside and out?

kramiz2488 - 29/06/16

It seems these can be quite tight, but they did come loose with someextra force in my case. They did that thing where it makes cracking sounds, but nothing really breaks. They're just really tight in there. - I just wouldn't recommend taking these out too often.

Michael Hendriks - 15/12/17

The screwdrivers on the guide didn't work mine just don't come out any tips model is slim CECH 2001A

Step 8

Jose Arrieta - 22/08/20

These screws work as a ground pass through between the motherboard shields and the power supply. My cousin took his PS3 to a repair shop to replace the power supply, they didn’t put the screws back in after that and the PS was shutting down suddenly (no light green or red), put a couple of new screws and it’s being working fine since

Mauricio González - 31/05/21

Sometime ago i took apart my PS3 out of curiosity, When puting it back together, i messed it up, I stripped one of the PSU screws. Now, i can't take it apart for a paste replacement. Any ideas?

Franco Iván Bello Rojas -

The screws don't come out how do I fix this without breaking anything

Suck dick -

I had the same problem with very tight screws on PS3 power supply. I solved it by purchasing a Screw removal / extractor gripping pliers long nose style , with unique non-slip jaws for quickly extracting damaged / stuck screws. ENGINEER PZ-60 Neji-Saurus,Silver. ( bought mine on Amazon)

These pliers have special grips on tapered end to hold and turn stripped or rusty screws. It took a lot of effort, but screws finally came out using these pliers. A bit of sewing machine oil and prising under the washers with a flat screwdrvers helps too. Failing that, take it to repair shop as they are VERY TIGHT screws on some models of PS3.

hubert hanks -

Passo 9

Solleva l'alimentatore dal bordo sinistro (guardandolo dalla parte anteriore della PS3).

Passo 10

Continua a sollevare il bordo sinistro dell'alimentatore finché supera le due barre in metallo mostrate nella seconda immagine.
Rimuovi l'alimentatore dalla PS3, stando attento a non impigliarlo in dei cavi.

It seems it kind of ends for me here. I can only lift the left side about an inch and then the right side stays down like it’s stuck to something underneath. It feels like I’m bending something. Could something have melted underneath?… It's really stuck, I can't get it to come loose. And I can't see much shining a light into it either. - Any tips?…

Michael Hendriks - 15/12/17

Did you undo the screws?

Phoenix Jameson - 22/01/20

I had the same issue but was able to get it off. The right side (as per the above picture) has two long column like sections that actually goes into the machine. Took me a bit of wiggling and some brute force.

Ivan Amaro - 28/12/17

You just lift the whole power supply up. There’s no need to start from the left? Is it possible to bend the two metal posts if lifting from the left?

Ken - 08/08/20

Needs medium flat screw driver as wedge to help to lift the power supply in the right side or exert more force in your right arm provided the front of PS3 is at your front.

Dasol - 18/12/20

Um, I translated the guide from French to English and the name of the guide was “Food” and the description said “This guide shows you how to replace your diet” The translation is incorrect just to let you know!

Liam Kandell - 14/03/21

Hi! Thanks for you attention! But no worries, the French word “alimentation” means power, food or diet depending the context.

Claire Miesch - 15/03/21

Alright, thanks!

Liam Kandell -

Passo 11

Se sono presenti, rimuovi i pezzi di nastro che tengono fermi i cavi sull'involucro del lettore Blu-Ray.

What does the white and black cable?

Robert Brown -

They are the wifi and Bluetooth antenna connections

Jason Dufford - 03/08/23

Passo 12

Usa la parte piatta di uno spudger o un'unghia per sollevare l'aletta di bloccaggio del connettore del cavo a nastro del Blu-Ray.
Assicurati di fare leva sull'aletta di bloccaggio mobile, non sulla presa.

On some models, like the CECH-2501B, there are multiple ribbon cables that connect the Blu-ray drive to the motherboard. The ribbon cable with this particular retaining flap may be found underneath the Blu-ray drive itself. Reattaching that ribbon cable to its socket underneath can be very difficult, but not impossible. it just requires a skilled hand and plenty of patience to get it done.

Winston Nomad -

Passo 13

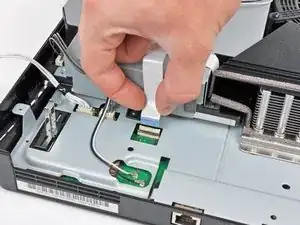

Tira il cavo a nastro del lettore Blu-Ray verso l'alto per sfilarlo dalla sua presa.

Passo 14

Tira il cavo di alimentazione del lettore Blu-Ray verso l'alto per liberare il connettore dalla sua presa sul lettore.

Passo 15

Svita la vite a croce Phillips da 9,5 mm che fissa il lettore Blu-Ray alla scocca inferiore.

Passo 16

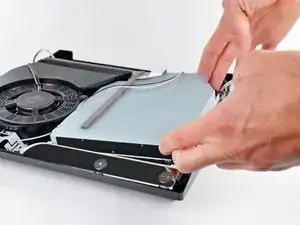

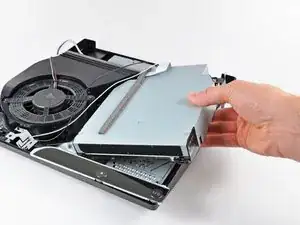

Solleva il lettore Blu-Ray dal suo bordo destro per rimuovere la scheda di controllo dal suo alloggio.
Rimuovi il lettore Blu-Ray dalla PS3.
Dopo aver reinstallato il lettore, assicurati che la scheda di controllo sia ben posizionata nella scocca inferiore prima di procedere.
Se stai sostituendo il lettore, trasferisci la scheda logica originale su quello nuovo.

my cd drive has 3 cables, two by the fan, one right under, i believe i damaged the one on the bottom because it is very difficult to put back in hence the repair. But the photos here dont show the 3 cables, not sure if you have one for this model?

Eduardo Cutino - 30/05/14

I followed the steps and I successfully removed my disc drive the guide was helpful but I had issues and the ribbon cables on my replacement disc drive were too short after a soddering attempt failed I now need to rebut a disc drive can someone direct me to a proper replacement with the correct size I need it's a ps3 slim 120G please help

Nick - 27/09/14

I popped a friends apart to see if I could put in mine, which won't stay online for more than 1minute 10 seconds. Plays DVDs fine. Anyway, his had 3 cables and mine only has 1. How do I know which DVD player to order?

ntdoc - 02/02/15

Completely different drive in my slim. 3 ribbon cables on the back that pull straight up out of their connectors. And one wide ribbon hidden underneath and almost impossible to get to. After disconnecting the 3 visible cables lift the back of the drive about 3/4" and use a plastic spudger to release the clip on the cable before lifting off the drive. Reinstalling is a nightmare. The cable has a black line to indicate how far to insert into the connector. Get it in there somehow then use the spudger to push the clip down. If it's not level release it and try again and again and again until you get it right. Sony must use some awfully small fingers when they build these ;-)

jurquijo - 15/06/17

I had the same issue with the ribon feeding beneath the blu ray player. This video provided a much better solution. It requires dissassembling the blu ray: https://youtu.be/Upy2bTev3M0

Rebel Seven - 27/08/17

My disk drive needs to be replaced. Your step by step is straight forward and are very helpful. At the end you mentioned “If replacing the Blu-ray drive with a new drive, swap the circuit board from your old drive into the new drive”.

Which circuit board? Can your please add a picture of the circuit board you are referring to?

Henry - 12/03/18

@hh168 There’s now a link in the text of that step, which will take you to a video with detailed instructions for swapping the board.

Jeff Suovanen - 18/06/18

First I replaced the drive and it would load a disc and see that it was either a game and which game or a BluRay or DVD and which, but I got error codes when trying to play them.

The codes seemed to be tamper coding, and swapping the board seemed to be a good idea.

It went smoothly, but now discs will not feed into the drive.

Please help.

Zachary Mannes - 23/12/19

Passo 17

Mentre tieni premuto il sistema di bloccaggio in plastica sulla scheda, usa la punta di uno spudger per rimuovere la batteria della PRAM dal suo alloggio.
Non tenere premuto il sistema di bloccaggio potrebbe causarne lo strappo dalla scheda madre durante la procedura di rimozione della batteria.

I didn't force the battery out here at all but when putting out back in it feels so loose. What could be the problem

jeffery marshall - 13/03/21

Wrong type of battery, perhaps? A 2016 battery will be the same diameter as the (correct) 2032 battery, but thinner.

C. Scott Ananian - 23/03/21

My PS3 did not have the convenient cutout as in the picture of step 17. Instead there was a grill through which I could see the battery. I had to figure out how to remove that plate completely.

You have to disconnect the fan power, and the Bluetooth and WiFi cables from the board, then open around 5 marked Philips screws. Unscrew 2 smaller screws holding the hard drive assembly to the case.

Then you have to lift the motherboard from the case by pulling at the other end of the board from the fan. Underneath there are another set of marked Philips screws. Two sets of larger Philips screws hold down the brackets for I guess the CPU and GPU. Finally you can get at the coin cell and replace it.

Absolutely ridiculous design, probably meant to make the consumer run to a Sony service center. Unfortunately I did not take pictures of the process and hopefully the battery will last another 5 years or so before I have to do this exercise again.

One more thing. The Blu-Ray drive in my unit has different cabling. One of the cables is underneath the drive and might easily get damaged. Replacing it back in the socket also requires care and time.

Sanjay Mehta - 10/06/21

That's because your ps3 is a newer model. The model shown in this guide is one of the first two models(cech 2001 or 2101). These models use different connectors and don't have ribbon cables for the disk drive at all.

Littleboy -

Echoing Sanjay Martha's comment exactly. There are 3 cables on the back of the blue ray and a surprise one on the underside which is very fiddly to get back in. Needs the hands of a child to reach in and seat it. Lol. I guess the reason the battery isn't in a neatly accessible slot on the outside case is so you can buy a new PlayStation instead. Shocking design to have to dismantle the whole thing almost entirely just to change a battery. So risky. The date appears to now save but I need to test the blue ray and the hard drive are still functioning. Different battery set up as well. Not a battery in an insulator with cables. Join a standard coin battery into the housing.

Tony Flitton -

Conclusione

Per rimontare il dispositivo, segui le istruzioni in ordine inverso.
