Sostituzione batteria Philips Sonicare DiamondClean HX9340

Scritto Da: oldturkey03
  • Commenti: 58
Sostituzione batteria Philips Sonicare DiamondClean HX9340

Difficoltà

Moderato

Passi

11

Tempo Necessario

30 minuti - 1 ora

Introduzione

La parte più difficile di questa procedura è la separazione della copertura esterna e del meccanismo interno. Le due alette che li tengono insieme sono difficili da trovare e separare. Richiedono anche molta forza per essere separate.

  1. tbKVFblIIHuKtwyA
    tbKVFblIIHuKtwyA
    PXCYuUPURgjVIZWG
    tjSwvGAeeKnrYKBW

    • Ecco il manico del Philips Sonicare HX9340 che non si carica più.

    • Questa è la copertura inferiore che devi rimuovere.

    • Avvolgi qualche strato di cartone attorno il manico per evitare di graffiarlo o romperlo.

    Die Endkappe lässt sich ohne Rohrzange relativ einfach mit dem Jimmy raushebeln.

    Martin Jaeger -

    Wenn die Bürste nicht mehr reagiert und auch nicht lädt, muss nicht zwingend der Akku mürbe sein. Bei meiner HX9370 war die Kopfdichtung undicht. Dadurch kam Wasser ins Innere. Nach trockenblasen mit Pressluft lädt und arbeitet die Zahnbürste wieder. Meine Herausforderung ist jetzt noch, eine passende Kopfdichtung zu bekommen.

    Martin Jaeger -

    Z.B. bei Amazon: https://www.amazon.de/BAAQII-Wasserdicht...

    VauWeh -

    You can remove the end cap by applying a bit of glue stick glue on the end cap and then gluing a separate glue stick to it. This way you have a pulling stick for the cap and only need to pull it out. By doing this you can easily remove the end cap without damage to the toothbrush.

    The only thing that might get damaged is the silver layer of paint on the cap.

    Tula -

    • PRIMA di provare con degli strumenti, è possibile rimuovere la copertura inferiore e le componenti interne senza. Così facendo non danneggerai il tuo spazzolino. In realtà potrebbe evitarti di rovinare lo spazzolino.

    • Spingi semplicemente la testa in metallo sopra lo spazzolino con forza verso il basso su una superfice dura e la copertura inferiore e le componenti interne si separeranno da sole.

    • Questo funziona sia sui modelli Sonicare nuovi che su quelli vecchi.

    • Se questo passaggio ha funzionato, semplicemente salta i passi da 3 a 6.

  3. qiVOMubadh22Rnd4
    qiVOMubadh22Rnd4
    VKWMihCPs3alxWs5
    nHXRutNvbTo4MtTQ

    • Usa un paio di pinze per stringere il manico. Il posto migliore dove iniziare è la parte più larga della base rettangolare a circa 1/2 cm dalla base stessa.

    • Continua a stringere attorno a tutta la base del manico spostandoti su ogni lato della base rettangolare.

    • Possono servire alcune rotazioni complete per riuscire ad aprire una fessura tra la base e il manico.

    Beim Öffnen muss man sehr vorsichtig vorgehen, da das Plastik sehr spröde ist und sehr schnell einreißt. Dann ist die Reparatur nämlich vorbei bevor sie begonnen hat.

    Michael S. -

  4. GrpUTDRr5pxKp6vr
    GrpUTDRr5pxKp6vr
    bYBj22Dp6KgD4iAs
    D5G1dw6l2mlangbx

    • Una volta aperta una fessura, infilaci un piccolo cacciavite piatto per allargarla.

    • Sfila la copertura inferiore dal manico, fino a vedere completamente la guarnizione.

    • Puoi rimuovere la copertura inferiore.

  5. srj5p2MsTmgsaUkW
    srj5p2MsTmgsaUkW
    rHEKxdi64AVnLsRj
    HNmMeiptxFiSeFnD

    • Ecco la copertura inferiore con le alette che la tengono saldamente in posizione quando infilata nel manico.

    • Ci sono due alette in plastica che tengono insieme il meccanismo interno e la copertura del manico. Queste sono difficili da vedere e da raggiungere.

    • Usa un cacciavite piatto piccolo e lungo (o uno strumento simile) per trovare queste alette. Questa è la parte più difficile della procedura.

  6. roUNUWrxdJKydPWp
    roUNUWrxdJKydPWp
    wuLZGHVWZG4PjkKb
    EFO6AJdUKYKwbWqX

    • Una volta trovate le alette, infila uno strumento simile al cacciavite del passaggio precedente in entrambi i lati per schiacciare la base e spingere la copertura del manico verso il basso. Per questo passaggio appoggia la parte superiore del manico su una superficie solida. Dovrai fare parecchia forza per completare questo passaggio.

    • Quando le alette si libereranno e la copertura del manico scivolerà in basso, il meccanismo interno scatterà verso l'alto fuori dal manico.

    • Rimuovi il meccanismo dal manico.

    I found I had to use two very thin (almost sharpened) flat screwdrivers to get between the taps and the outer handle. And then push down the outer handle. It's no use just pushing the inner base down.

    Geos Yannis -

    I found I had to use two very thin (almost sharpened) flat screwdrivers to get between the taps and the outer handle, to push them towards the center (i.e. each other), so that they unlock from their recess in the outer handle. And then push down the outer handle to slide out the inner workings. It's no use just pushing the inner base down.

    Geos Yannis -

    Nachdem die Rasten etwas gelockert wurden, kann man mit der Rohrzange auch in deren Höhe kräftig & beherzt drücken (auf die schmale Seite) und dann die Bürste auf kräftig auf den Tisch schlagen (weiter gedrückt hatten) … dann kommt die Mechanik auch heraus

    Jürgen Laskowski -

    Druck mit der Zange in Höhe der Rasten (ohne vorher irgendwas zu lockern) auf der schmalen Seite und gleichzeitig kräftiger Druck nach unten auf den Tisch hat bei mir auch gut funktioniert.

    Martin Niehoff -

    Pheww that was hard. I used the smallest flat head bike tool I had, with flashlight in month, pried open one of the tabs then slid a thin piece of plastic in between (plastic slip cut from plastic cup); then, I proceeded with foing the same on the other side. Success.

    Simon Li -

    That left tab looks kind of mangled. You can’t go straight down to remove the tabs you have to go behind them and twist the screwdrivers to disengage them. I used two small screwdrivers. Once you do that it actually requires very little force to push out of the body.

    Narek Bayanduryan -

    All I had to do was to push the vibrating metal piece in the brush end to hard surface and then hit the open rear end with the palm of the hand. The inside just popped out.

    Goy Alamn -

    Painting knives are great in maintaining the loosed position of the tab on one side without occupying too much space while working the other side

    hello -

    Two small screwdrivers did not work for me, perhaps because the tips were too thick; I think the tips went between the tab and the inside assembly, instead of between the tabs and the case. It's not easy to see, but the tabs engage with indented holes inside the case. I slipped two small pocket knife blades down inside, very flat against the inside of the case, and the tabs easily disengaged. The inside was very easy to push out by pressing on the tip - no hard surface or large amount of force was needed.

    Bruce Girton -

    If you use a similar strategy to removing the end caps, this is pretty easy. Apply pressure to the case walls that are perpendicular to the walls with the tabs and the case will deform enough to let you slide the internals out past the tabs. Worked for me anyway.

    Gabriel Vogel -

    My model is HX993B - which should be very similar. Two screwdrivers are tricky, they are too slippery. I finally managed to slide the inner part out with two toothpicks, they can stay in place and you have free hands..

    My problem was a loose head, because the screw holding it fall out. Just added some thread-lock, tighten it - fixed!

    An image where exactly the toothpick has to be....

    https://pasteboard.co/9ZAGoTUgIq8Y.jpg

    Jens Behrens -

  7. esxCGtgPyvEVjquY
    esxCGtgPyvEVjquY
    g5bL1bXZGcpALkRI
    rOw2MTKGgMVRQiCQ

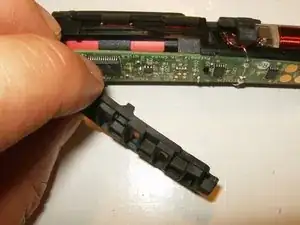

    • Rimuovi la protezione in gomma dal lato del circuito stampato (PCB)...

    • ... e la batteria.

    • Ecco la batteria da sostituire: una Sanyo modello 4235 010 13068.

  8. CWLHigIAVCAm2lgC
    CWLHigIAVCAm2lgC
    mjvOMAxN6AZIDHNQ
    NYZmBvPaXRnHADMq

    • Ci sono tre contatti che vanno dissaldati:

    • Il contatto positivo della batteria

    • Il contatto negativo della batteria

    • Un ponticello

    • Per il ponticello devi solamente rimuovere la saldatura tra i due contatti.

    • Applica del gel flux al ponticello. Aiutati con delle pinze per tenere ferma la PCB durante la saldatura. Puoi usare qualsiasi altro metodo per tenerla ferma.

    Why do we need to desolder the jumper?

    Ben Williams -

  9. J6c2quHWkaTAnUoN
    J6c2quHWkaTAnUoN
    fP5DZ5rgDoUV2GiG
    IRldArJCSa1tcEaw

    • Usa un saldatore per rimuovere il ponticello tra i due contatti.

    • Usa del gel flux e una treccia dissaldante per rimuovere la saldatura dal contatto negativo della batteria.

    • Ponticello di saldatura rimosso.

    • Contatto negativo della batteria dissaldato dalla PCB.

    hallo, ich verstehe nicht, warum ich zuerst das Lötzinn zwischen den beiden Lötpunkten entfernen, und später - nach dem Einsetzen des neuen Akkus - die beiden Lötpunkte wieder verbinden muss. Kann ich den Akku nicht austauschen, ohne die Lötbrücke zu trennen?

    Jamanote -

    Gleiche Frage, leider keine Antwort.

    Jan Holler -

    @janholler Yes you can for as long as the battery is not connected to that solder bridge. I can’t remember exactly why I added this to the guide but remember there was a reason for it. Possibly to disconnect the circuitry to prevent a short circuit while replacing the battery.

    oldturkey03 -

    Durch das Auftrennen der Lötbrucke wird der Akku abgetrennt, die Schaltung also spannungsfrei. Dadurch werden Kurzschlüsse verhindert. Also eine reine Sicherheitsmaßnahme, wer will kann das auch überspringen, riskiert halt einen Schaden.

    VauWeh -

    @oldturkey03 That was "Just in time". ;-)

    VauWeh -

    @vauweh I knew there was a good reason for that :-) Thanks brother!

    oldturkey03 -

    Es handelt sich um einen Li-Ion Akku. Nicht umsonst steht auf diesem "Warning: Risk of Explosion".

    Die Brücke sollte man also entfernen und dann mit dem Entlöten des Minus-Pols fortfahren um unter allen Umständen einen Kurzschluss zu vermeiden.

    Michael S. -

  10. NvH2Cy2YIVtEaphh
    NvH2Cy2YIVtEaphh
    KDa4hkAdYneFWldx
    sAwogaXvdRoVDZKU

    • Applica del gel flux al contatto positivo della batteria sulla PCB (si trova accanto ad un fusibile SMD F1).

    • Usa la treccia dissaldante per rimuovere il contatto positivo dalla PCB.

    • Fai una forza leggera con un piccolo strumento per rimuovere la batteria.

    • La batteria dovrebbe venire via facilmente. Se fa resistenza, ricontrolla i contatti sulla PCB per assicurarti che non siano collegati/impigliati da qualche parte. Può essere necessario un altro passaggio con il saldatore per completare la procedura.

  11. OUvmlwRlEqlOhFTW
    OUvmlwRlEqlOhFTW
    3RKsTIvLyAB4L3WT
    f3KbroRQUZMK1CUv

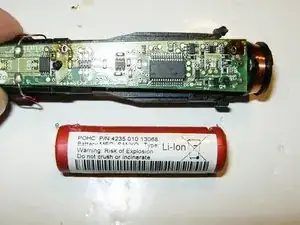

    • Batteria rimossa dalla PCD e ora i contatti sulla PCB sono chiaramente visibili.

    • In un tentativo di determinare il tipo di batteria ho rimosso la copertura in plastica rossa. La batteria è agli ioni di litio da 3,7 V che misura circa 14 x 49 mm. Sono circa le dimensioni di una batteria AA.

    • La scanalatura sulla batteria è sempre dalla parte del polo positivo.

    The battery is a “14500” Li ion battery. You can find them easily. You can buy them with tabs, or without tabs.

    Geobio Boo -

    I removed the inner mechanics because there was an ugly sound when operating the unit. The pin on which the brush is fixed was rather loose. It turned out that a small screw on top of the unit was loose. Easy fix! Thank you for your excellent description! (Unfortunately I damaged the white sealing ring in the top aperture in the process of reassembling. The ring is VERY subtle, so take care.)

    Peter-Christian -

Conclusione

Per rimontare il dispositivo, segui le istruzioni in ordine inverso.

Autore

oldturkey03

Membro da: 29/09/10

777401 Reputazione

31 commenti

This has helped me a lot and i used it as a base for my fixit tutorial. Thank you!

moritz -

Hallo moritz, bitte tausche in deiner Anleitung die Sprache in Englisch da jetzt die Deutsche Anleitung in Englisch geschrieben ist.

Claes -

Nach dem wechsel der Batterie leuchten alle Lampen, aber die Bürste gibt keine Vibrationen ab. Wo ist der fehler? Hatte jemand dieses Problem?

After replacement of the akku all lamps are flashing but there is no function of the vibration-module. anyone knows this problem?

matze -

Das wird wahrscheinlich daran liegen, dass zwischen der Antriebseinheit und der BürstenWelle kein Platz ist. Sprich der Magnet liegt auf der Antriebseinheit an. Um das Problem zu lösen musst du zwei feststellschrauben lösen, den Spalt herstellen und dann die feststellschrauben wieder anziehen. Dann sollte die BürstenAufnahme wieder schwingen.

Kilian Müller -

Thanks for information. This guide leads to success. *Thumbs up* My Sonicare is back at work now. :-)

Stephan Müller -

Really useful.

Geordi La Forge -

It’s very helpful, I like it very much!!!

I just curious why the jumper have to be desoldered, is this jumper will limit the charge counter?

Thacker -

Great guide, just needed to find out how to open the unit. Found that my problem was a loose screw failing to hold the metal mounting post for the brush head. Had contacted Philips who declined to help with repair but offered a 20% discount code for me to buy from their site. On there site I found my 2.5yr old Philips Sonicare DiamondClean Electric Toothbrush selling for £299.00 before discount and postage! Thanks Philips for trying to get a good portion of my pension this month. Thanks to ifixit and the writer of this guide for helping me not leave that much of my pension with Philips.Great to be able to take control of the situation and repair my own equipment!!!!

Jim dunne -

@ifixitjdunne1 Hey Jim, you are welcome. Glad we could help you save some money. :-)

oldturkey03 -

You have to resolder the jumper when done else it doesn’t work, I presume its a safety thing because you are working with a live battery and a metal tipped soldering iron. I would recommend looking at the other guide for magnet adjustment on here and carrying that out when the battery is removed, I expect most will need this done after some use the coil and magnet move closer together, toothbrush gets noisy and weaker. for reference my battery was a sony one not sanyo. the part number 4235 010 13068. They are 14500 battery with tabs for PCB mount. the specific ones sold on ebay are expensive and possibly fake. I just got a pack of 4 soshine 14500 900mAh and soldered wires on to attach to the pcb

Scott Pattinson -

you have to resolder the jumper, it is required. this must be a saftey thing to isolate battery from pcb while you work on it. recommend that magnet adjustment is done while you have it apart. I used soshine 14500 900mAh battery and soldered some wires to it for pcb attach. I didn’t truest the probably fake specific batteries on ebay that are being sold at inflated prices. The battery I removed was a sony one not sanyo as being sold on ebay. p/n 4235 010 13068

Scott Pattinson -

The “jumper” solder points need to be bridged again for it to work

my toothbrush had a sony battery in it and was about 5 years old when I replaced it. Some of the replacements available on popular sites are not sony. I opted to buy a good brand 14500 battery without the tabs and just solder my own wires to it.

While you have it apart I recommend that the other ifixit guide is followed to get the correct distance between the coil and magnet for best performance

Scott Pattinson -

I attempted this today but my toothbrush still won’t turn on. The new battery tests as working with a multimeter, and the old one is definitely dead. Before I start poking for other failure points, are there other test points I can use to ensure my soldering job is working?

Also, why unsolder the jumper if it just needs to be bridged again?

rsbrogna -

rsbrogna I believe the jumper had to do with the counter plus it was easier for me to do it that way. The only point I can think of where to test is at the fuse on the PCB.

oldturkey03 -

I tried to re-aligned the magnetic motor and when I reassembled the toothbrush there was no power at all. I think it’s because somehow the fuse on the PCB has gone, as if I make a connection across the fuse on the PCB power can return. Is there any way of replacing the fuse so I can get it working again? Thanks

Dan Solomon -

@solly90

Fuse= (watts/volts)X1.25

Watt = Amps x Volt

Watt = .9 X3.7

Watt = 3.3

Fuse = (3.3/3.7)x1.25

Fuse = 1.125

~1.5 Amp fuse will work. Measure the width and length of your fuse to determine the package size and check on places like Mouser or Digikey for a replacement

oldturkey03 -

Has anyone found a source for the small rubber o-ring that is on the outside under the plastic toothbrush for a model HX9340? Mine disentigrated and I do not know size or type.

gww -

Who’d’ve thunk a toothbrush had so much in it. Is that a microprocessor and a serial comms port I see??

Got mine apart in no time at all. Checked the battery voltage (3.8V so that’s OK). The mode LEDs all light up, but the on switch doesn’t turn it on. It was quite wet inside though, probably damaged some of the delicate electronic wizardry. Not a great O-ring seal.

Thanks to ifixit for prompting me and helping me to have a go though.

Nick Arran -

Hi. Just removed mine. Some comments:

Step 3: No need to use a screwdriver to pry out the end cap. Slowly pressuing the handle, while rotating around, it will work itself out. This is better to avoid damaging the end cap and o-ring (as seen in the pics step 5).

Step 6: I just tapped the bottom on the table and it fell down. No need to press inside sides and push end.

Rgds

Happy Guy -

I did replace the battery, placed in the charger and It started blinking green light. In the morning toothbrush was charged but after assembling back I pressed a button and It worked for 3 seconds two times and now it’s again not responding. What may be the reason?!

Sanyo battery replaced with Sony as given in electronic store as a spare battery for HX9340.

Dariusz Sierzputowski -

Vielen Dank für die tolle Anleitung. Meine Zahnbürste funktioniert wieder tadellos.

tanjataller -

Ich konnte den Akku meine Sonicare dank der Anleitung erfolgreich wechseln. Vielen Dank!

PS: Mich würde auch interessieren war um der Jumper entlötet und dann neu verlötet werden muss…

Steffen Engel -

Damit wird der Akku abgeklemmt. Ist eine leicht durchzuführende Maßnahme.

Ginge vielleicht auch ohne, aber sicher ist sicher!

VauWeh -

Hallo,

habe meine Zahnbürste erfolgreich zerlegt, den Akku nachgemessen - ist voll mit 3,8 Volt. Sobald ich den Anschalter betätige, zuckt der Magnet nur mal ganz kurz und man sieht ein sehr kurzes Aufflackern einer LED (auf der Platine neben CR2). Die Zahnbürste verweigert aber nach wie vor den Betrieb. Was kann das sein?

Stefan

Stefan Köhl -

Bei mir das gleiche Problem. Hab auch schon die andere Anleitung bezüglich Motor schwächelt probiert… Kein Erfolg.

Wahrscheinlich ist der interne Zähler von Philips abgelaufen, wie oft man Zahnbürste benutzen darf bis man eine neue kaufen muss :(

Chris O -

Nach dem Akkuwechsel funktionierte nichts mehr.

Die Sicherung F1 war durch.

Wenn ich sie überbrücke, ist alles O.K.

Andreas Schulz -

EN: I have changed the battery and the toothbrush seems to charge (green charging light is blinking), but nothing happes if I press the on button. Its does not even move a little bit and no lights are blinking. What could it be?

DE: Ich habe den Akku getauscht und es sieht so aus als würde er laden (also zumindest blinkt die lade LED), aber wenn ich den Anschalter drücke tut sich gar nichts. Es leuchtet auch nichts und auch kein zucken. An was könnte das liegen?

krafti -

Danke für diesen “Einstieg”,

Das Innenteil habe ich, nach Entfernung des Bodenstopfens, werkzeuglos durch einfaches “Aufstoßen” auf den Handballen herausbekommen.

Da unzählige Standardakkus als “Ersatztypen” für diesen Akku im Internet angeboten werden, sollte man darauf achten, einen bedrahteten zu erwerben, anstatt eines mit Laschen anzuschließenden: Die Löcher für den Anschluss liegen nicht zentrisch, sondern tangential - man muss also etwas biegen.

Zudem musste ich, um mit den modifizierten Laschen “zielen” zu können, die angeschmolzenen zwei Kunststoff-Pinne mit einen feinen Seitenschneiter (ohne Wate) von ihrer Wulst befreien, um den Akku-Kunststoffkäfig etwas von der Platine abziehen zu können.

All das geht viel entspannter, wenn man tatsächlich einen Akku mit Drahtanschluss verwendet, die Drähte passen in die Lötlöcher und sind lang und stabil genug um leicht “eingefädelt” zu werden.

Jürgen Kickert -

Sehr schöne Erläuterung. Wird mir eine große Hilfe sein, wenn die Batterie demnächst endgültig den Geist aufgeben sollte.

Schorsch Salomon -

This worked for me, brilliant, thanks.

Jezzab -

Worked like a charm! Thanks for the great guide!

After reassembly, I was at first disappointed that the vibration felt a bit weak. But to solve it, I didn’t need to follow the other guide for fixing weak vibration. I remembered the easy-start feature for getting used to the toothbrush. After replacing the battery, it was enabled again!

Place the toothbrush in the charger, then press and hold the power button for about 2 seconds.

1 beep indicates that you’ve now turned off easy-start, 2 beeps indicates that you’ve turned it back on.

After turning off easy-start, vibration intensity was as expected again.

Marcel Wirth -
