Introduzione
La batteria non dura molto? Cambiala.
Strumenti
Ricambi
-
-
Inserisci uno strumento di apertura nella giunzione tra la plastica bianca e la parte metallica dell’iPod. È comodo tenere l'iPod in alto e in basso come mostrato e spremere per aiutare a far uscire il bordo. Una volta inserito lo strumento di apertura, fallo scorrere lungo la giuntura per liberare le cinque alette che tengono insieme l'iPod.
-
-
-
Continua a far scorrere lo strumento di apertura nel bordo fin quando non liberi le cinque alette.
-
-
-
Lavora intorno all'angolo dell'iPod e rilascia le due linguette che tengono insieme l'iPod vicino al connettore dock.
-
-
-
Libera le cinque alette che tengono insieme l'iPod dall'altro lato. Potresti essere in grado di liberare le linguette muovendo delicatamente il pannello frontale dell'iPod.
-
Solleva il pannello posteriore dall'iPod.
-
-
-
Solleva la batteria dall'adesivo che la tiene incollata all'iPod.
-
Posa la batteria accanto all'iPod (è ancora collegata alla scheda logica).
-
-
-

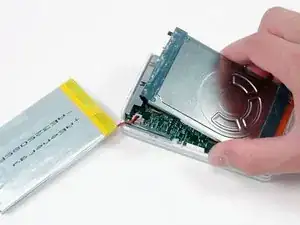

Solleva l'estremità del disco rigido vicino alla porta Firewire per consentire un facile accesso al connettore della batteria.
-
-
-

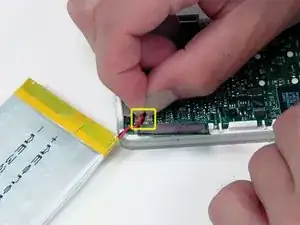

Scollega con attenzione il connettore bianco della batteria dalla scheda logica. Assicurati di tirare solo il connettore stesso e non i cavi.
-
Per riassemblare il dispositivo, segui queste istruzioni in ordine inverso.
2 commenti
There are so many iPods, it's confusing as to what battery to buy. I have 3 of these old bricks and sure it's battery time. Can you please provide a link to the specific battery for this (above) iPod?
The iPod that I,m trying to resssurect has a connection that has 50t pin connection. I ordered the battery shown in the picture and now have to exchange it
Boy, are these cases hard to open! I got nowhere with the spudger, but I did have success using duct tape. This is worth trying as it reduces the likelihood of scratching the case. Make a tab by sticking duct tape to the metal case starting on the side down by the scrolll wheel and ending up where the metal case ends on the firewire side. Fold excess duct tape back on itself so that it is 2x thick anywhere it isn’t stuck to the iPod. This is where you are going to grab it. Rub the duct tape with a spudger or a fingernail where it touches the iPod to make it stick better. Make a similar tab on the other side. Now grab the iPod in your right hand with your thumb at the 1/8” audio connector, squeeze gently, and pull on one of the duct tape tabs. (I stared with the one of the lock button side, but I don’t think it matters.) It is smooth sailing once the case starts to open up. Clean off any duct tape residue with alcohol wipes before re-assembly.
