Introduzione
Questa guida ti mostrerà come sostituire il cavo Thunderbolt e MagSafe del tuo display Apple Thunderbolt.
Strumenti
Ricambi
-
-
Appoggia il display con lo schermo rivolto verso l'alto.
-

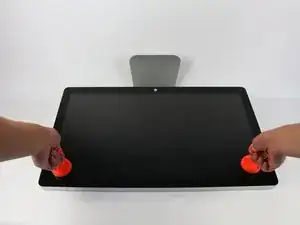

Fai aderire 2 ventose, una per angolo del bordo superiore, e assicurati che abbiano una presa salda.
-

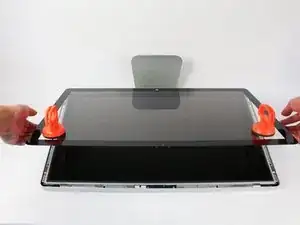

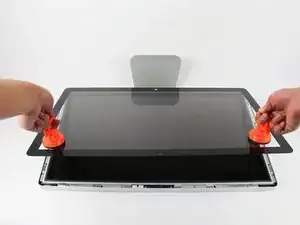

Il vetro è collegato al resto del display con dei piccoli magneti. Sollevalo lentamente e il vetro dovrebbe staccarsi da solo.
-
-
-

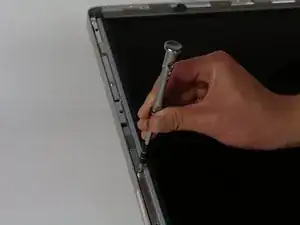

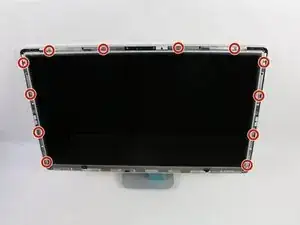

Svita le 12 viti lungo i bordi laterali e superiore del pannello LCD con un cacciavite TR 10.
-
-
-

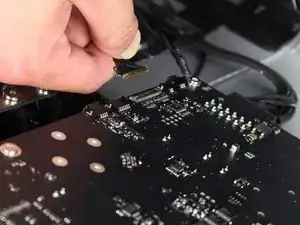

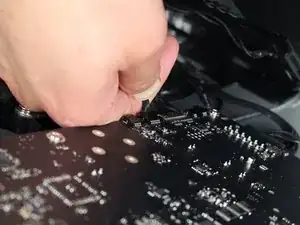

Per il primo cavo (quello più lontano dal cavo tenuto fermo da una vite) tira lentamente il connettore per scollegarlo.
-
-
-
Per il prossimo cavo, che è accanto al precedente, troverai una striscia di nastro nero attaccata ad una staffa in metallo sul connettore.
-
Ruota la staffa per sbloccare il connettore, usando il nastro come manico.
-
Quindi tira lentamente il connettore per scollegarlo dalla sua presa sulla scheda.
-
-
-

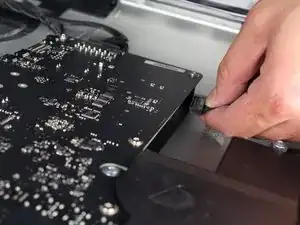

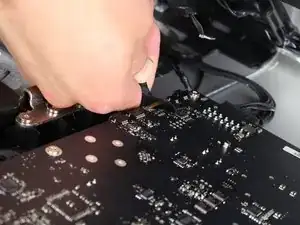

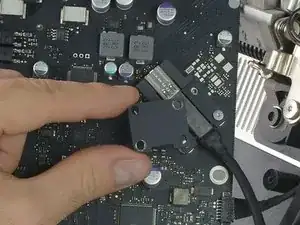

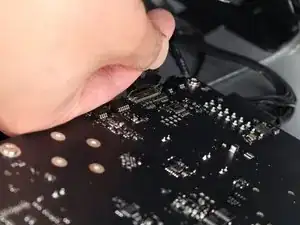

Per il cavo dall'altro lato della scheda, afferra il connettore da sotto e scollegalo attentamente dalla sua presa.
-
-
-
Per l'ultimo cavo che collega il pannello LCD, usa un cacciavite TR 10 per svitare la vite che lo tiene fermo.
-
-
-

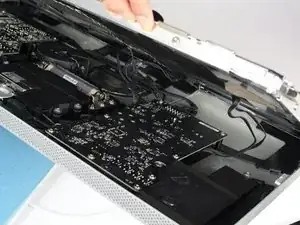

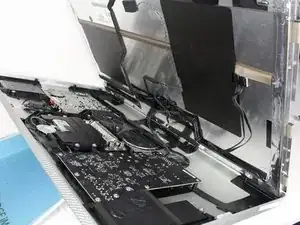

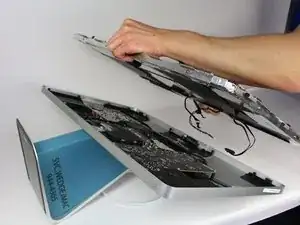

Il pannello LCD è ora completamente sconnesso dalla scocca e può essere riparato o sostituito.
-
-
-
Dovresti vedere il filtro EMI al centro del dispositivo (anche se tenuto fermo da diverse componenti.)
-
Segui i cavi che partono da sotto l'alimentatore a sinistra.
-

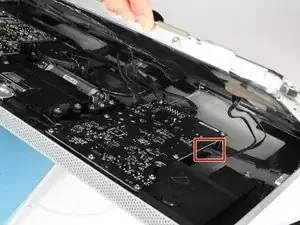

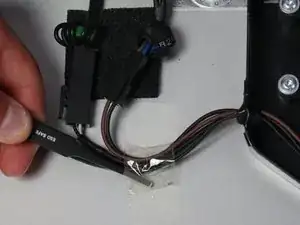

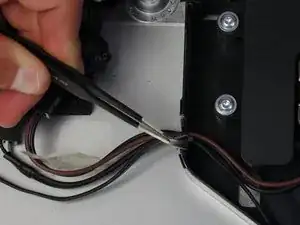

Usa un paio di pinzette per rimuovere il pezzo di nastro adesivo che fissa i cavi alla scocca.
-

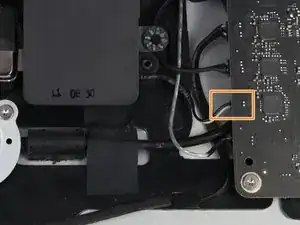

Solo un connettore deve essere rimosso (anche se ce ne sono 2, uno accanto all'altro!).
-

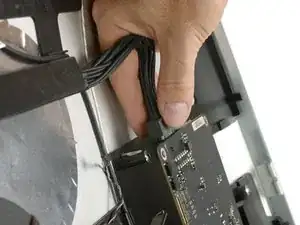

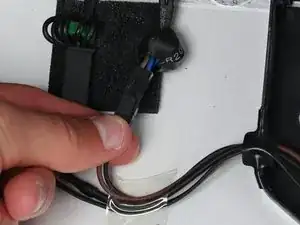

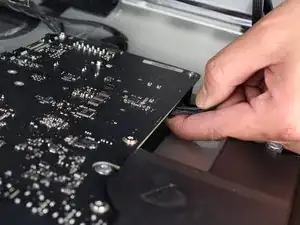

Prendi il connettore da sotto e tiralo attentamente fuori dalla sua presa.
-
-
-

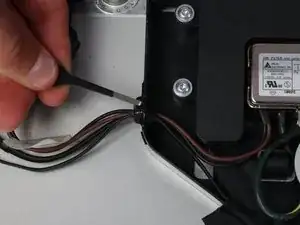

Quindi rimuovi il pezzo di nastro isolante che tiene fermi i cavi nella copertura che li collega all'alimentatore.
-
-
-

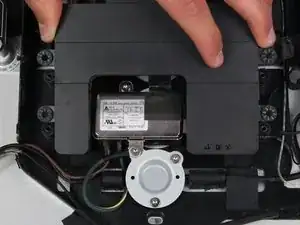

Le componenti dello speaker (la scatola nera) attorno all'ingresso dell'alimentazione vanno rimosse.
-

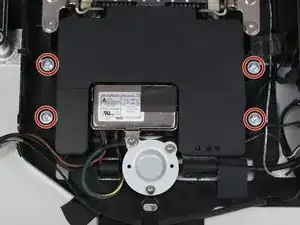

Usa un cacciavite TR 10 per svitare 4 viti.
-
Scollega il cavo dello speaker sul retro della scheda tirando attentamente l'estremità in plastica del cavo.
-
Rimuovi lo speaker.
-
-
-
Ora che lo speaker centrale è stato rimosso, il filtro EMI è facilmente accessibile.
-

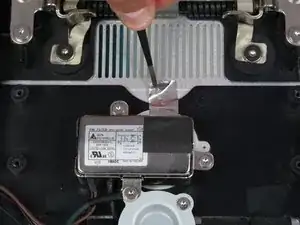

Usa un paio di pinzette per rimuovere il nastro argentato sopra il filtro.
-
-
-

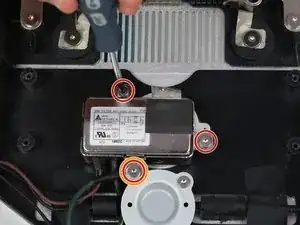

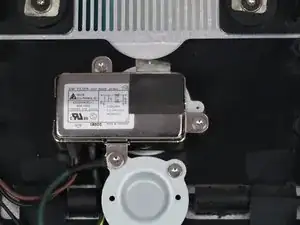

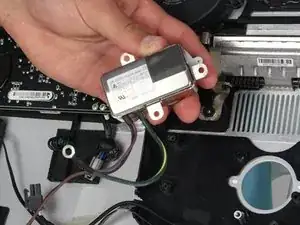

Il filtro EMI è tenuto fermo da 3 viti. Usa il cacciavite T10 per svitarle.
-
La vite che tiene fermi sia il filtro che un cavo ha delle dimensioni diverse e non va confusa con le altre 2.
-

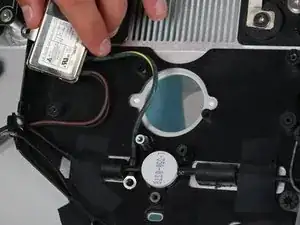

Il cavo verde-giallo che era collegato dalla vite è nascosto dietro un'altra componente. Per rimuoverlo schiaccialo dietro il cavo nero e il filtro.
-
-
-

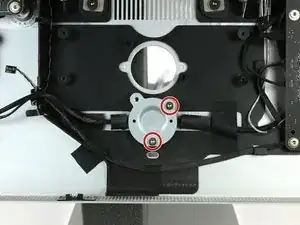

Svita le 2 viti T10 sulla placca in metallo che tiene fermi i cavi.
-
Rimuovi la placca in metallo.
-
-
-

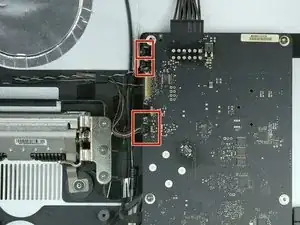

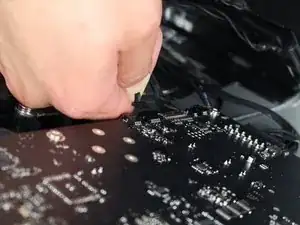

Rimuovi attentamente i 3 connettori dei cavi dalla scheda sfilandoli dalla presa mentre li tieni dall'estremità in plastica.
-
Cavo di controllo della ventola
-
Cavo del sensore della temperatura
-
Cavo di alimentazione della ventola
-
-
-

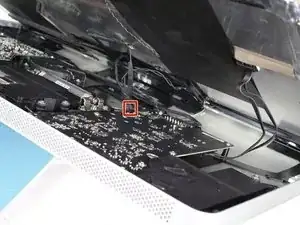

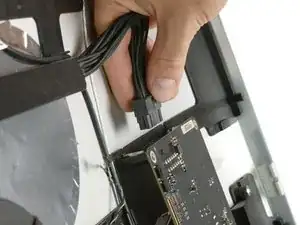

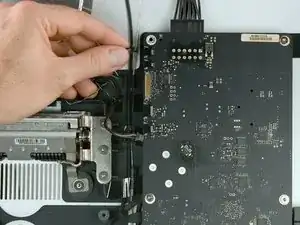

Ora puoi scollegare il cavo sul retro della scheda logica che la collega alla scheda di alimentazione.
-
-
-

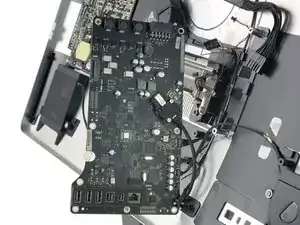

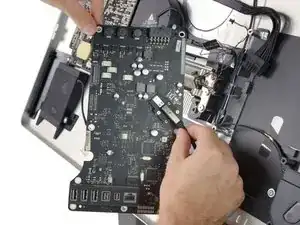

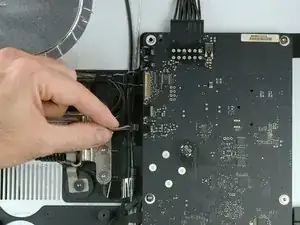

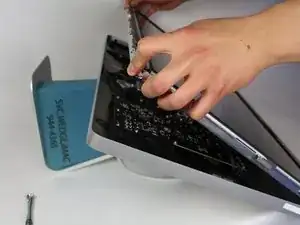

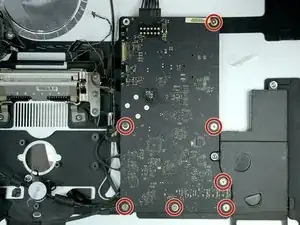

Gira attentamente la scheda sulla sinistra, sfruttando i cavi rimanenti come cerniera, per accedere alla presa del display.
-

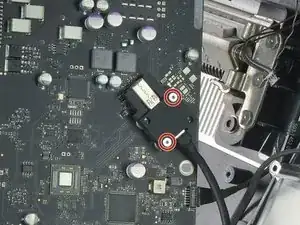

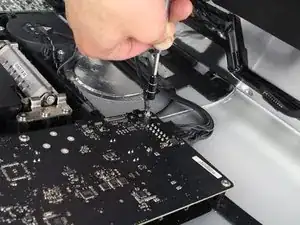

Svita le 2 viti Torx T6 dalla placca in metallo che tiene fermo il connettore del cavo.
-
Rimuovi la placca in metallo.
-
-
-
Scollega il cavo Thunderbolt dalla scheda.
-

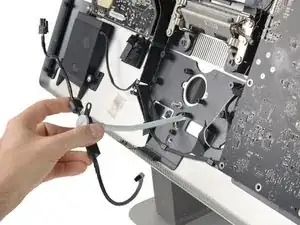

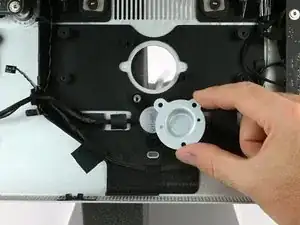

Fai scorrere il cavo Thunderbolt e MagSafe attraverso l'apposita apertura nella scocca posteriore.
-
Per rimontare il dispositivo, segui le istruzioni in ordine inverso.
