Sostituzione cavo e connettore Magsafe a 5 pin alimentatore MacBook

Scritto Da: Pierre Merineau
  • Commenti: 80
Sostituzione cavo e connettore Magsafe a 5 pin alimentatore MacBook

Difficoltà

Difficile

Passi

15

Tempo Necessario

15 - 30 minuti

Introduzione

Se il tuo MacBook non si carica più o non vedi le luci arancione e verde quando è in ricarica, controlla il cavo di ricarica in cerca di danni.

In questa guida sostituiremo il cavo che connette il caricatore al Mac Book.

In alternativa puoi seguire questa guida per riparare il cavo anziché sostituirlo.

  1. w2KWLEVUBPlKtILl

    • Strumenti richiesti:

    • Un saldatore decente

    • Un tagliafili

    • Una pompa dissaldante

    • Uno spudger molto resistente

    • Un paio di pinze divaricatrici. In realtà qualsiasi pinza a becco lungo può andare bene, ma se ne hai un paio specifiche è perfetto :-)

    • Colla permanente (cianoacrilica)

    • Uno o due morsetti

  2. cQQYWRbV3NDYiaEx
    cQQYWRbV3NDYiaEx
    Wn5ERN4WMjCDECXY
    5DOOH5pskEuoBNHo

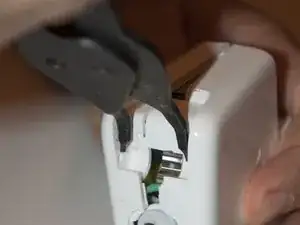

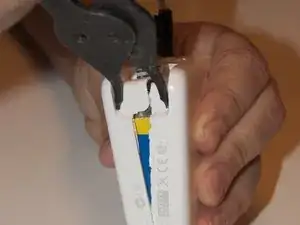

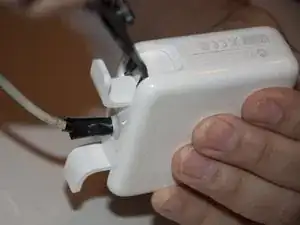

    • Apri le due alette per avvolgere il cavo.

    • Scalda la scocca in plastica del caricatore con un asciugacapelli, e/o scorri una lama di rasoio lungo la giunzione tra le due metà della scocca, per ammorbidire l'adesivo. Questo semplificherà l'apertura del caricatore.

    • Inserisci le tue pinze e aprile lentamente (assicurati che restino negli angoli, o potresti farti del male o danneggiare la scocca).

    • La prima aletta dovrebbe cadere fuori dalla scocca.

    • Fai lo stesso sotto l'altra aletta.

    • Procedi lentamente!

    There is an easier way to open the case. Get a number 10 spanner and use it to prise off the case below the cable tidy clips. Wedge the outer 'fork' into the near corner of the space below the cable tidy clips and push the spanner away from you. Pop! Off it comes. Takes 2 seconds with very little physical effort. It is similar to the pliers approach but easier to do.

    Stephen Ashworth -

    Steven, could you elaborate on your suggestion? I think you’re suggesting we use a spanner bit, which looks like a a flathead screwdriver with a notch in the center of its straight edge. But spanner also means wrench in British English, so clarification would be helpful.

    Where is the near corner of th space below the clips. Could that also be described as “one of the side seams, right where it terminates and the depression that accommodates a tidy hook that’s not in use not in use begins”?

    El Crashitan -

    Dear Pierre:

    I’m not able to envision a successful implementation of this step. I don’t have a bench vise handy so I can’t just mess around until it works. If the needle-nose pliers is just sitting on the vise, and I’m holding the adaptor, what forces the pliers to pry the case open instead of clattering to the bench? Got photos?

    Carrie aka El Crashitan

    El Crashitan -

    What works for me is to put the power brick into a bench vise with the top of the vise jaws aligned with the power brick’s mid-case seam. Use a shop rag to prevent the case plastic from being scarred by the vise jaws. Slowly tighten the vise until you hear the popping sound of the plastic joint glue breaking. Repeat as necessary, with the power brick in different orientations within the vise. Eventually the seam will be broken and you can remove the case halves.

    gordonhamachi -

    Stephen’s visionary suggestion to use 10 mm open end wrench (also called 10 mm ‘combination ‘ wrench…) proved an EASY way to pry open the casing !

    Hold the case w/ left hand ; with ‘cord-winding flaps’ facing up .

    Flip open the ‘cord-winding flap’ nearest your left hand thumb which is gripping the case.

    Insert open end of your handy 10 mm wrench ( I tried 9, 11, & 12 mm wrench to compare …the 10mm is best ! ) into the newly exposed space under the just opened ‘cord-winding flap’. Pinning the ‘pointed end ‘ of wrench into corner under the flap which is about to become a PIVOT point… gently rotate the wrench about 30 degrees away from you , UNTIL the outside rounded shoulder of the wrench comes into contact w/ the OTHER inside edge of the case !

    While keeping the wrench pinned firmly against its ‘pivoting’ corner… CONTINUE trying to slowly rotate the wrench away from you… You are now PRYING the case open !

    Saved me on this one… Thanks,Stephen !- JJoslin ( Detroit, Mich.-south of Canadian borderline)

    John Joslin -

    Put adaptor in vice as described above & gently squeeze. You should hear at least one click/snap as I did to crack to glue seal. Don’t squeeze too tight or you’ll crack the body. Use a strongish knife blade, I used a cheap swiss army knife blade along the joins on all four sides. Don’t give up if 3 sides don’t come loose. Mine started to come loose on the cord side as it has less glue/surface area to hold it together. Start at the corners, there the easiest & tapped firmly with a hammer. It will start to come apart. Then use a thicker knife blade or similar & repeat. Pry open with small screwdriver slots & even the shaft of smaller drivers. Thanks to the above ideas. The more the merrier.

    ignas -

    I tried the open-end wrench method with great success, once I figured out what was going on. regarding 10mm vs other sizes, I think it depends on the shape of your particular wrench, and also which wattage MagSafe you are trying to open, as each one is a different size. I used a 14mm on two MagSafe 2 60w chargers, and it opened both like magic.

    Fritz Toch -

    Thanks @jajoslin, your suggestion works perfectly!

    Sebastian -

    I had to use a cutter. Not so clean cut work but much more easy.

    Esteban Obiglio -

    With a heat gun and a lot of patience, it’s possible to get the case apart without actually breaking any of the plastic. This makes sealing it up again much easier and cleaner. Also, something that I haven’t seen mentioned, and is hard to see in photos because the plastic is usually broken, is that the seam between the halves is a tongue-in-groove seam. This is helpful to know when you’re trying to pry the halves apart, so that you know where you can apply leverage.

    Martin Cooper -

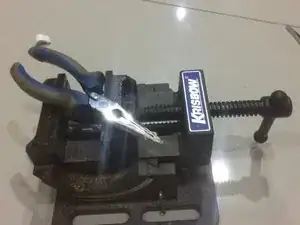

  3. WB6hRw1j1qMGPcif

    • Se il tuo caricatore non è mai stato aperto prima, sarà difficile da aprire. Prova ad usare una morsa da tavolo per aumentare la forza applicata alle pinze.

    • Fissa il manico delle pinze alla morsa, inseriscilo nella scocca del caricatore, quindi muovi la morsa lentamente.

    • La scocca si aprirà e potrai continuare la procedura.

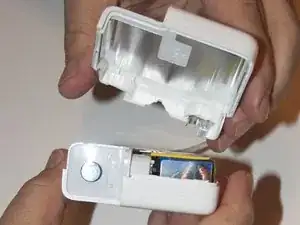

  4. iYSaL2tLXoow1hFE
    iYSaL2tLXoow1hFE
    sLW21VgpdhZBmRkS

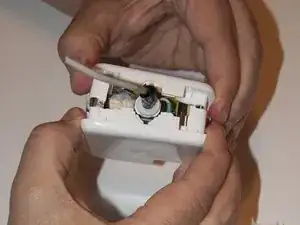

    • Finisci di aprire il caricatore con le mani. Dovrai usare abbastanza forza.

    • A un certo punto la scocca finirà di aprirsi scattando (i bordi sono incollati lungo tutto il bordo e anche la copertura in metallo interna può essere incollata alla scocca con una schiuma adesiva).

    • Anche i pezzi delle alette agli angoli e le loro molle potrebbero staccarsi: segnati come sono disposti con le molle rivolte verso il cavo, per sistemarli successivamente.

  5. ALTZxfSK2LCOWZWE

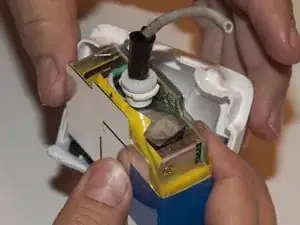

    • Rimuovi con cautela l'interno dalla scocca.

    • Stai attento a non toccare i contatti dei condensatori: potresti ricevere una forte scossa.

    • Se l'interno resta attaccato ad una delle due metà della scocca, probabilmente è (a) perché è incollato lungo il bordo del connettore A/C, o (b) a causa della schiuma adesiva tra la parte interna e la parte piatta della scocca.

    • Usa uno spudger robusto o altri strumenti per fare leva lungo il bordo del connettore A/C e separarlo dalla scocca,e fai leva con attenzione tra la scocca e l'interno per separare la schiuma adesiva.

    • Usa solo strumenti con sicurezza ESD (anti elettricità elettrostatica). Non usare strumenti in metallo o cacciaviti.

    • Potresti rompere la copertura in metallo nella procedura: non è un problema, ma cerca di contenere i danni!

    Sorry for my English, but I wanted to tell you that for security, before repairing the charger, it is recommended to download the power source, for this I share a video where it shows how you can download the capacitors with a simple screwdriver.

    https://youtu.be/G1HYBqeWSHI?t=310

    sosapple -

    Do you mean discharging the capacitors?

    It’s better to use probes connected to a power resistor than to use a screwdriver. Bumbling around with a screwdriver, you risk shorting the capacitor to something else, causing damage.

    tooki -

    Definitely avoid using a screwdriver. Use the right tool or follow this guide if you need to make one.

    Jeff Suovanen -

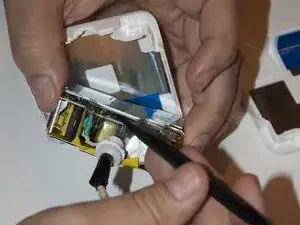

  6. tvuryRNbaYhpeeLp

    • Per avere più spazio per lavorare, di solito inserisco uno spudger più grande.

    On the 60W adaptor you might find a small metal tab with 2 tiny rivets holding the metal plate in place. This can be pried off gently and then the metal plate can be pulled out a little to make more space to work in.

    PiersC -

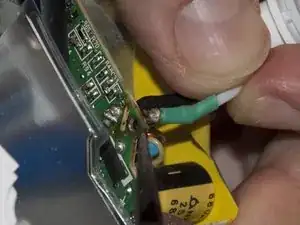

  7. QSfpXdvOxKPwJeMk
    QSfpXdvOxKPwJeMk
    faiIGABALlT4x2XA
    Y3TD4NAeDwMYNAbi

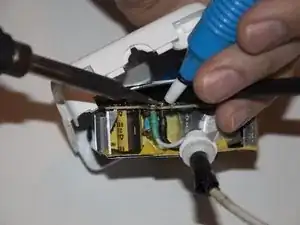

    • Assicurati di segnare la posizione del terminale positivo e negativo.

    • Inizia a rimuovere la saldatura con la pompa.

    • Stacca i cavi. Potrebbe richedere della forza, quindi stai attento a non danneggiare la scheda.

    On the smaller 45W adapters, it is virtually impossible to desolder the white cable because the solder joint is hidden behind a capacitor.

    Tip: Pull with some force on the white cable with the pliers, it should come out clean without causing damage. It is not soldered directly onto the board, there is a receptacle in between which you can pull the cable out of. You can use this receptacle to solder or clamp in the new cable, too.

    Matthias Huber -

    (on the 45W) Be careful not to pull too hard on the white cable/clamp - I managed to rip a piece out of the PCB. Fortunately, I had another power adapter (with the same cable issue) lying around.

    One point that is missing from this guide:

    Partially remove the copper shielding to gain access to the white cable.

    Do it on the side that does not have the capacitor lead soldered to it.

    Simply peel off the adhesive tape, remove the tab out of the slot and peel up the shielding (it will look like a tent) to gain some space to access the 'white' solder spot. Be careful not to put too much strain onto the electrolytic capacitor's lead.

    redwoood -

    From the pictures, it looks like too much heat was applied when desoldering, so the eyelets/vias, which connect the wires to the conductive traces on the PCB, got pulled off the PCB along with the wires. This is something to be careful with, because if it happens you can end up with a useless/irreparable power adapter. Or at least the effort and cost involved in fixing it might be something not worth dealing with. It might be simpler/safer to clip the old wires and then solder them together with the wires of the new cord (like in this repair guide: How to Repair an Apple AC Adapter Broken Cable).

    blerkh -

    On the 45W, it is indeed impossible to remove it. I had to remove the metal cover and it was not that difficult, but one should be careful because this metal cover is soldered to one of the condensers. It should be desoldered before cover removal and soldered back upon assembling. Yet, to be honest, replacing this Magsafe cable was one of the most time consuming replacements I have ever done. I am not a pro, but complete disassembling of iphone, replacing the glued batteries, etc. didn’t take that much time as this 45W magsafe cable.

    kostia -

    On the 85W charger, I also couldn’t reach the cables' soldering points without desoldering the shell and other components. So I instead opted to cut the original black and white wires, strip some of the isolation and solder the wires of the new cable directly to the old one. It was kind of hard to get a good contact, but it works. Also, you need to be very careful so the open parts of the wire don't touch any other components or each other.

    dasisdormax -

    The eBay replacement cord wire ends were too short to reach the solder points in a particular 85W supply. [Another genuine Apple 85W has solder points much closer to the strain relief.]

    Couldn’t lengthen the wire ends b/c the strain relief was molded to the cord. So, clipped the original wires inside the case and soldered to the replacement cable wires, insulated with heat shrink.

    Torn, though… you’d like the wires to be plenty long for soldering/heat shrink, but everything has to fit back inside the case.

    prreitz -

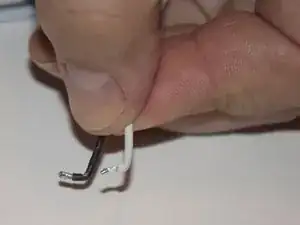

  8. 1OPjklvyeSqBDnBB
    1OPjklvyeSqBDnBB
    BJSnIbSHeBlEFWhB

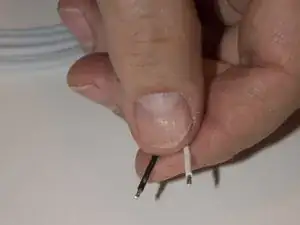

    • Preapplica un po' di saldatura al cavo di ricambio prima di saldarlo alla scheda. Quindi posiziona correttamente i capi sulla scheda e saldali.

    • Piegare i cavi a 90° semplifica l'installazione.

    you need to solder those new leads to the board - that part seems to be missing here

    deanholdren -

    Are you talking about the ends of the cable ?

    If it is the case, just strip a little bit no longer than 3/16" of an inch ( like 3mm ) you have to make sure it is not too long; you can see at the step 8, there is no room on the other side of the board.

    And heat it to apply soldering on it so it looks like the picture, it is easy to insert and it weld solidly.

    Pierre Merineau -

  9. wElmlgQiqniCFoHS

    • Con molta attenzione, rimetti il tutto all'interno della prima metà della scocca.

    • Gli spazi di manovra sono minimi!

    When I opened the charger, it turns out the white wire is attached to a connection on the PCB marked "Out +", but the black one is loose so I don't know where it used to be. There are two options next to where the white wire is, one marked "Out -" and the other "ID"; also slightly further back there's one marked "ADJ". Anyone know which of those the black wire is meant to go into?

    Sorry if this should be obvious, but I'm a bit of a noob... :}

    Rob -

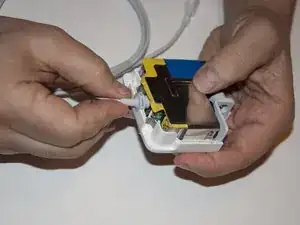

  10. ScXYmYpKkNbEJOet

    • Posiziona il passacavo nella posizione corretta nella scocca.

  11. 2VE4UinmInKOKYkX

    • Reinserisci correttamente le alette.

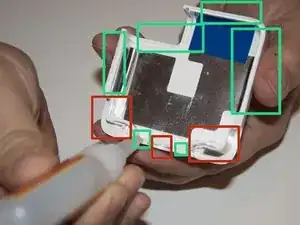

  12. Zy6uJ1CtXpLrPsJd

    • Applica la colla permanente alla scocca.

    • Evita la zona delle alette e del gommino.

    Eu uso uma cola B7000, nos nos telefones para que ela possa ser retirada com fio de cabelo no futuro

    Ricardo Deferrari -

    I used the B7000 glue, used in cell phones so that it can be taken off with the hair dryer in the future

    Ricardo Deferrari -

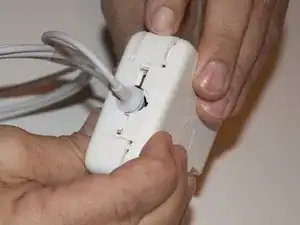

  13. gGr323INXdImeUu1
    gGr323INXdImeUu1
    FRq2CLXKbLCMBelN
    35LVTL5dVBFqhPFL

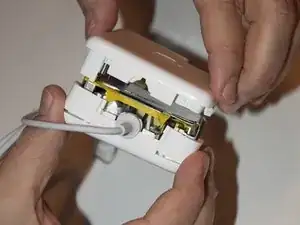

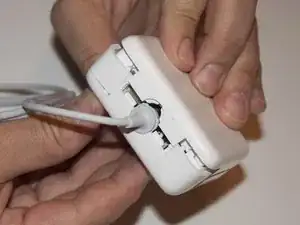

    • Consigliamo di indossare dei guanti per evitare di incollarsi le dita.

    • Mantieni le alette in posizione e chiudi la scocca.

    • Devi essere preciso: abbi pazienza!

    • Assicurati che le alette siano restate a posto.

    Be very careful with the back ends of the metal spring pieces for the winding flaps, where they are joined to the plastic pieces. It is very easy to bend the ends when placing the top back on, and extremely difficult to flatten them again once they're bent. Angling the cord end of the top piece in first, just a little bit, helps, but I ended up having to use a miniature awl to push them into position while closing things up.

    Martin Cooper -

  14. idUdpem66QDxZeZB
    idUdpem66QDxZeZB
    uAHGHSHnKRehEQL3

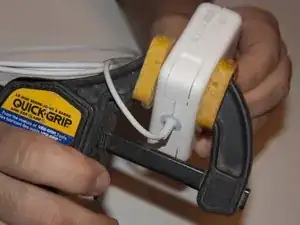

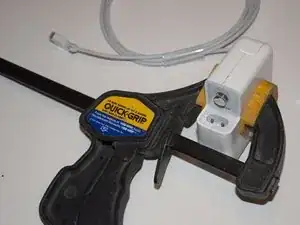

    • Usa la morsa per tenere insieme la scocca per qualche ora mentre la colla fa presa.

  15. dK3QbtxbboGabwH5

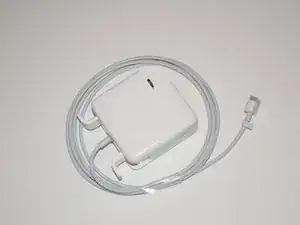

    • Come nuovo!

    Good articel.

    I just repaired the power adapter for my friend's MacBook and it's now working perfectly. The case cracking method is inspired! Never would have thought of using a pair of needle nose pliers that way. I hate that cliche about "thinking outside the box" but it truly applies in this case. Thanks.

    BTW,this articel is also very usefull.

    http://www.eachbattery.com/guide/how-to-...

    hewanyv557 -

    Just did this repair on my wife's MacBook a little while ago, but I only cracked the case open enough to pull put the cable and clip the wires at the strain relief. Then I soldered the new cable to those cable ends, added the shrink tubing, and re-sealed the case with superglue. It looks and works like new! Much easier than going to the board. I also held the ears in place with scotch tape so they wouldn't move while closing it up.

    John Lewis -

    I just fixed an 85W MagSafe 2 power adapter using this guide, and it worked great! Like John, I cheated a little and just clipped the wires on the old cable, soldered and heatshrink-ed the new leads to them, and jammed the extra wire in the case. Getting to the solder pads on my adapter would have required disassembling the device much more, and this method worked perfectly.

    Robert Bloom -

    Great tutorial!, I'm planning to clean the shell up as good as I can and sand paper it a bit to get that glossy finish back ?

    Oddvin Preinstad -

    Wenn schon, empfiehlt sich das neue Kabel mit weissen Schrumpfschläuche am Magsafe Stecker und an der andere Seite zu verstärken.

    michel.firholz -

    Question: Can you replace an older Magsafe cable with a new USB-C cable? Are the old AC adapters compatible power output to use with the new Macbooks?

    GR Graves -

Conclusione

Una volta eseguita la procedura, ripetila per tutti i tuoi amici vittime di un cavo difettoso ;-)
