Sostituzione codificatore ottico Logitech G27

Scritto Da: Grant Blake
  • Commenti: 54
Sostituzione codificatore ottico Logitech G27

Difficoltà

Moderato

Passi

19

Tempo Necessario

30 minuti

Introduzione

Se il tuo Logitech G27 non risponde correttamente, anche dopo averlo calibrato, potresti dover sostituire il suo codificatore ottico. il codificatore ottico è un piccolo dispositivo elettronico che trasforma la rotazione del volante in un segnale elettrico che il computer può capire. Non è troppo difficile da sostituire: ti serve solo molta pazienza poiché dovrai svitare un mucchio di viti! Assicurati che il tuo volante sua scollegato completamente prima di iniziare questa procedura.

  1. JFe3hZpcNcMwfMMY

    • Svita le sei viti grigie esagonali da 25 mm con una chiave a brugola da 4 mm.

    • Stai attento mentre sollevi il volante, in quanto ci sono dei cavi delicati collegati alla parte inferiore.

    • Solleva attentamente il volante, ma non scollegarlo dal resto del dispositivo.

    Fijar primero el volante en la mesa para evitar desperfectos.

    Alpc360 -

  2. wnfiUv2VBuSB31AK

    • Solleva attentamente il volante dal mozzo, scoprendo i cavi e la scheda PCB delle due manopole del cambio.

    Apoyar el volante con las piernas y sacar los tornillos.

    Alpc360 -

  3. NZhmVBB6Bqh3Wu2P

    • Svita le due viti argento che tengono ferma la scheda PCB nel volante con un cacciavite a croce Phillips #1.

  4. foUkt5y4AwJkc2ET

    • Rimuovi attentamente la scheda PCB dal mozzo del volante.

  5. Qtmlc6TkePtrVyam

    • Schiaccia e scollega attentamente il connettore largo a 7 pin sotto la scheda PCB.

    • Stai attento mentre scolleghi questo adattatore: cerca di non tirare dai cavi per evitare di danneggiarli. Invece, fai ondeggiare il connettore in plastica mentre lo tiri per rilasciarlo.

    These screws refused to go all the way back in for me, and one of them stripped completely. If this happens to you, you can get replacement screws that are shorter here - https://www.amazon.com/gp/product/B01MFA...

    This works for the G27, not sure about the G25 or any other wheels.

    Obviously the screws being shorter means the wheel isn't as strongly attached to the base in this direction, so if you have to do this remember not to put unnecessary stress on these screws by pulling the wheel straight off the base.

    SouthernPotato -

    bro i need new long cable i think and that connector or just replace the whole thing .. i put new grease, screw it more tight by the encoder so it woulnt go to the left .. wheel works verry nice tho all my buttons and shifter pedals wont work now tho the lights works dont know what to do now.. and now i kinda regreat opening it.. my wheel run so good now just these buttons are off not working at all and it kinda screws up midle of the game..

    Alexander -

    @alexdinpoik I’ve had the same problem when the 7 pin connectors blue and green cables broke off. First, only the blue one was broken which only took the led indicators gradual increase but all buttons were working then when i tried to plug in back, the green one broke off leading to none of the buttons working but the led indicators just working. Now i’ll try to fix it with iron soldering.

    Okan Akgül -

    okan can u pls share a video of you doing it? so i can do the “copy paste” hahah where can i buy cables and stuff i need for that? whats the name of these white connectors ? im new to this but share me a link to buy. i rather just try to fix it then buy a new wheel since its a great wheel compare to g29 that has bad software and the other wheels are to expensive. g27 cant be found in stores anymore neither and if im gonna buy one it has to be new haha hopefully u can share some knowlage thanks!

    Alexander -

    Where i can Buy the 7 pin cable for Main board please

    Ojilve jose -

    Hey guys!

    i broke the 7 pin cable anyone know where can is buy it? Thanks

    Richard Hajdu -

  6. FiRu5bFZLB5YBEuV

    • Puoi ora rimuovere del tutto il volante dal mozzo. Mettilo da parte finché non rimonti il volante.

    • Svita le tre viti argento da 37,5 mm più interne con un cacciavite a croce Phillips #2.

    • Rimuovi il mozzo del volante e spingi il connettore attraverso il centro del mozzo.

  7. hRAYY1mMrAVKZJFD

    • Puoi ora mettere da parte il mozzo e girare la copertura del volante per scoprire la parte inferiore.

    • Svita le otto viti argento da 15,9 mm tutto intorno sotto la copertura del volante con un cacciavite a croce Phillips #1.

  8. UidVkwPtGC2eJLMK

    • Ruta la copertura a testa in su e rimuovine la metà superiore, svelando la maggior parte dei componenti del volante.

    • Puoi mettere da parte la copertura del volante finché non lo rimonti.

    need two new black screes abouve the pcb board.. lost them need to know the size since the screws i replace it with was not exact..

    Alexander -

    Loosen the desk clamps before removing the housing, otherwise you risk breaking something. The housing should come off without having to use any force whatsoever.

    Oula Kuuva -

  9. AmPXsBqhnwifCPIb

    • Svita le quattro viti argento da 7,3 mm che fissano la scheda PCB verde alla copertura del motore con un cacciavite a croce Phillips #2.

    I’d do steps 9 and 10 in reverse order, the connectors are much easier to unplug while the board is secured in place.

    Oula Kuuva -

    For removing C-Clamps steps 9-13 are unnecessary.

    Etam -

  10. CyrTKTeAZ5fqJSPi

    • Scollega i tre connettori in plastica sulla parte sinistra della scheda PCB.

    • Scollega i due connettori in plastica sulla parte superiore della scheda PCB.

    • Scollega i tre connettori in plastica sulla parte destra della scheda PCB.

    • Tirare i connettori in plastica richiede parecchia forza, ma stai attento e non tirare direttamente sui cavi. Cerca di fare leva o tirare il maschio del connettore.

    • Se ti serva una leva aggiuntiva mentre scolleghi questi connettori, prova ad usare uno strumento di apertura in plastica.

    • Scollegare questi connettori permetterà un accesso più semplice alle quattro viti che fissano il supporto della scheda PCB alla copertura del motore.

    Some of the connectors have locks on them, I would recommend this as a two person job.

    Reuben Andrews -

    I didn't take them off :)

    Evaristo Rivieccio Vega -

    I messed up and broke the cables of the 5 Pin Connector on the right. Can anyone tell me what it’s called so I can buy replacement? The Rest of the cable is stuck in there so I can’t re-use it sadly.

    Felix Weschke -

  11. a4odqtXHQyqDcUbg

    • Rimuovi la scheda PCB dopo aver scollegato tutti i connettori in plastica.

    • Puoi ora metterla da parte.

  12. Hvf5BHMD5r3wZDec

    • Svita le due viti nere superiori da 12,3 mm con un cacciavite a croce Phillips #2.

    • Svita le due viti argento inferiori da 15,5 mm con un cacciavite a croce Phillips #1.

  13. q4XLbMAPFVVY2XSU
    q4XLbMAPFVVY2XSU
    EXbOLKj6XwlTA2Zp

    • Rimuovi il supporto della scheda PCB e il pezzo in plastica trasparente sottostante.

    • Mettili da parte finché non rimonti il volante.

  14. 2Z4ierAmxCqHyrnR
    2Z4ierAmxCqHyrnR
    I2tjrwJisDMVXVe2

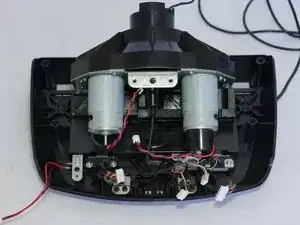

    • Dopo aver seguito la guida prerequisita, gira a testa in giù il tuo dispositivo.

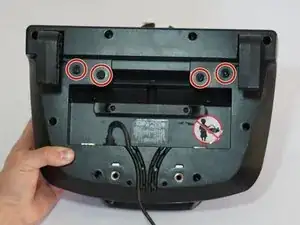

    • Svita le quattro viti più al centro dalla parte inferiore del dispositivo con un cacciavite a croce Phillips #1.

    • Gira il tuo dispositivo a testa in su e rimuovi del tutto la copertura del motore dal resto del dispositivo.

  15. ta5DsYr1cnKZe14M

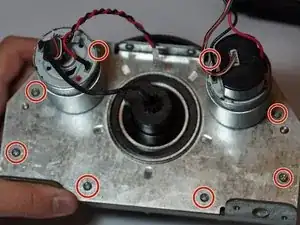

    • Svita le otto viti che fissano la copertura in metallo del motore alla plastica con un cacciavite a croce Phillips #1.

    • Rimuovi del tutto la copertura del motore dalla plastica.

    • In questa immagine, il codificatore ottico è attaccato all'estremità del motore a destra. Ha una copertura in plastica nera per proteggerlo.

    I found the repair easier to do with the motor still attached to the housing, step 15-16 unnecessary.

    Justus Cucuro -

  16. Pt3EqUQDIXNcFMWg

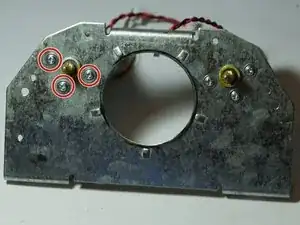

    • Gira il dispositivo e svita le tre viti che fissa il motore a sinistra alla protezione in metallo usando un cacciavite a croce Phillips #1.

    • Rimuovi del tutto il motore dalla protezione in metallo. Questo semplificherà lo spostamento quando sostituirai il codificatore ottico.

    I found the repair easier to do with the motor still attached to the housing, step 15-16 unnecessary.

    Justus Cucuro -

  17. mnTynYtePPYsRSnB
    mnTynYtePPYsRSnB
    YhREFmurM3RPhZ1n

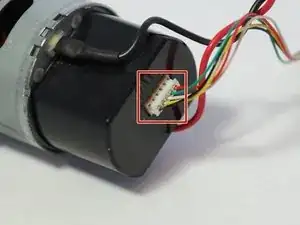

    • Scollega l'adattatore bianco a 5 pin dall'estremità del codificatore ottico.

    • Presta la stessa attenzione con questo adattatore come per tutti gli altri: non tirare direttamente sui cavi e fallo ondeggiare per scollegarlo.

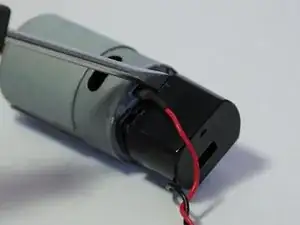

    • rimuovi la copertura in plastica facendo leva con un cacciavite o uno strumento di apertura in plastica.

    bonsoir ou acheter les conecteur blanc avec les 5 fils pour volant g27

    philippegontier30@free.fr -

    ou acheter les connecteur blanc avec les 5 fils de couleur du volant g27

    philippegontier30@free.fr -

  18. CTBhP1eigOuhUrkB

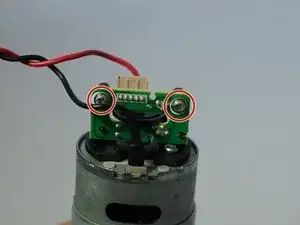

    • Svita le due viti argento da sotto il codificatore ottico con un cacciavite a croce Phillips #0 e la scheda sarà libera dal motore e pronta ad essere sostituita.

    • Stai attento a non piegare la luce o il ricevitore nero che sporgono dalla scheda. Se non si allineano, il tuo volante non sarà in grado di calibrarsi e sarà difficile riallinearli.

    my wheel wont calibrate and sometimes it spits out a “power surge on usb” error and my optical encoder is good, what do i do?

    Jackson Beers -

    I like this replacement. https://es.aliexpress.com/item/329959435...

    At first I didn't calibrate myself. I realised that it has to be fully inserted and satin with the end of the motorbike cylinder, as you can see in the seller's pictures. Then it did calibrate.

    Evaristo Rivieccio Vega -

  19. IVItp52pCnaFjsVT
    IVItp52pCnaFjsVT
    ybh1WMhfCDkDE6rA
    nIaREUgYBXt6Y5ex

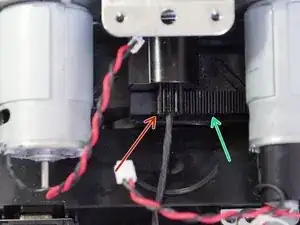

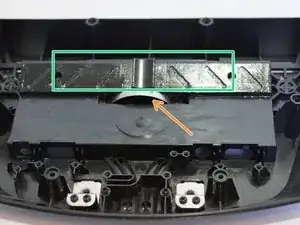

    • Durante il rimontaggio, mentre esegui questo passaggio, assicurati di allineare il fermo sull'ingranaggio del volante con il tracciato come mostrato nella seconda e terza immagine.

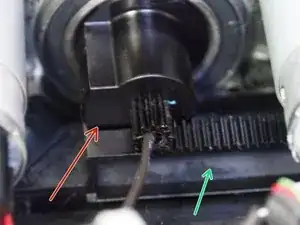

    • Assicurati anche che il gancio semicircolare in metallo sia posizionato correttamente nel suo alloggio.

    • Dopo aver posizionato il gancio in metallo nell'alloggio, posiziona l'ingranagio in plastica sopra il gancio e sul tracciato.

    Thank you ! ! ! !

    Patrick Ebensberger -

    Step 19: If you disassembled the wheel with the wheel in center position, you have to re-assemble it with the gear in center position, not as shown on the picture. At least this is what worked perfectly for me on the G27! While disassembling, I paid attention that everything keeps in center position.

    Philipp H -

    There is also small dot on the gear and small arrow on the track that represent the middle, I would say that this is more accurate method. (on G25)

    Vojtěch H -

    There is a Timing mark on the face of the linear gear and the round gear, line the timings dots together

    Justus Cucuro -

Conclusione

Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
