Sostituzione dell'SSD su un Microsoft Surface Pro 3

Scritto Da: Erik Snyder
  • Commenti: 34
Sostituzione dell'SSD su un Microsoft Surface Pro 3

Difficoltà

Molto difficile

Passi

9

Tempo Necessario

1 - 2 ore

Introduzione

Questa guida ti mostrerà come rimuovere in sicurezza l'SSD dal tuo Surface Pro 3. La guida inizia con la rimozione dello schermo e del digitizer, per passare poi direttamente all'SSD. Questa guida non include dettagli su come clonare l'SSD originale sul nuovo.

  1. IiLLy5RGqI2C21Fc
    IiLLy5RGqI2C21Fc
    JifXbRFswEYOyZhX

    • Prima di iniziare, scarica la batteria del Surface Pro sotto il 25%. Una batteria agli ioni di litio carica può prendere fuoco o esplodere se danneggiata accidentalmente durante la riparazione.

    • Lo schermo è attaccato al dispositivo con un adesivo resistente.

    • Per rimuovere lo schermo, prima ammorbidisci l'adesivo scaldandolo. Puoi usare una piastra riscaldante, un pistola termica o un iOpener. Se necessario, anche un asciugacapelli può funzionare.

    • Stai attento quando usi la pistola termica: il troppo calore può danneggiare permanentemente lo schermo e/o la batteria.

    • Scalda il perimetro del dispositivo uniformemente finché non è scottante al tocco, e cerca di mantenere questa temperatura per qualche minuto.

    I just replaced both my screen and battery. It took four hours and a couple of wrong turns but I was successful learning what to do next time. However, I am not sure I would do it again.



    It takes more heat than one imagines - all most too much and made me queasy fearing I was going to damage something. I would say it actually too hot and likely to damage something so be careful and do not prolong the removal. To get started I used a glass top warming/buffet heating tray set to about 200 degrees.  I turned the surface pro glass side down before turning it one so it would heat gradually with the tray. I let it heat for 15 minutes. In end, I am not sure it helped or not by starting this way.  This was not an easy removal so I shudder to think how worse it would have been if this didn’t help. I used a variable heat gun for the remaining steps. My screen was broken so breaking it further while nerve racking was not going to be catastrophic.

    michael jones -

    I attempted battery replacement, but during disassembly, i damaged the display by inserting the picks to far, and separating the display circuitry from the glass.

    I used a Milwaukee precision hot tool model 1400, which has only a fixed heat setting, but it worked perfectly to soften the adhesive.

    (I was very careful to heat the entire glass panel by playing the heat gun over the entire surface so that it would expand uniformly.

    Robert Gerlach -

    I just broke mine during the heating process as well…. The glue at the corner was so strong that I cant even slip a blade into the edge… Then when keep applying heat using a hair dryer at low tempreture the glass expanded too much and broke……

    C Y Wong -

    If you have never done this repair, YOU WILL SHATTER THE SCREEN! I've repaired dozens of these over the last several years for my client's and I still shatter them. It's a 98% probability that you will break the glass; it's very thin and shatters easily. Be prepared.

    Gregg Stanley -

  2. tP1SBUeGkGMfOjX5
    tP1SBUeGkGMfOjX5
    Hbta2bLf13RFqrbk

    • Usa una ventosa o un iSlack per sollevare il vetro fino a creare una piccola fessura tra il vetro e la scocca.

    • Se il tuo display è rotto la ventosa potrebbe non fare presa. Potrebbe aiutare coprire il display con del nastro adesivo. In alternativa, puoi usare della super colla per fissare la ventosa al display.

    • Infila attentamente un plettro nella fessura creata per tagliare l'adesivo.

    • Fai scorrere il plettro lungo i bordi laterali e inferiore del display per tagliare l'adesivo. Se necessario, riscalda ancora i bordi.

    • Procedi attentamente: il vetro è sottile e si romperà se farai troppa forza.

    • Le antenne WiFi sono incollate sotto il bordo superiore dello schermo (su entrambi i lati della fotocamera) e possono essere facilmente danneggiate. Presta maggiore attenzione quando separi il bordo superiore e scaldalo ulteriormente se necessario.

    Be very very careful!! Don’t cut yourself. Wear gloves.

    Vincent van Mens -

    Wear eye protection too!

    Zach -

  3. ITFJIC242QKNpVUA
    ITFJIC242QKNpVUA
    kOlisXUZbyYIkKPE
    hBFsBRIsH4VyHVeV

    • Continua a riscaldare le porzioni dello schermo con la pistola termica.

    • Mentre scaldi i bordi dello schermo, usa uno strumento di apertura e dei plettri per fare leva sullo schermo e tagliare l'adesivo.

    • Lo schermo è molto sottile e si può rompere facilmente. Stai attento se hai un vetro rotto.

    I used an inexpensive variable heat gun with a dial. It was perfect. My fixed temperature gun would have ruined it. There are two small vents on either side of the screen near the top. Start there and work down on each side. I didn’t have opening picks to keep the glass separated from the body. So, I used blank Cards Against Humanity I found lying around.

    I watched two popular videos. Neither helped and were no better than these instructions. In one video, the guy heats and smashes his way around the display with metal tool. Mistake! Don’t do this even if the screen is broken. This causes glass shards to go everywhere and will force you to replace the adhesive before installing a new screen. You can’t reuse adhesive if it is full of glass. Another video uses a heat gun one side at a time and simply sliding a pick along the edge working around the Surface. This didn’t work. The person had already removed the screen once before and started the second removal before the video.

    michael jones -

    CAUTION: if you insert the picks too far, you risk damaging the display (separating the glass from the display circuitry).

    The display circuitry is 14 mm from the side edges, 10 mm from the top edge, and 6 mm from the bottom edge.

    Robert Gerlach -

    thanks a lot for your comment

    philrillh -

  4. 2wnI62JYRjtwQyde
    2wnI62JYRjtwQyde
    XtSAtOnl55XIALpb

    • Solleva lo schermo controllando di non strappare alcun cavo.

    This guide misses a CRUCIAL NOTE on this step.

    On this step, from Picture 1 to Picture 2 the device is rotated so the Windows logo on the glass is actually on the left hand side.

    You *must* rotate the device otherwise you will risk damaging the cables, as it folds open like a book.

    Len Demby, Jr. -

    Pain in the ass! One has to wonder why they couldn’t use magnetic connections instead of this goo, black thing that even to replace is so %#*@ annoying to say the least! After trying to remove a broken screen I didn’t even use the adhesive strips. I used the ones I had there and to be frank it’s better since:

    a) I couldn’t get the new screen properly aligned and to fit to perfection even though the touch works flawlessly (w/ some adhesive tape on the top to hide the gaps) and

    b) who knows? you may as well need to reopen it again. Hopefully not.Hopefully it will be easier. Hopefully never again!!!

    P.S.:

    Iraklis -

  5. JZKTg6AfXimEjrtV
    JZKTg6AfXimEjrtV
    ZnmLaLSWKZwXLQbk

    • Svita le tre viti Torx T3 da 3 mm che fissano il connettore della batteria e scollegalo.

    • Stai attento a non perdere il connettore a ponte rettangolare appena sotto.

  6. iieXwVFQKStTJgx2
    iieXwVFQKStTJgx2
    FseWAjfVVlTtIElr
    EXtrTCBmBrFVHUF2

    • Svita la vite Torx T3 da 4 mm che fissa il cavo dello schermo.

    • Solleva il connettore per scollegare il cavo.

    • Stai attento a non perdere il connettore a ponte rettangolare appena sotto.

    It's always best to disconnect the battery before disconnecting the display cable. Ensuring there is no power to the device will also ensure you don't damage the backlight components when disconnecting the display. You should also make sure to reattach the display cable before reattaching the battery cable when putting it back together.

    KCrepairguy -

    There is also a tiny little board between the ribbon cable and motherboard. Be sure not to lose it!!! If you do the part is 1631 LCD Contact Shield Plate.

    Joseph Neilson -

    You’ll notice a spring on the back of your old screen. The new screens don’t have that spring so it will need to be transferred over by the heat gun trick.

    Thierry Plouchart -

    The instructions do not mention the bridge connectors under the connectors - tiny little rectangle boards with gold connector dots. There is one under the battery connector and under the display connector. It is sandwiched in between the board and the connector. You may not even notice the bridge connectors. In fact the pictures here with the cable connectors off are showing the bridge connectors under the cable connectors still lying on the motherboard. Go ahead and remove the bridge connectors with tweezers. These connectors are just lying on the motherboard and WILL FALL OFF getting lost without noticing it. The cable connectors do not work without the bridge connectors installed. Good news is the connectors are keyed and fit only one way.

    BTW: Both screws on the battery and display connector were T3’s and the same size.

    michael jones -

    Hi!. What’s the name of the band connector and what’s the name of the connector in both sides?

    Nicolás Rearte -

  7. Z1WlbuZDAgkKVFiW
    Z1WlbuZDAgkKVFiW
    QNjSjbRDTeirpNKk
    YFw1T6xydkRpWpj4

    • Afferra il cavo arancione collegato al connettore argento.

    • Tira delicatamente verso l'alto il cavo arancione finché il connettore si libera dalla presa.

    • Ora lo schermo è completamente scollegato.

    • Lo schermo di ricambio potrebbe non includere tutte le parti necessarie per l'installazione. Metti da parte le parti originali e trasferiscile sul nuovo schermo se necessario.

  8. pIs3smPvtDEMCrVp
    pIs3smPvtDEMCrVp
    WOppAZXHWYkiuLyP
    ZQUoWvSK21TNPyWV

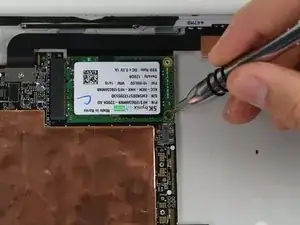

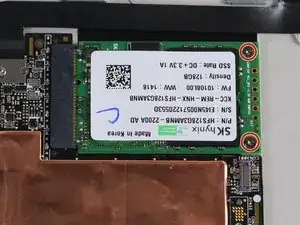

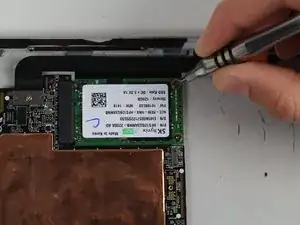

    • Svita le due viti Torx T3 da 4 mm che fissano l'SSD.

    Small correction - The screws securing the SSD are 4mm T5 Torx.

    Chris Ibold -

  9. qKviuYXApYjPgcVh
    qKviuYXApYjPgcVh
    BcLrAKvJ2pFWYqQM

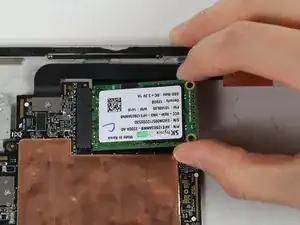

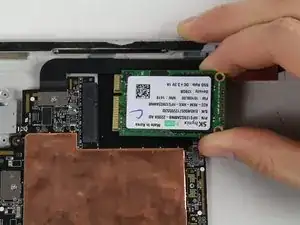

    • Delicatamente, solleva leggermente l'SSD e tiralo parallelamente alla scheda per rimuoverlo dal connettore nero.

Conclusione

Per rimontare il dispositivo, segui le istruzioni in ordine inverso.
